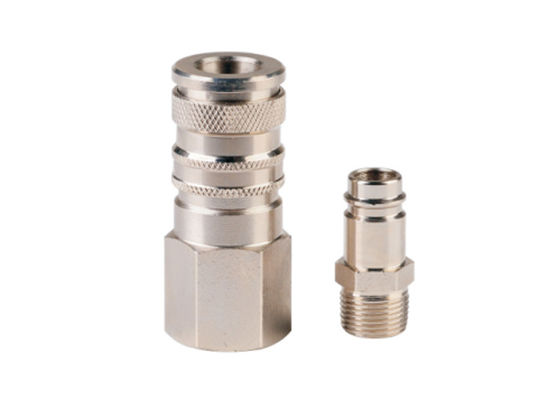

ISO B12 standard Type Pneumatic Quick Couplings Shut Off Quick Coupling
Flow Capacity: 3750 L/Min
Nominal flow dia: 11.5 mm
Material:
Socket:Nickel-plated brass/steel
Plug:Hardened zinc-plated steel
Temperature range(NBR):-20℃ to +100℃
Max.working pressure: 35 Bar
Standard and Change:
ISO6150B-1/2,MIL-C-4109-1/2
Rectus 37ka,40ka,Hansen 5000,Parker 20-1/2,30-1/2, Foster 50
Feature:
1.One-hand operated
2.High-flow capacity
3.Low connection force
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
