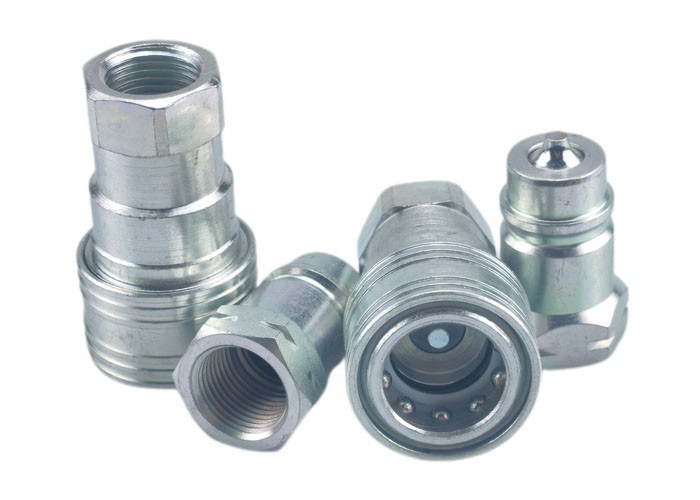

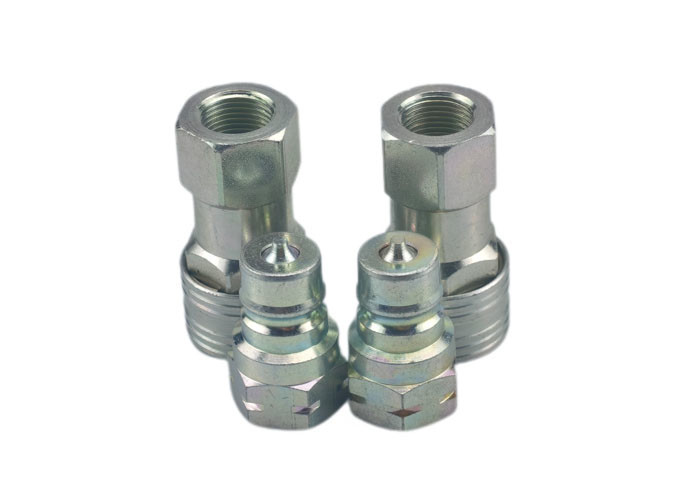

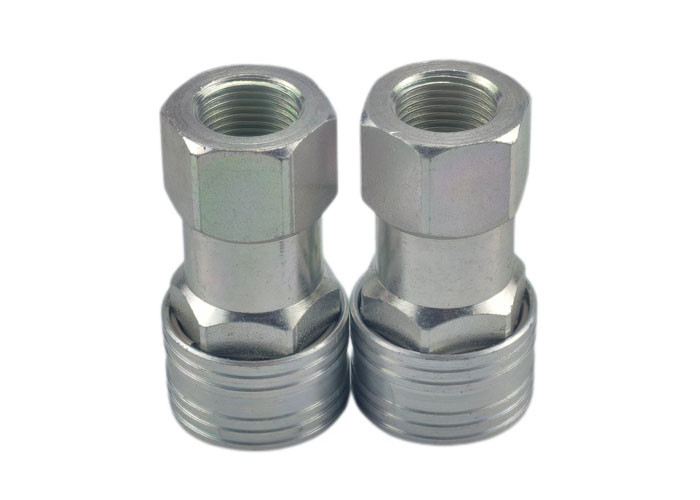

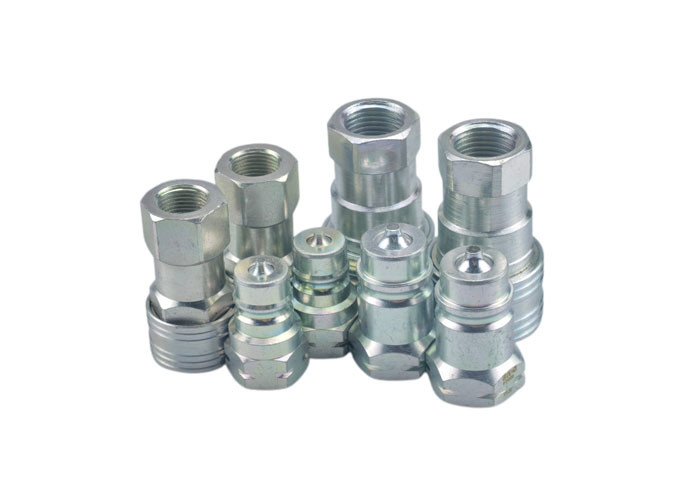

ISO7241A HANSEN HA 15000 Series Agricultural Quick Couplings

Negotiation
MOQ
Negotiation
Price
ISO7241A HANSEN HA 15000 Series Agricultural Quick Couplings
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Coupling
Material: Carbon Steel
Shape: Other
Connection: Female,Male
Technics: Machining
Size: 1/4-1
Thread: BSP/NPT
Product Name: Agricultural Quick Coupling
Highlight:

ISO 7241 A Agricultural Quick Couplings

,

NPT Agricultural Quick Couplings

,

BSP quick release air coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-8
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

ISO7241A Standard Compatible with HANSEN HA 15000 Series Agricultural Quick couplings





Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.





CB-8 Series couplings have nominal diameters no greater than 25 mm. they are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.



Standard Materials

  1. zinc-plated steel
  2. Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings
  2. Pull-to-connect couplings
  3. Ball-locking
  4. Meets the requirements of ISO 7241-A Series
  5. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.



ISO7241A HANSEN HA 15000 Series Agricultural Quick Couplings 0

Body Size PARTNO. Thread A B Across Flats
1/4" CB-S2S-10FN 1/4-18 1.89 0.98 0.75
1/4" CB-S2S-10FG 1/4-19 1.89 0.98 0.75
3/8" CB-S3S-10FN 3/8-18 2.21 1.18 0.91
3/8" CB-S3S-10FG 3/8-19 2.21 1.18 0.91
1/2" CB-S4S-10FN 1/2-14 2.64 1.49 1.06
1/2" CB-S4S-10FG 1/2-14 2.64 1.49 1.06
3/4" CB-S6S-10FN 3/4-14 3.25 1.88 1.38
3/4" CB-S6S-10FG 3/4-14 3.25 1.88 1.38
1" CB-S8S-10FN 1-11 3.86 2.08 1.62
1" CB-S8S-10FG 1-11 3.86 2.08 1.62

ISO7241A HANSEN HA 15000 Series Agricultural Quick Couplings 1

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2S-10FN 1/4-18 1.41 0.86 0.80 0.75
1/4" CB-P2S-10FG 1/4-19 1.41 0.86 0.80 0.75
3/8" CB-P3S-10FN 3/8-18 1.63 1.04 0.79 0.91
3/8" CB-P3S-10FG 3/8-19 1.63 1.04 0.79 0.91
1/2" CB-P4S-10FN 1/2-14 1.92 1.22 0.92 1.06
1/2" CB-P4S-10FG 1/2-14 1.92 1.22 0.92 1.06
3/4" CB-P6S-10FN 3/4-14 2.42 1.58 1.09 1.38
3/4" CB-P6S-10FG 3/4-14 2.42 1.58 1.09 1.38
1" CB-P8S-10FN 1-11 2.83 1.85 1.19 1.62
1" CB-P8S-10FG 1-11 2.83 1.85 1.19 1.62
