ISO 16028 Flat Face Hydraulic Fittings

Negotiation
MOQ
Negotiation
Price

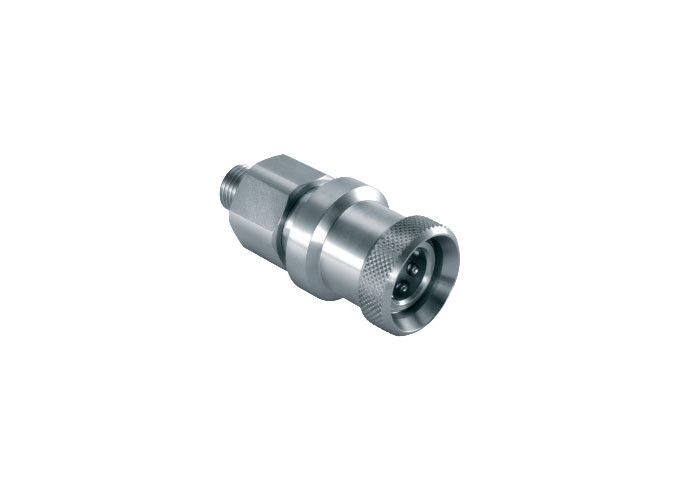

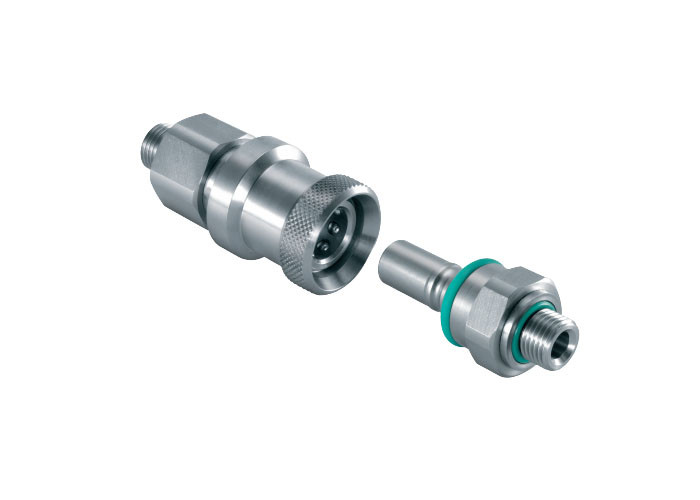

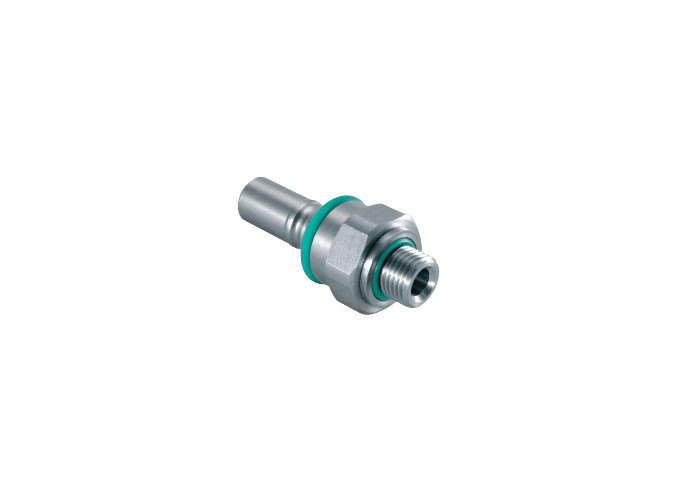

ISO 16028 Flat Face Hydraulic Fittings
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: ISO16028
Material: Stainless Steel
Thread: BSPP
Application: Rail Industry
Size: 1/4",3/8
Name: Flat Face Coupling
Compatible With: HANSEN RW Series
Seals: Viton
Highlight:

ISO 16028 Flat Face Hydraulic Fittings

,

BSPP Flat Face Hydraulic Fittings

,

0.25'' hydraulic couplers

Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-6
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Rail industry and all industrial applications stainless steel Flat Face Coupling



CB-6-B Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The CB-6-B Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.

Applications

Rail industry and all industrial applications



Standard Materials

  • stainless steel
  • Seals: Viton

Features

  1. Pull-to-connect coupling
  2. Double seal when connected
  3. External dust seal
  4. Excellent flow capacity
  5. Good vibration resistance
  6. Compatible with Hansen RW Series.

ISO 16028 Flat Face Hydraulic Fittings 0

Body Size PARTNO. Thread A B C HEX
1/4" CB-S2L-6MG-F G1/4 53,5 30 11 24
3/8" CB-S3L-6MG-F G3/8 67,5 35 12 29

ISO 16028 Flat Face Hydraulic Fittings 1

Body Size PARTNO. Thread D E F HEX
1/4" CB-P2L-6MG-F G1/4 46 12,5 11 24
3/8" CB-P3L-6MG-F G3/8 57 17 12 29
