Rail industry and all industrial applications stainless steel Flat Face Coupling

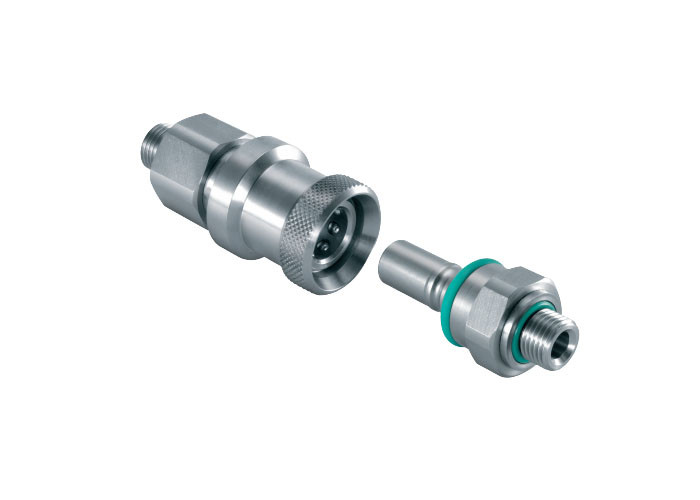

CB-6-B Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The CB-6-B Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.
Applications
Rail industry and all industrial applications
Standard Materials
Features

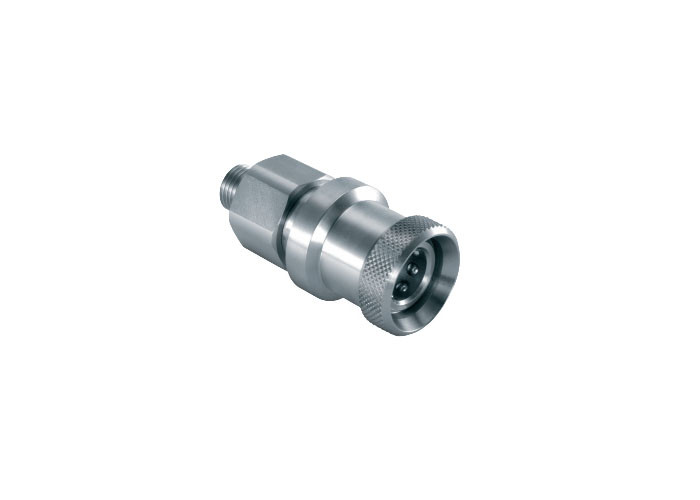

| Body Size | PARTNO. | Thread | A | B | C | HEX |
| 1/4" | CB-S2L-6MG-F | G1/4 | 53,5 | 30 | 11 | 24 |
| 3/8" | CB-S3L-6MG-F | G3/8 | 67,5 | 35 | 12 | 29 |

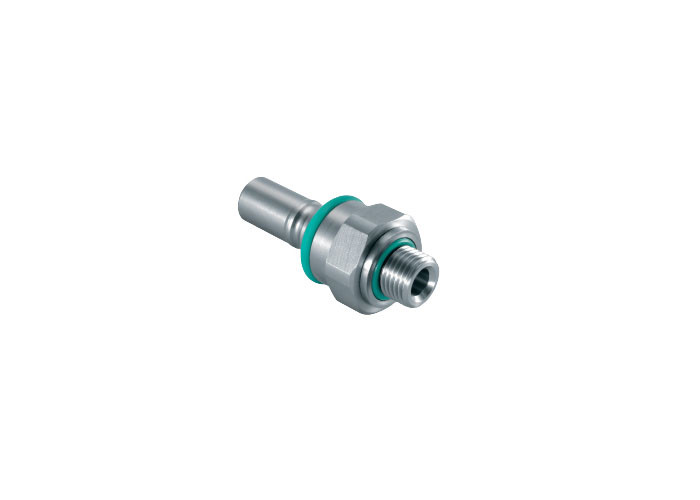

| Body Size | PARTNO. | Thread | D | E | F | HEX |
| 1/4" | CB-P2L-6MG-F | G1/4 | 46 | 12,5 | 11 | 24 |
| 3/8" | CB-P3L-6MG-F | G3/8 | 57 | 17 | 12 | 29 |
