3/4'' Steel quick disconnect coupling hydraulic applications double shut-off coupling

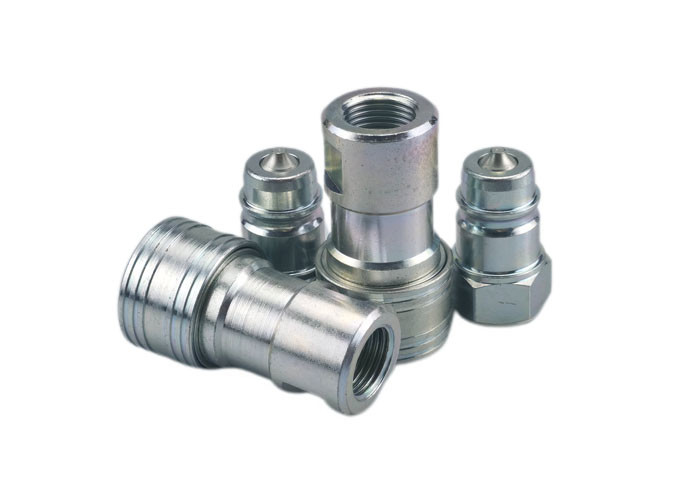

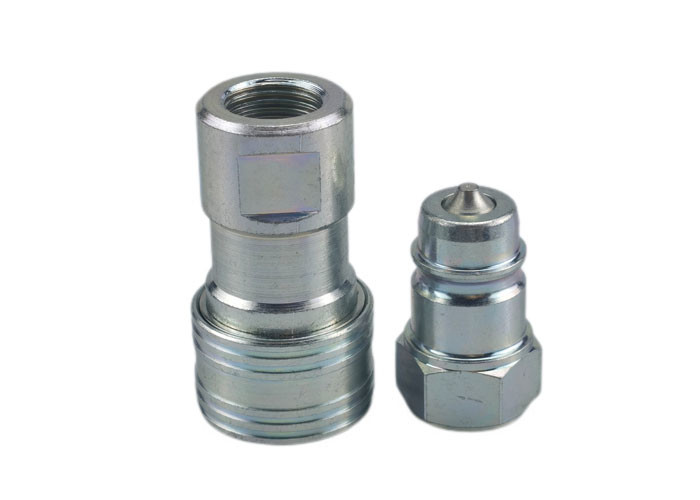

CB-7 Series steel quick disconnect coupling is a pull to connect double shut-off coupling. it remains as the series users prefer when it comes to severe hydraulic applications such as high pressure, pressure impulses, heavy mechanical loads and frequent connection and disconnection cycles. The unique sleeve lock option offers a reliable solution and benefit to the end user when safety is a concern.
Applications
• Automobile • Agriculture • Construction • Oil and Gas • Railway • Aeronautics • Food Processing • Iron and Steel Industry • Electronics • Laboratories • General Hydraulic Applications
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/8" | CB-S1S-7FN | 1/8-27 | 1.65 | 0.94 | 0.63 |
| 1/8" | CB-S1S-7FG | 1/8-28 | 1.65 | 0.94 | 0.63 |
| 1/4" | CB-S2S-7FN | 1/4-18 | 1.97 | 1.10 | 0.75 |
| 1/4" | CB-S2S-7FG | 1/4-19 | 1.97 | 1.10 | 0.75 |
| 3/8" | CB-S3S-7FN | 3/8-18 | 2.32 | 1.34 | 0.90 |
| 3/8" | CB-S3S-7FG | 3/8-19 | 2.32 | 1.34 | 0.90 |
| 1/2" | CB-S4S-7FN | 1/2-14 | 2.71 | 1.50 | 1.06 |
| 1/2" | CB-S4S-7FG | 1/2-14 | 2.71 | 1.50 | 1.06 |
| 3/4" | CB-S6S-7FN | 3/4-14 | 3.50 | 1.89 | 1.38 |
| 3/4" | CB-S6S-7FG | 3/4-14 | 3.50 | 1.89 | 1.38 |
| 1" | CB-S8S-7FN | 1-11 | 3.89 | 2.05 | 1.61 |
| 1" | CB-S8S-7FG | 1-11 | 3.89 | 2.05 | 1.61 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/8" | CB-P1S-7FN | 1/8-27 | 1.10 | 0.72 | 0.63 |
| 1/8" | CB-P1S-7FG | 1/8-28 | 1.10 | 0.72 | 0.63 |
| 1/4" | CB-P2S-7FN | 1/4-18 | 1.38 | 0.86 | 0.75 |
| 1/4" | CB-P2S-7FG | 1/4-19 | 1.38 | 0.86 | 0.75 |
| 3/8" | CB-P3S-7FN | 3/8-18 | 1.65 | 1.04 | 0.90 |
| 3/8" | CB-P3S-7FG | 3/8-19 | 1.65 | 1.04 | 0.90 |
| 1/2" | CB-P4S-7FN | 1/2-14 | 1.97 | 1.22 | 1.06 |
| 1/2" | CB-P4S-7FG | 1/2-14 | 1.97 | 1.22 | 1.06 |
| 3/4" | CB-P6S-7FN | 3/4-14 | 2.48 | 1.58 | 1.38 |
| 3/4" | CB-P6S-7FG | 3/4-14 | 2.48 | 1.58 | 1.38 |
| 1" | CB-P8S-7FN | 1-11 | 2.79 | 1.87 | 1.61 |
| 1" | CB-P8S-7FG | 1-11 | 2.79 | 1.87 | 1.61 |
