G3/8 Compatible with Hansen QA29000 Series Flat Face Coupling, flat face hydraulic quick couplers

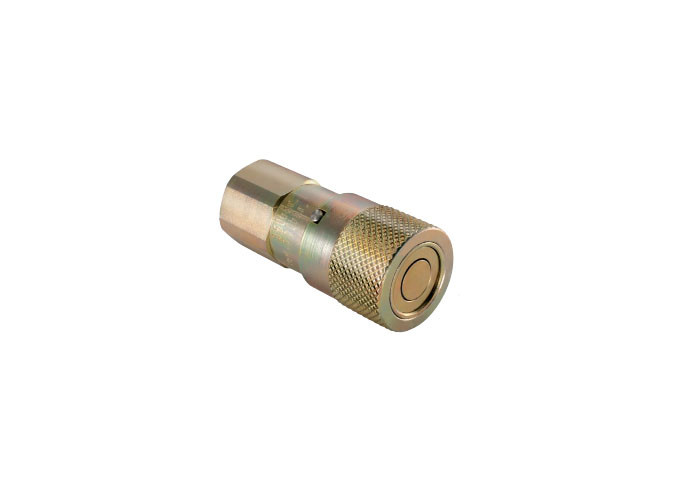

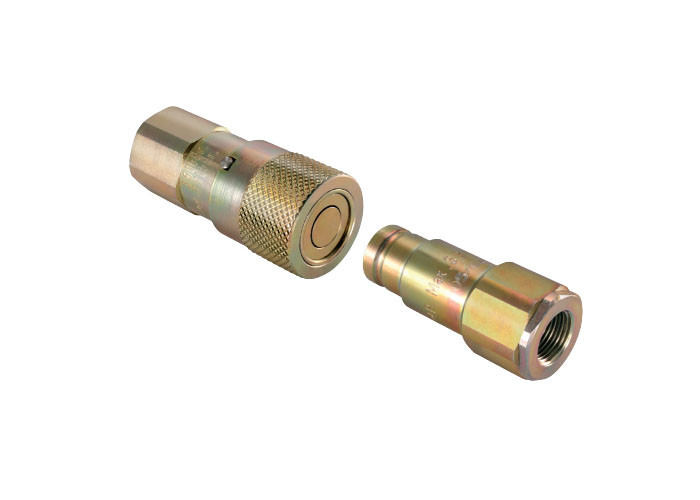

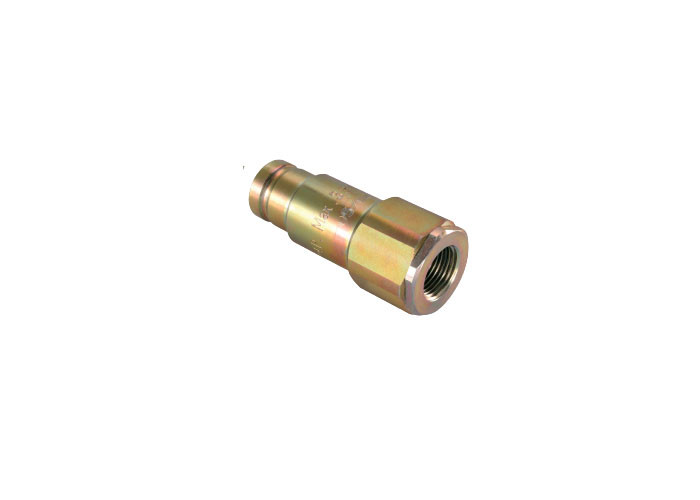

CB-6-A Series coupling is a flat face dry break or minimum spill hydraulic coupling. Body sizes are 1/4", 3/8", 3/4" and 1".
Applications
CB-6-A Series is used for quick change of hydraulic tools in construction , railway maintenance and mining industries. The ease of cleaning makes them ideal for use in these types of hostile environments. Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to help prevent dirt from entering the internal mechanism and thus avoid the faulty operation during connecting or disconnecting.
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-6FN-A | 1/4-18 | 2.07 | 1.06 | 0.91 |
| 1/4" | CB-S2S-6FG-A | 1/4-19 | 2.07 | 1.06 | 0.91 |
| 3/8" | CB-S3S-6FN-A | 3/8-18 | 2.81 | 1.26 | 1.06 |
| 3/8" | CB-S3S-6FG-A | 3/8-19 | 2.81 | 1.26 | 1.06 |
| 1/2" | CB-S4S-6FN-A | 1/2-14 | 2.81 | 1.26 | 1.06 |
| 1/2" | CB-S4S-6FG-A | 1/2-14 | 2.81 | 1.26 | 1.06 |
| 3/4" | CB-S6S-6FN-A | 3/4-14 | 3.11 | 1.50 | 1.38 |
| 3/4" | CB-S6S-6FG-A | 3/4-14 | 3.11 | 1.50 | 1.38 |
| 1" | CB-S8S-6FN-A | 1-11 | 3.29 | 1.89 | 1.81 |
| 1" | CB-S8S-6FG-A | 1-11 | 3.29 | 1.89 | 1.81 |
| Body Size | PARTNO. | Thread | C | D | E | HEX |
| 1/4" | CB-P2S-6FN-A | 1/4-18 | 2.11 | 0.98 | 1.71 | 0.91 |
| 1/4" | CB-P2S-6FG-A | 1/4-19 | 2.11 | 0.98 | 1.71 | 0.91 |
| 3/8" | CB-P3S-6FN-A | 3/8-18 | 2.64 | 1.30 | 2.03 | 1.18 |
| 3/8" | CB-P3S-6FG-A | 3/8-19 | 2.64 | 1.30 | 2.03 | 1.18 |
| 1/2" | CB-P4S-6FN-A | 1/2-14 | 2.76 | 1.30 | 2.15 | 1.18 |
| 1/2" | CB-P4S-6FG-A | 1/2-14 | 2.76 | 1.30 | 2.15 | 1.18 |
| 3/4" | CB-P6S-6FN-A | 3/4-14 | 2.83 | 1.56 | 2.13 | 1.38 |
| 3/4" | CB-P6S-6FG-A | 3/4-14 | 2.83 | 1.56 | 2.13 | 1.38 |
| 1" | CB-P8S-6FN-A | 1-11 | 3.21 | 1.97 | 2.38 | 1.81 |
| 1" | CB-P8S-6FG-A | 1-11 | 3.21 | 1.97 | 2.38 | 1.81 |
