Home /Products/Quick Connect Products/0.75'' Threaded Quick Connect

0.75'' Threaded Quick Connect

Negotiation
MOQ
Negotiation
Price
0.75'' Threaded Quick Connect
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Carbon Steel/ Stainless Steel
Rated Pressure: 3000
Thread: Female
Technics: Machinning
Size: 3/4, 1, 1-1/4
Temperature: -20℃to+120℃
Standard Seal Material: NBR
Compatible With: PARKER 6100 Series, FASTER FB Series, AEROQUIP 5100 Series, HANSEN 96 Series
Highlight:

0.75'' Threaded Quick Connect

,

IATF 16949 Threaded Quick Connect

,

NBR hydraulic quick disconnect fittings
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-5
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

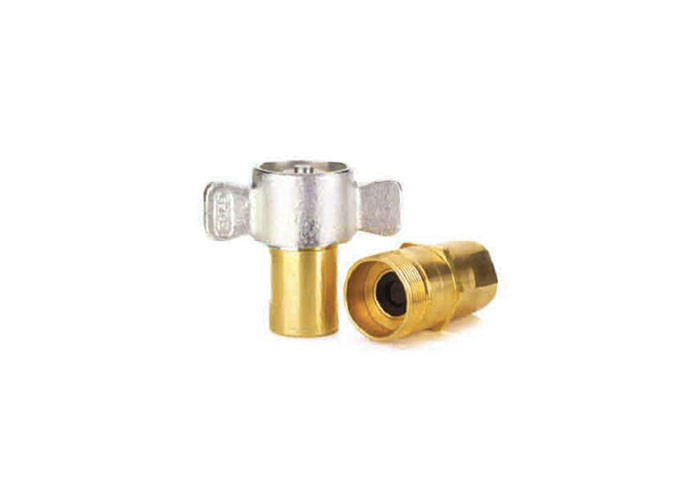

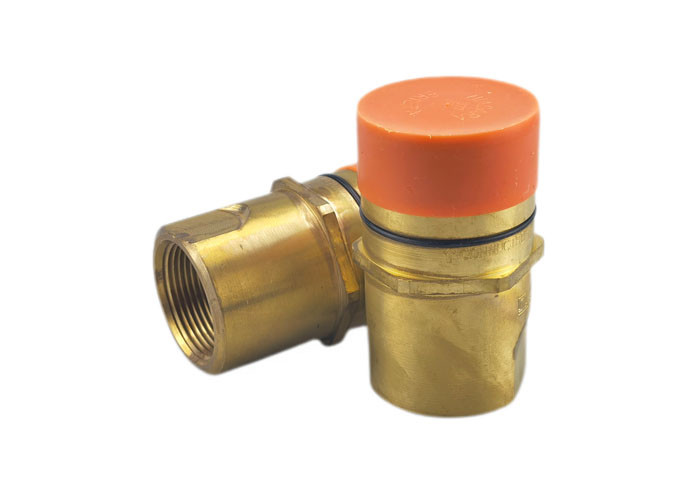

Compatible with HANSEN 96 series Brass Thread type hydraulic quick coupling



CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Applications needing connection or disconnection under pressure, with low fluid loss (flat-faced valves). Fuel industry, tractor-trailer connections



Standard Materials

  • Brass
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings, dry-break (flat-face valves)
  2. Wing-nut screw-to-connect mechanism
  3. Connection under pressure possible due to the bonded valve seals
  4. Minimum air inclusion during connection
  5. Interchanges with other makes of couplings with the same profile
  6. Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.

0.75'' Threaded Quick Connect 0

Body Size PARTNO. Thread A B HEX
3/4" CB-S6B-5FN-A 3/4-14 79 103 29,2
1" CB-S8B-5FN-A 1-11 1/2 96 113 36,6
1"1/4 CB-S10B-5FN-A 1-1/4 101 132 45,2

0.75'' Threaded Quick Connect 1

Body Size PARTNO. Thread C D HEX
3/4" CB-P6B-5FN-A 3/4-14 79 38 33,3
1" CB-P8B-5FN-A 1-11 1/2 90 47,5 39,6
1"1/4 CB-P10B-5FN-A 1-1/4 94 53,8 47,8
