ISO9001 Mining Equipment 1'' Threaded Quick Connect

Thread to Connect 5,000 psi Dry Break and High Impulse technology steel quick coupling

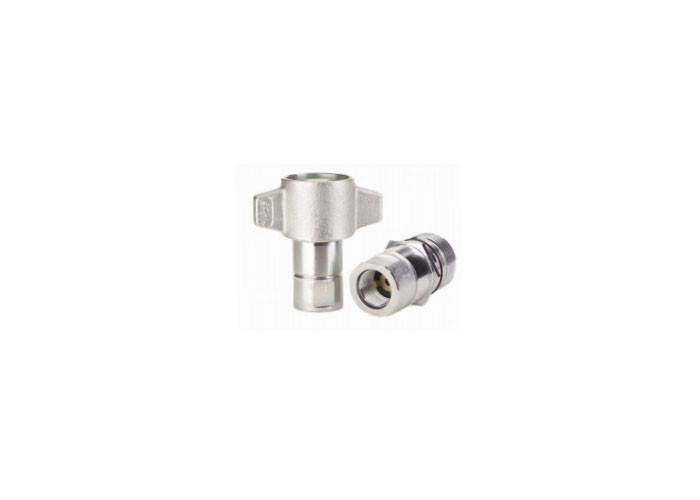

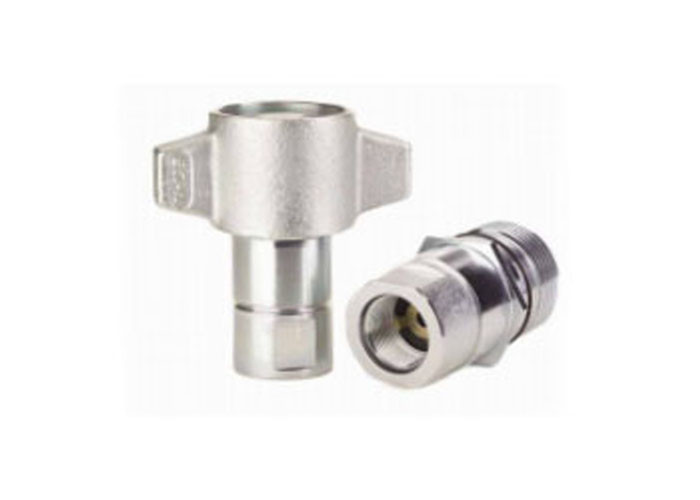

CB-5-G Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size Applications • Hydraulic and fluid transfer • Mining equipment

Features

1. Tubular valve and sleeve construction for low fluid loss and air inclusion
2. Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi
3. * back-up rings along with secondary metal-to-metal sealing contact provides high impulse capability up to 5,000 psi operating pressure
4. Acme threads prevent galling and provide ease of connection
5. Steel flange available for bulkhead mounting
6. Standard seal material: Buna-N
7. Standard body material: High resistance carbon steel with zinc trivalent plating
