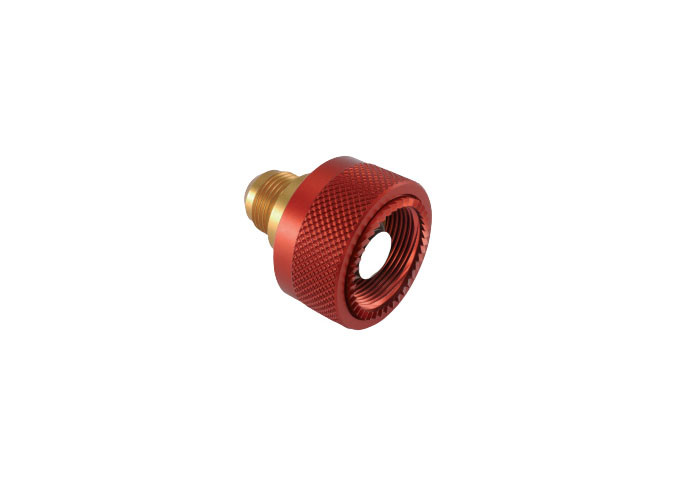

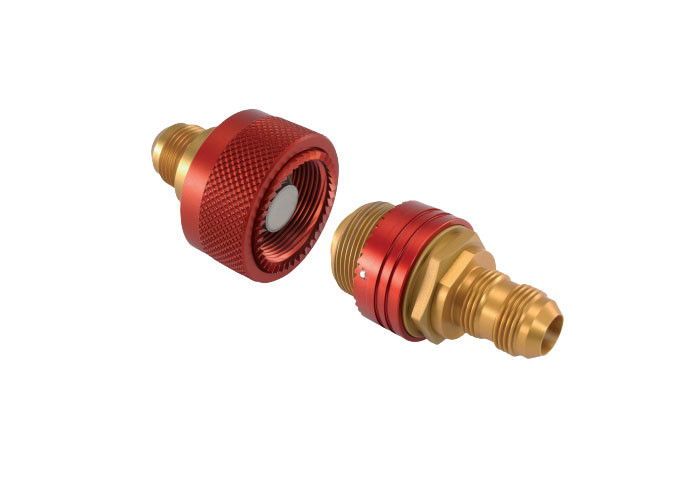

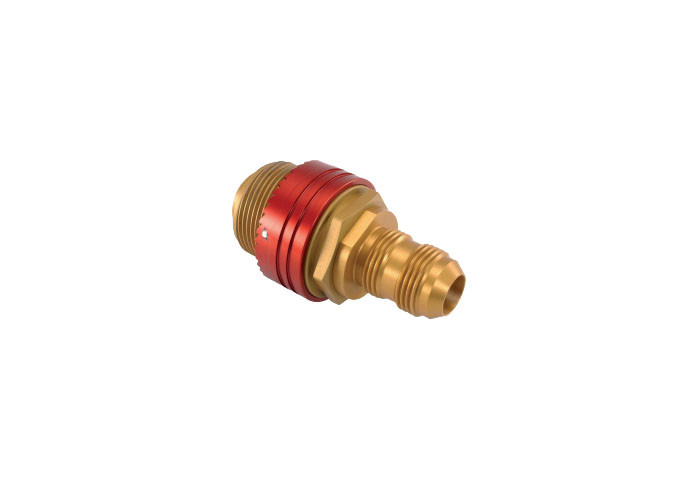

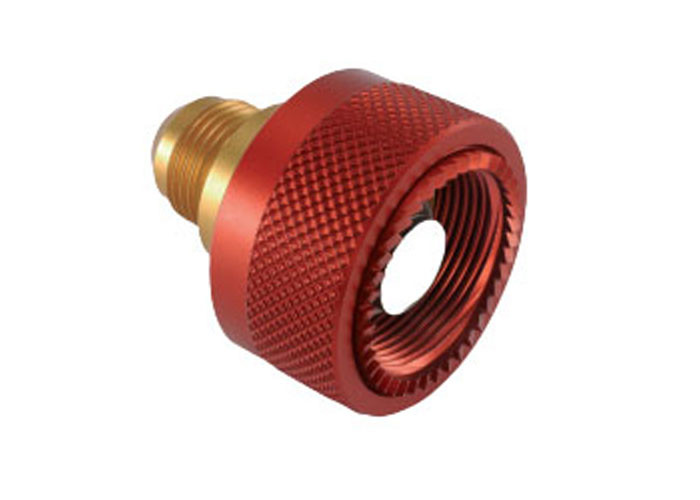

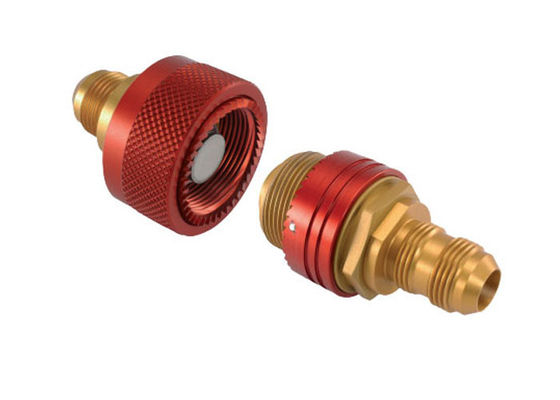

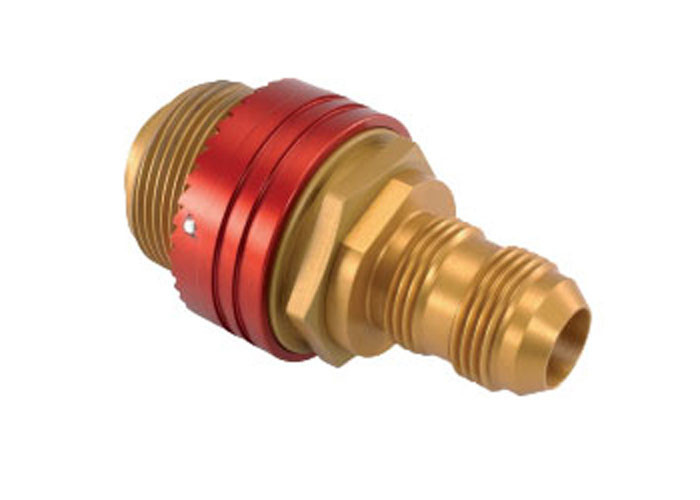

Aviation Industry Male 0.75 Inch Threaded Coupling

Negotiation
MOQ
Negotiation
Price
Aviation Industry Male 0.75 Inch Threaded Coupling
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium/Stainless Steel
Rated Pressure: 34.5 Mpa
Thread: Male
Technics: Machinning
Size: 1/4，3/4,1,1-1/2
Temperature: -20℃to+120℃
Standard Seal Material: NBR, Viton, EPDM
Compatible With: HANSEN HYDRAV Series
Highlight:

0.75'' Threaded Coupling

,

NBR Threaded Coupling

,

EPDM quick connect coupling
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-5
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Applications in aviation industry male threaded coupling Threaded Quick Connect



  1. Minimum inclusion of air on connection
  2. Minimum loss of fluid on disconnection
  3. Compatible with HANSEN HYDRAV series.

CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Mainly intended for the aviation industry, these couplings, give connections between test benches and the hydraulic systems of certain aircraft. They are equally useful where anti-unscrew safety requirements are needed.



Standard Materials

  • Aluminium/Stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings, dry-break
  2. Connection by fast-screw sleeve, with security feature giving a vibration-resistant coupling
  3. End connections to SAE AS 4395 standard

Aviation Industry Male 0.75 Inch Threaded Coupling 0

Body Size PARTNO. A B C HEX
1/4" CB-S2B-5MU-E 41 39 14 14
3/4" CB-S6B-5MU-E 49 60 22 33
1" CB-S8L-5MU-E 79 70 23 48
1"1/2 CB-S10B-5MU-E 91 80 28 54

Aviation Industry Male 0.75 Inch Threaded Coupling 1

Body Size PARTNO. D E F HEX
1/4" CB-P2B-5MU-E 35 25 14 29
3/4" CB-P6B-5MU-E 61 41 36 41
1" CB-P8L-5MU-E 73 60 23 54
1"1/2 CB-P10B-5MU-E 81 70 28 70
