Name: Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-5
Price: 500.00 USD
Availability: InStock

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Zinc-plated Steel

Rated Pressure: 5000

Locking Mechanism: Threaded

Technics: Machinning

Size: 3/4, 1, 1-1/4

Temperature: -20℃to+120℃

Standard Seal Material: NBR

Compatible With: HANSEN W-56000 Series

Highlight:

5000psi Threaded Quick Connect

0.75'' Threaded Quick Connect

Zinc hydraulic quick release coupling

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: carterberg

Certification: IATF16949

Model Number: CB-5

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 7-20 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000~20000 pc/month

Gallery

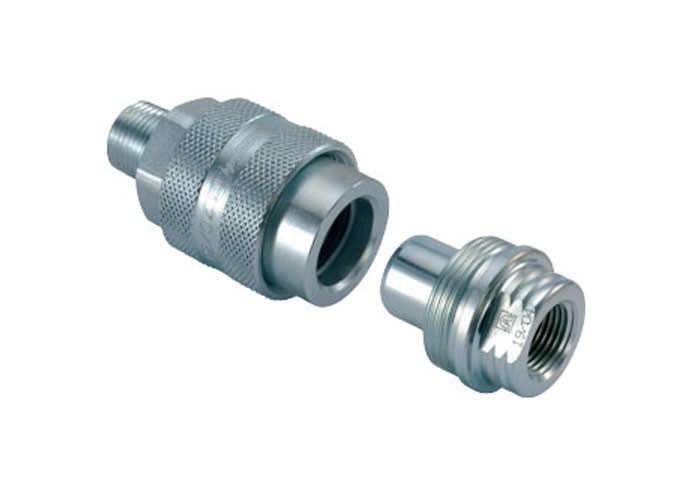

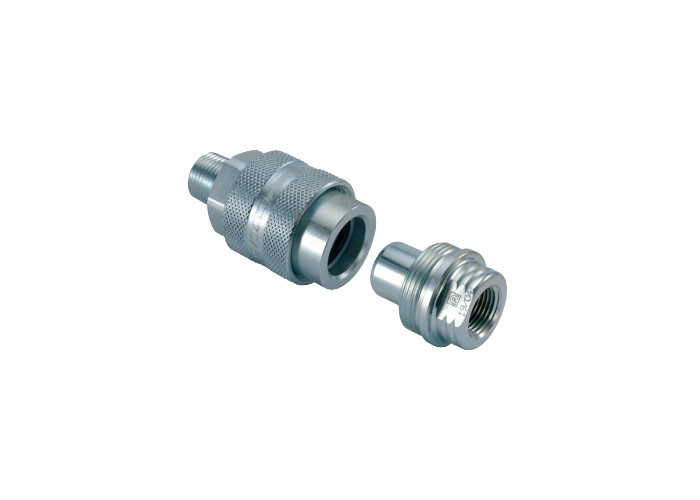

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling

Product Description

Hydraulic jacks, clamping systems, lifting and emergency release equipment applications Threaded Quick Connect

As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.

CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

Hydraulic jacks, clamping systems, lifting and emergency release equipment,

Standard Materials

Zinc-plated steel
Seals: NBR, Viton, EPDM

Features

Double shut-off couplings, with poppet or ball valving
Locking by screwing the socket sleeve-nut on to the male-threaded plug
Dust caps and plugs
Interchange with other makes of couplings with the same profile
Compatible with HANSEN W-56000 & HP3 series.

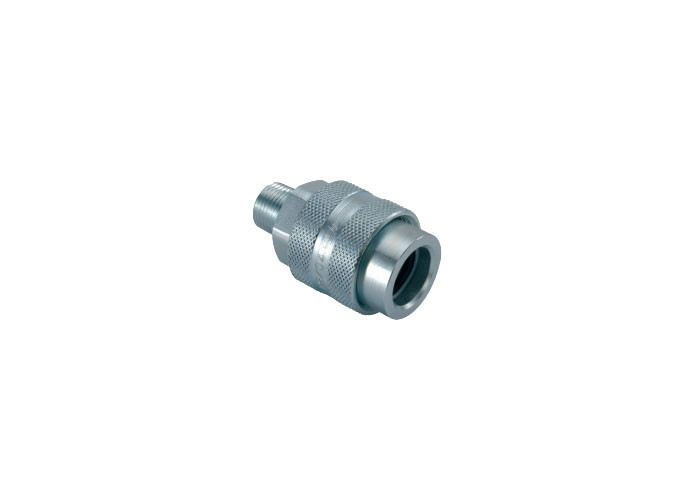

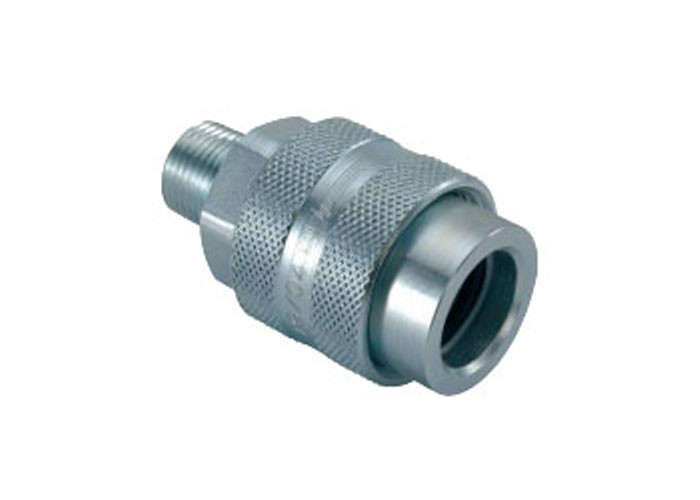

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling 0

Body Size	PARTNO.	Thread	A	B	HEX
1/4"	CB-S2S-5MN-C	1/4 NPT	60	28,5	22
3/8"	CB-S3S-5MN-C	3/8 NPT	70	35	27

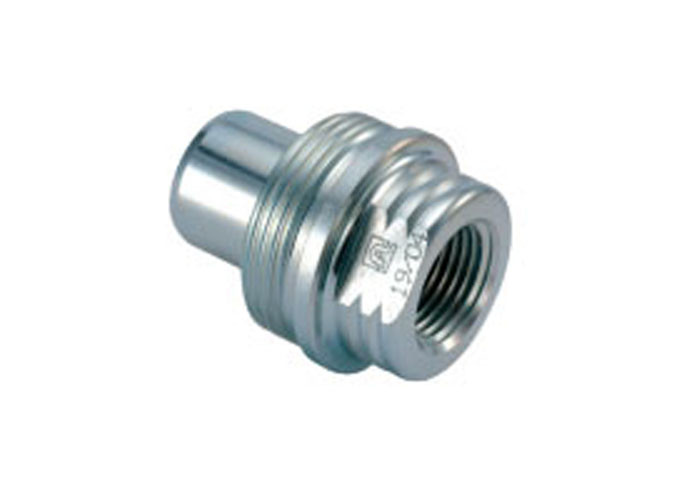

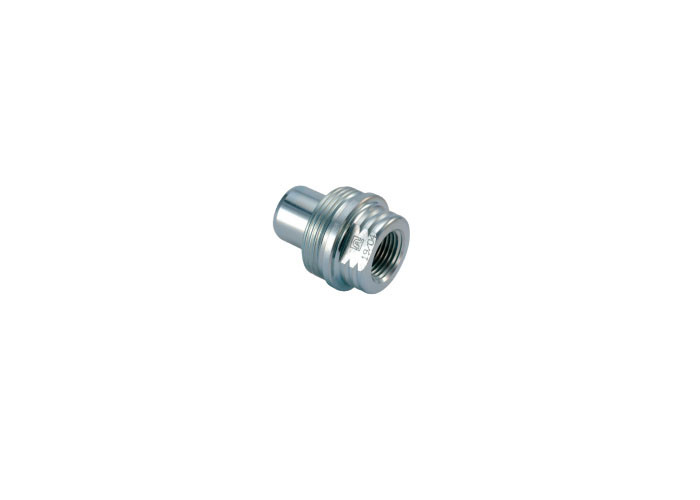

Clamping Systems Threaded Quick Connect , Hydraulic Quick Release Coupling 1

Body Size	PARTNO.	Thread	C	D	HEX
1/4"	CB-P2S-5MN-C	1/4 NPT	35	15,9	19
3/8"	CB-P3S-5MN-C	3/8 NPT	42	19	23
