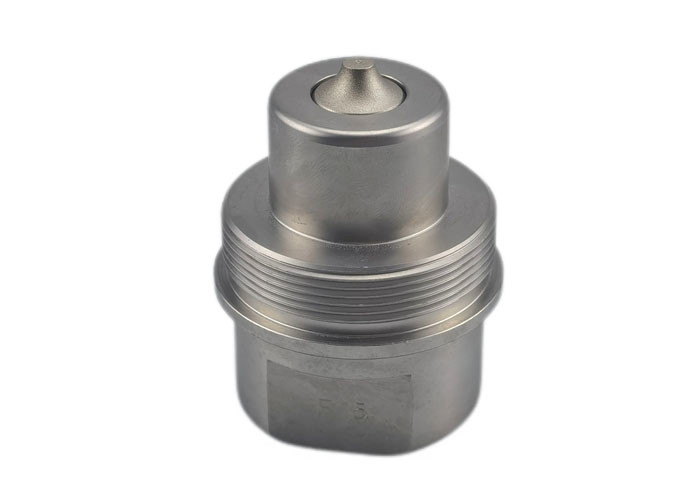

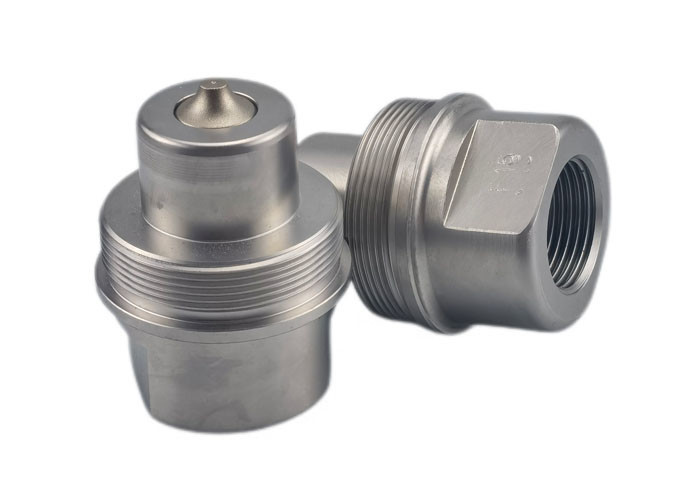

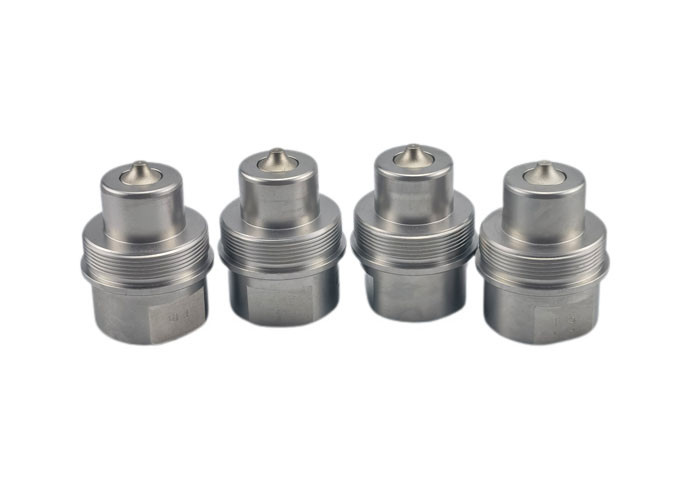

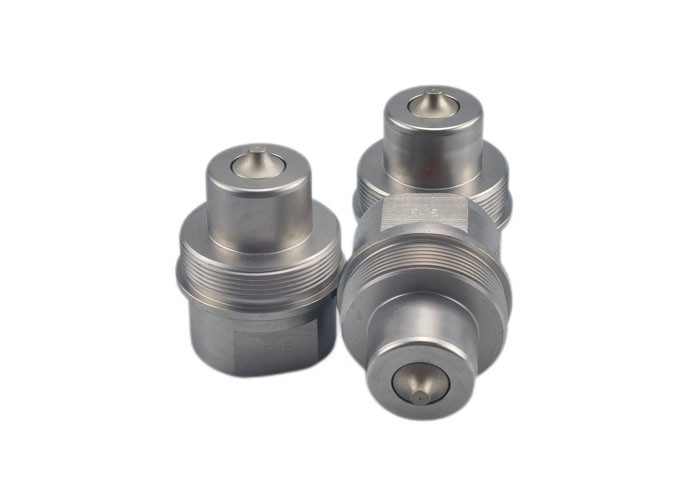

Stainless Steel Female Hydraulic Quick Connect Fittings

Thread locked type hydraulic quick coupling Threaded Quick Connect

Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module D1 of the European Pressure Equipment Directive 97/23 EC. They should not be used to convey volatile gases.

Applications

CB-5 Series couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

All industrial and severe applications.Public works, offshore, lifting equipment, systems subject to heavy mechanical loads, high pressures

Standard Materials

• zinc-plated steel, stainless steel
• Seals: NBR, Viton, EPDM

Features

1. Double shut-off couplings
2. Locking by screwing the socket sleeve-nut on to the male-threaded plug. This gives the coupling resistance to heavy mechanical demands (ram loads, hydraulic shocks, severe pulsating pressures, etc.).
3. Can be connected against residual pressure
4. Dust caps and plugs
5. Compatible with GROMELLE 6000 Series and HOLMBURY TGW series.
