Home /Products/Quick Connect Products/ISO5676 Ball Valves Type Hydraulic Quick Couplings NBR Seal Carbon Steel Material

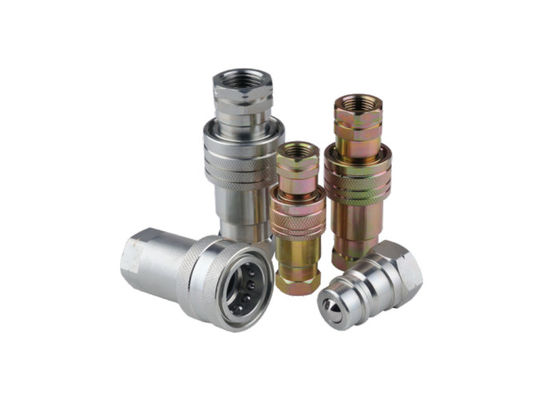

ISO5676 Ball Valves Type Hydraulic Quick Couplings NBR Seal Carbon Steel Material

Negotiation
MOQ
Negotiation
Price
ISO5676 Ball Valves Type Hydraulic Quick Couplings NBR Seal Carbon Steel Material
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Carbon Steel
Standard: ISO5676
Rated Pressure: 5000PSI
Rated Flow: 3GPM
Temperature: -20℃~80℃
Size: 1/4-1''
Seal Material: NBR
Compatible With: PARKER 4000 Series, FASTER NS/NV Series
Highlight:

ISO5676 Hydraulic Quick Couplings

,

Carbon Steel Hydraulic Quick Couplings

,

NBR Seal ISO 5675 Coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-4
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Conforms to the standard of ISO 5676 Ball Valves Type Hydraulic Quick Couplings

1. The Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment,hydraulic machinery and oil equipment and other required hydraulic applications.

2. Poppet valves are available to prevent uncoupled leakage .Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.

3. Hard chrome alloy balls are used for valving.It be loaded on the valve seat by the springs.

4. Critical parts are hardened for durability.

5 The series conforms to the standard of ISO5675.

6 Compatible with PARKER 4000 Series, FASTER NS/NV Series.





Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃ to +80℃
Standard seal material NBR



ISO5676 Ball Valves Type Hydraulic Quick Couplings NBR Seal Carbon Steel Material 0

ISO PARTNO. LS ￠ D HEX1 A T
6.3 CB-S2S-PK 55.5 27.6 22.2 12.5 G1/4 NPT1/4
10 CB-S3S-PK 60.5 34 24 13 G3/8 NPT3/8
12.5 CB-S4S-PK 68 38 27 16 G1/2 NPT1/2
20 CB-S6S-PK 83 47.5 35 18 G3/4 NPT3/4
20 CB-S6S-PK(E) 82.5 48.2 34 19 G3/4 NPT3/4
25 CB-S8S-PK 97.5 56.2 41 21 G1 NPT1



ISO5676 Ball Valves Type Hydraulic Quick Couplings NBR Seal Carbon Steel Material 1

ISO PARTNO. LP d C HEX2 A T
6.3 CB-P2S-PK 36 14.2 18.5 19 12.5 G1/4 NPT1/4
10 CB-P3S-PK 40 19 22 24 13 G3/8 NPT3/8
12.5 CB-P4S-PK 46 20.5 29 27 18 G1/2 NPT1/2
20 CB-P6S-PK 51 26.9 28.5 33.3 18 G3/4 NPT3/4
20 CB-P6S-PK(E) 53.5 28 32 34 19 G3/4 NPT3/4
25 CB-P8S-PK 64 31.3 34 41 21 G1" NPT1"





Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
