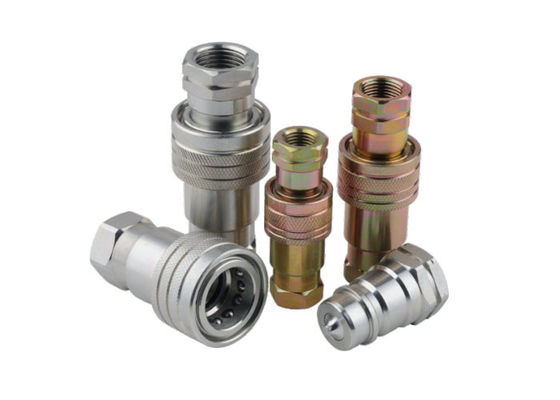

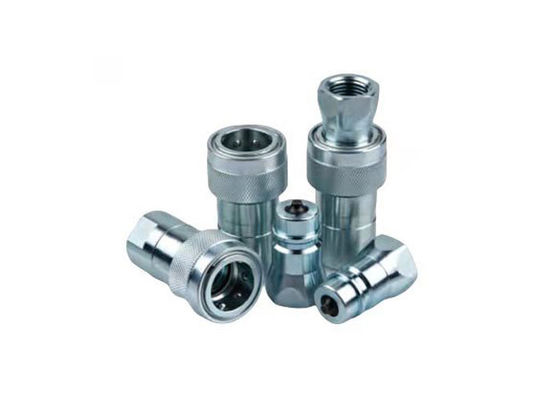

28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type

Negotiation
MOQ
Negotiation
Price
28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Carbon Steel
Standard: ISO5675
Rated Pressure: 3000PSI
Rated Flow: 28GPM
Temperature: -20℃~120℃
Size: 3/4
Seal Material: NBR
Compatible With: PARKER 4000 Series And FASTER NV/NS Series
Highlight:

3/4 Inch Hydraulic Hose Couplers

,

Close Type ISO 5675 Coupler

,

28GPM Hydraulic Steel Quick Coupling
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-4
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

PK 3/4INCH CLOSE TYPE HYDRAULIC QUICK COUPLING

Applications: The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.



Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5000 4000 4000 3000 3000
Rated Flow(GPM) 3 6 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR



Features

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6The series conforms to the standard of ISO5675.
7.Compatible with PARKER 4000 Series and FASTER NV/NS Series



28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type 0

ISO PARTNO. LS ￠ D HEX1 A T
6.3 CB-S2S-PK 55.5 27.6 22.2 12.5 G1/4 NPT1/4
10 CB-S3S-PK 60.5 34 24 13 G3/8 NPT3/8
12.5 CB-S4S-PK 68 38 27 16 G1/2 NPT1/2
20 CB-S6S-PK 83 47.5 35 18 G3/4 NPT3/4
20 CB-S6S-PK(E) 82.5 48.2 34 19 G3/4 NPT3/4
25 CB-S8S-PK 97.5 56.2 41 21 G1 NPT1




28GPM Hydraulic Quick ISO 5675 Coupler 3/4 Inch Close Type 1



ISO PARTNO. LP d C HEX2 A T
6.3 CB-P2S-PK 36 14.2 18.5 19 12.5 G1/4 NPT1/4
10 CB-P3S-PK 40 19 22 24 13 G3/8 NPT3/8
12.5 CB-P4S-PK 46 20.5 29 27 18 G1/2 NPT1/2
20 CB-P6S-PK 51 26.9 28.5 33.3 18 G3/4 NPT3/4
20 CB-P6S-PK(E) 53.5 28 32 34 19 G3/4 NPT3/4
25 CB-P8S-PK 64 31.3 34 41 21 G1" NPT1"
