Home /Products/Quick Connect Products/LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off

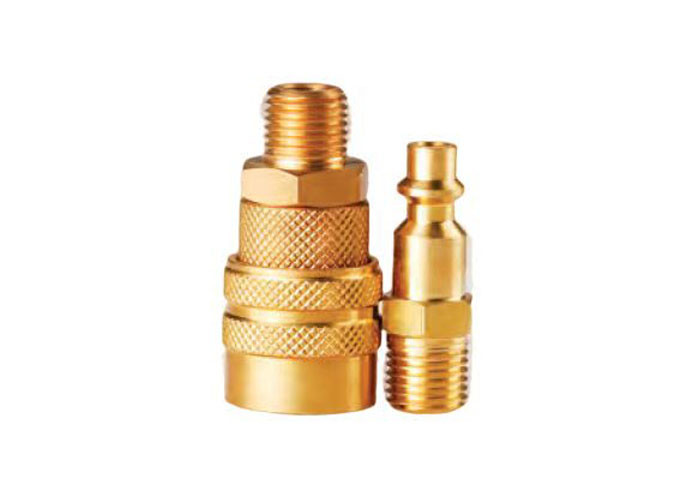

LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off

Negotiation
MOQ
Negotiation
Price
LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Simple Structure
Name: PNEUMATIC COUPLING
Material: Brass
Temperature: -20℃~120°C
Compatible: Parker 20 Series,CEJN 310 Series
Working Pressure: 1.0MPa
Application: Pneumatic Tools
Standard: ISO6150B
Highlight:

Pneumatic Brass Quick Coupling

,

LAM Brass Quick Connect Hose Fittings

,

Brass Pneumatic Female Quick Coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-3
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

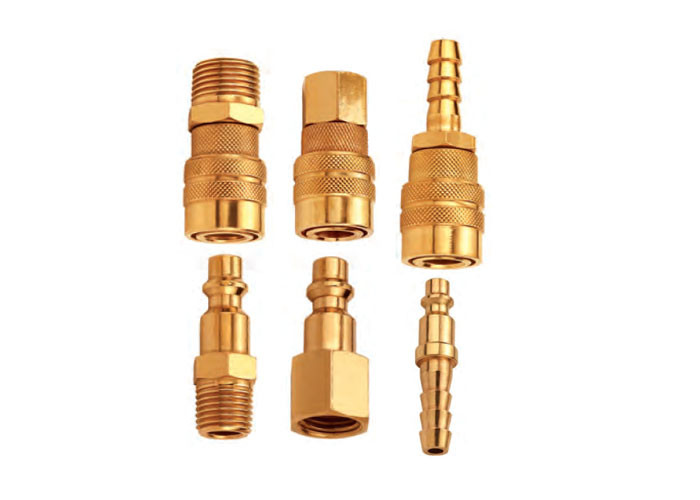

LAM AMERICAN TYPE SINGLE SHUT-OFF PNEUMATIC HIGH FLOW BRASS QUICK COUPLING



LAM AMERICAN TYPE SINGLE SHUT-OFF QUICK COUPLING(BRASS)
→ Features:ISO 6150B standard
→ Advantages:Simple structure, light weight, various of connections.
→ Application:pneumatic tools, automotive, compressed air, machinery equipments and compressor.
→ Interchangeability: Parker 20 series, Rectus 23KA series, Hansen 3000 series, CEJN 310 series.
→ Working Pressure:1.0 Mpa.
→ Working Temperature: -20℃ to +120℃.




LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 0

PARTNO. LS ￠D HEX1 A T
LAM-02SM 51 25 19 12 1/4
LAM-03SM 51 25 19 13 3/8
LAM-04SM 53 25 22 14 1/2





LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 1

PARTNO. LS ￠D HEX1 A T
LAM-02SF 49.5 25 19 12 1/4
LAM-03SF 49.5 25 19 13 3/8
LAM-04SF 49.5 25 24 15 1/2




LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 2

PARTNO. LS ￠D HEX1 A T
LAM-02SH 66 25 19 28 9
LAM-03SH 68 25 19 30 10.5
LAM-04SH 68 25 19 30 13





LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 3

PARTNO. LP C HEX2 A T d
LAM-02PM 42 24 14 13 1/4 5
LAM-03PM 42 24 17 13 3/8 5
LAM-04PM 44 24 22 14 1/2 5




LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 4

PARTNO. LP C HEX2 A T d
LAM-02PF 39 24 17 12 1/4 5
LAM-03PF 40 24 19 13 3/8 5
LAM-04PF 44 24 24 16 1/2 5





LAM Pneumatic Brass Quick Coupling High Flow Single Shut Off 5

PARTNO. LP C CP A T d
LAM-02PH 59 24 19 30 9 5
LAM-03PH 59 24 19 30 10.5 5
LAM-04PH 59 24 19 30 13 5





Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
