Name: 1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-3
Price: 500.00 USD
Availability: InStock

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Brass Coupler

Material: Brass

Connection: Female/Male

Size: 1/4' ~ 1/2'

Temperature: -20~120°C

Compatible: CEJN 320 Series

Working Pressure: 1.6MPa

Standard: European

Highlight:

Semi Automatic Brass Pneumatic Quick Coupling

Brass Hydraulic Quick Coupler

1.6MPa Brass Hose Quick Connect

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: carterberg

Certification: IATF16949

Model Number: CB-3

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 7-20 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000~20000 pc/month

Gallery

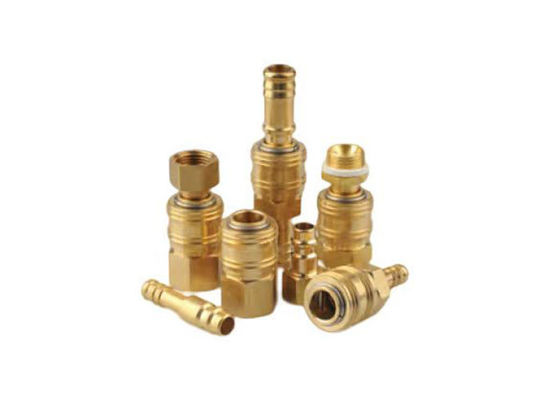

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type

Product Description

Single-handed and semi-automatic type Eurpean standard Brass quick couplings

CLOSE TYPE PNEUMATIC QUICK COUPLING(BRASS)
→ Features: Valid diameter 7.6mm,Eurpean standard.
→ Advantages: single hand operation,steel valve locking system.
→ Application: pneumatic tools, automotive,machinery equipment.
→ Interchangeability: CEJN 320 Series,Rectus 25KA and 26KA Series
→ Working Pressure:1.6Mpa.
→ Working Temperature: -20℃ to +120℃.

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 0

PART NO.	LS	D	HEX1	A	T	d
CB-26-02SM	42	24.8	22	9	G 1/4	Φ 7.8
CB-26-03SM	42	24.8	22	9	G 3/8	Φ 10
CB-26-04SM	45	24.8	22	12	G 1/2	Φ 10

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 1

PART NO.	LP	C	HEX2	A	T	d
CB-26-02PM	33	20	17	9	G 1/4	Φ 7.8
CB-26-03PM	33	20	19	9	G 3/8	Φ 7.8
CB-26-04PM	38	20	24	12	G 1/2	Φ 7.8

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 2

PART NO.	LP	C	HEX2	A	T	d
CB-26-02SF	41.2	24.8	22	10	G 1/4	Φ 10
CB-26-03SF	41.2	24.8	22	10	G 3/8	Φ 10
CB-26-04SF	44.2	24.8	24	12	G 1/2	Φ 10

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 3

PART NO.	LP	C	HEX2	A	T	d
CB-26-02PF	33	20	17	9	G 1/4	Φ 7.8
CB-26-03PF	32	20	19	9	G 3/8	Φ 7.8
CB-26-04PF	35	20	24	12	G 1/2	Φ 7.8

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 4

PART NO.	LS	D	HEX1	A	T	d
CB-26-02SH	58	24.8	21	25	7.5	Φ 4
CB-26-02SH	58	24.8	21	25	9.5	Φ 6
CB-26-03SH	58	24.8	21	25	11.5	Φ 7.8
CB-26-04SH	58	24.8	21	25	14.5	Φ 10

1.6MPa Single Handed Brass Quick Couplings Semi Automatic Type 5

PART NO.	LS	D	CP	A	T	d
CB-26-02PH	48	20	12	25	7.5	Φ 7.8
CB-26-02PH	48	20	12	25	9.5	Φ 7.8
CB-26-03PH	48	20	12	25	11.5	Φ 7.8
CB-26-04PH	48	20	15	25	14.5	Φ 7.8
