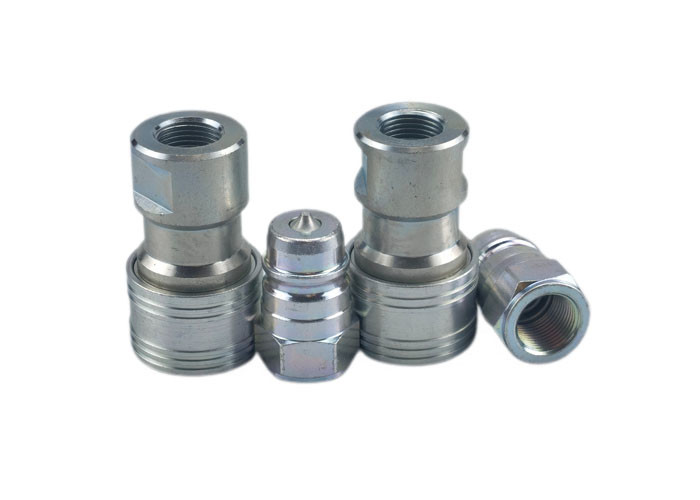

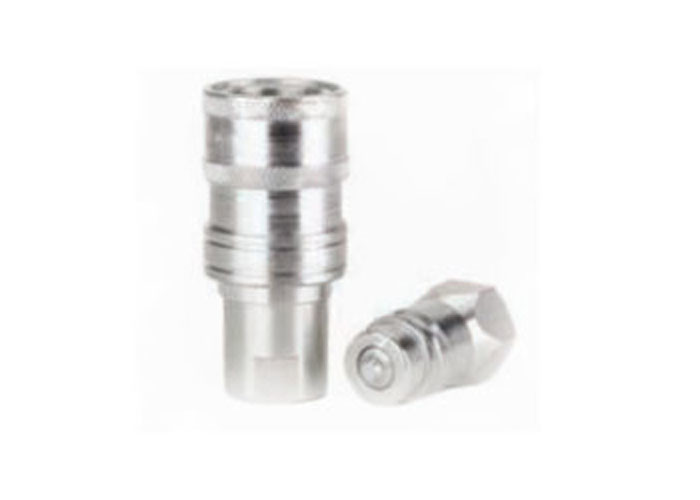

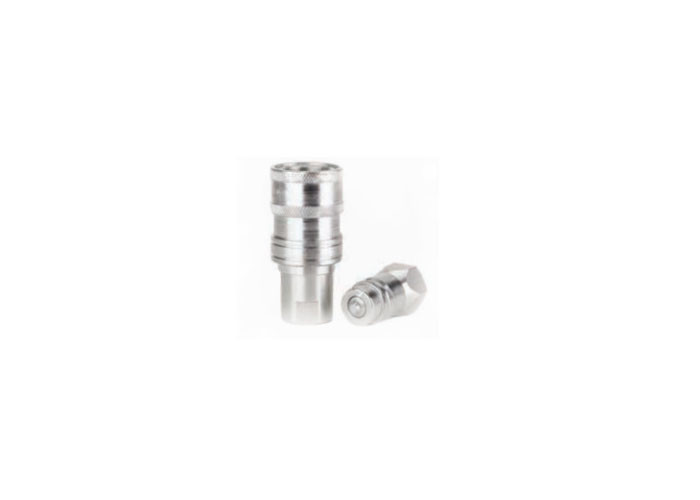

Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler

Negotiation
MOQ
Negotiation
Price
Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Zinc-plated Steel
Type: Coupling
Pressure: 12000psi
Application: Agricultural Equipment
Name: Hydraulic Coupling
Seal Material:: NBR
Interchanges With: ISO 5675
Size: 5/8
Highlight:

12000psi ISO 5675 Coupler

,

NBR ISO 5675 Coupler

,

3000PSI hydraulic couplers
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-2
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Interchanges with ISO 5675 plug/male tips maximum operating pressure is 3,000 psi Hydraulic Quick Coupling



CB-4 Series coupling incorporates special valving allowing connection to male half under pressure. The maximum operating pressure is 3,000 psi. Contains an over travel, selfsealing poppet valve construction for connecting to a pressurized male tip. Applications require that the tractor control valve be actuated to open the flow path and to equalize the pressure.



Applications & Markets • Hydraulic fluid transfer • Agricultural equipment



Features

  1. Push-to-connect for one hand operation when sleeve is mounted
  2. Interchanges with ISO 5675 plug/male tips
  3. Retaining ring groove on socket/female half for bulkhead and breakaway frame mounting
  4. Standard seal material: Buna-N
  5. Standard body material: High resistance carbon steel with zinc trivalent plating

Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler 0

Body Size PARTNO. Thread A B Hex
1/4" CB-S2S-4FN 1/4-18 53.5 27.6 19
1/4" CB-S2S-4FG 1/4-19 53.5 27.6 19
3/8" CB-S3S-4FN 3/8-18 63 34 24
3/8" CB-S3S-4FG 3/8-19 63 34 24
1/2" CB-S4S-4FN 1/2-14 66.3 38.6 27
1/2" CB-S4S-4FG 1/2-14 66.3 38.6 27
3/4" CB-S6S-4FN 3/4-14 82.5 48.2 34
3/4" CB-S6S-4FG 3/4-14 82.5 48.2 34
1" CB-S8S-4FN 1-11 96.5 56 41
1" CB-S8S-4FG 1-11 96.5 56 41


Hydraulic Zinc Plated Steel 3000PSI ISO 5675 Coupler 1



Body Size PARTNO. Thread C D E HEX
1/4" CB-P2S-4FN 1/4-18 18.5 12.5 36 19
1/4" CB-P2S-4FG 1/4-19 18.5 12.5 36 19
3/8" CB-P3S-4FN 3/8-18 22 13 40 24
3/8" CB-P3S-4FG 3/8-19 22 13 40 24
1/2" CB-P4S-4FN 1/2-14 27 16 43.5 27
1/2" CB-P4S-4FG 1/2-14 27 16 43.5 27
3/4" CB-P6S-4FN 3/4-14 32 19 53.5 34
3/4" CB-P6S-4FG 3/4-14 32 19 53.5 34
1" CB-P8S-4FN 1-11 38 21 63 41
1" CB-P8S-4FG 1-11 38 21 63 41





Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
