4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers

Negotiation
MOQ
Negotiation
Price
4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Standard: ISO5675
Size: 3/8, 1/2, 3/4
Rated Pressure: 4000
Rated Flow: 12
Temperature: -20to+120
Applications: Hydraulic
Compatible With: PAPKER 4250 Series, FASTER CPV-CNV Series
Highlight:

0.75'' ISO 5675 Couplers

,

4000PSI ISO 5675 Couplers

,

IATF16949 iso coupling
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-4
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

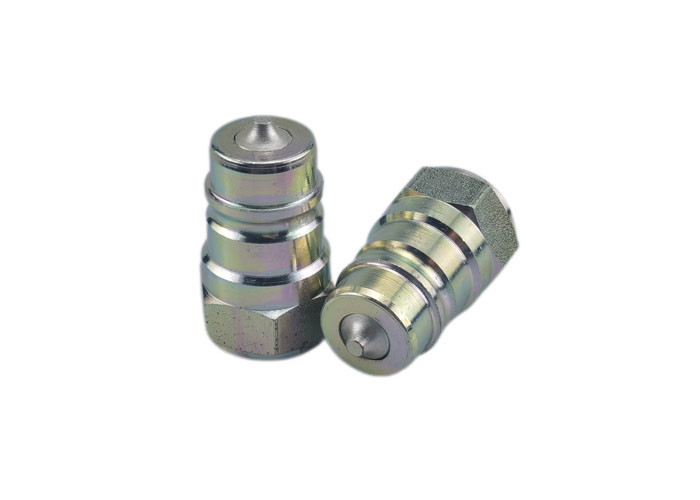

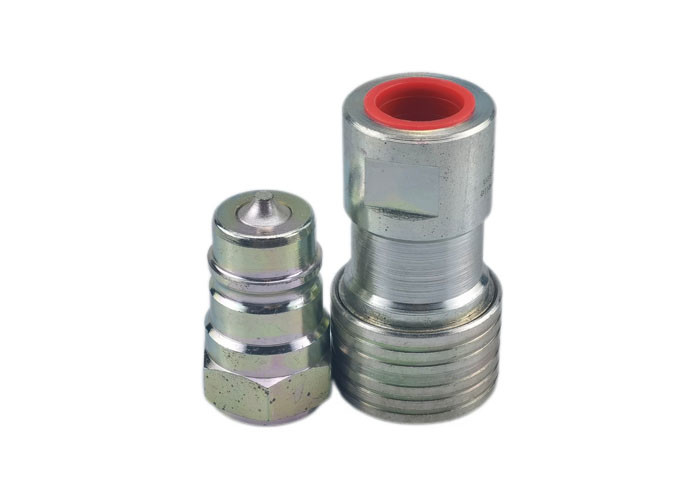

Steel PUSH AND PULLTYPE HYDRAULIC QUICK COUPLING ISO5675 Coupler

CB-4 Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Standard Materials

  • zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
  2. Poppet valves available to prevent uncoupled leakage.
  3. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
  4. Critical parts are hardened for durability.
  5. Dependable ball-locking mechanism holds the mating halves together.
  6. Socket and plug are precision machined from solid bar stock.
  7. CB-4 series conforms to the standard of ISO5675.
  8. Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

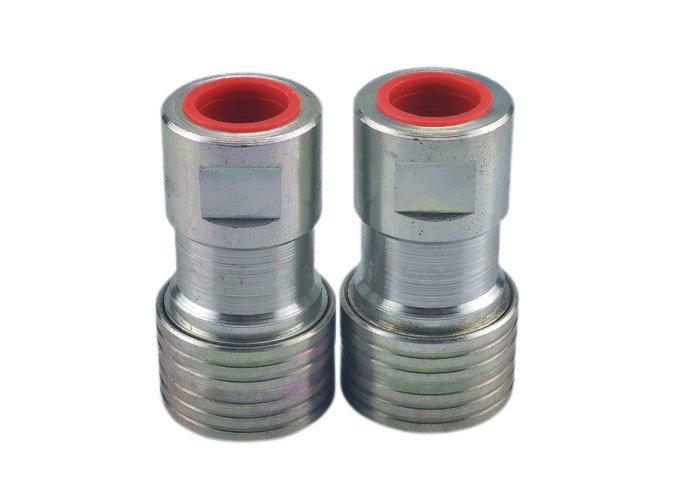

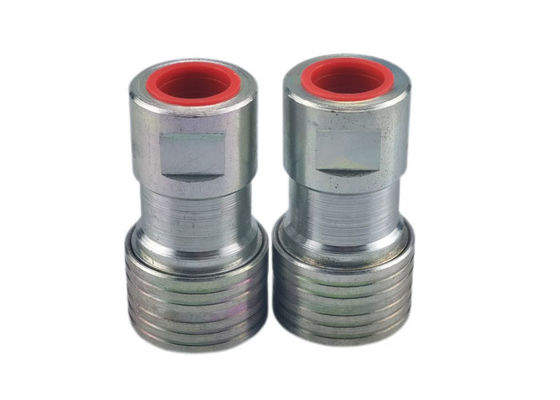

4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers 0

Body Size PARTNO. Thread A B HEX
3/8" CB-S3S-4FN-A 3/8-18 66 38 27
3/8" CB-S3S-4FG-A 3/8-19 66 38 27
1/2" CB-S4S-4FN-A 1/2-14 66 38 27
1/2" CB-S4S-4FG-A 1/2-14 66 38 27
3/4" CB-S6S-4FN-A 3/4-14 69 38 34
3/4" CB-S6S-4FG-A 3/4-14 69 38 34

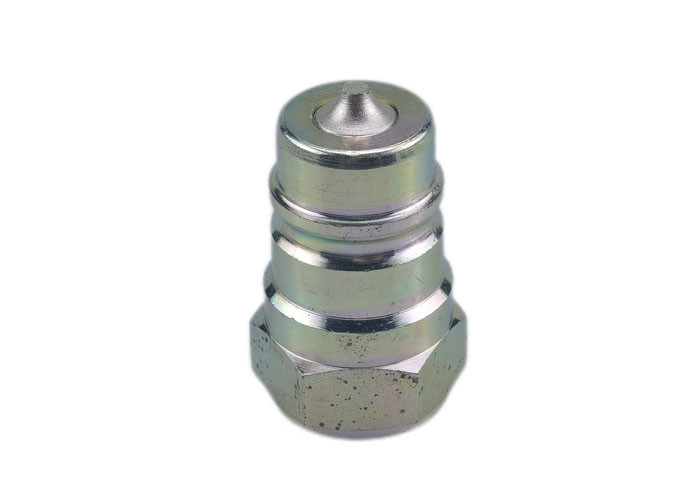

4000PSI 0.75'' Steel Push And Pull ISO 5675 Couplers 1

Body Size PARTNO. Thread A B HEX
3/8" CB-P3S-4FN-A 3/8-18 27 61,5 27
3/8" CB-P3S-4FG-A 3/8-19 27 61,5 27
1/2" CB-P4S-4FN-A 1/2-14 27 44 27
1/2" CB-P4S-4FG-A 1/2-14 27 44 27
3/4" CB-P6S-4FN-A 3/4-14 34 64,5 34
3/4" CB-P6S-4FG-A 3/4-14 34 64,5 34
