Home /Products/Quick Connect Products/0.5'' Medium Pressure Pneumatic Brass Quick Coupler

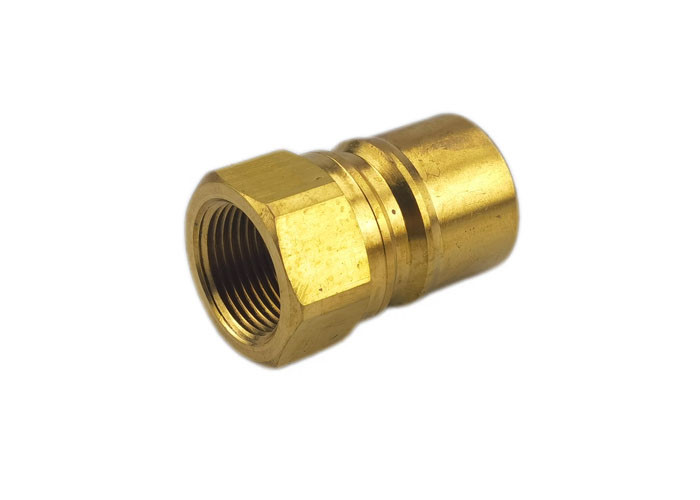

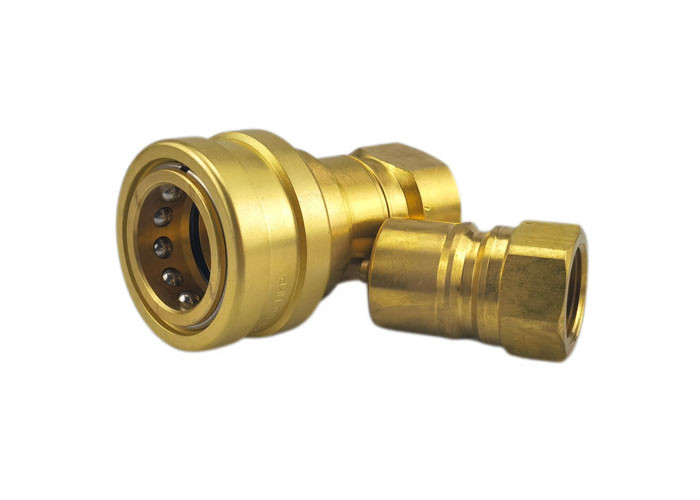

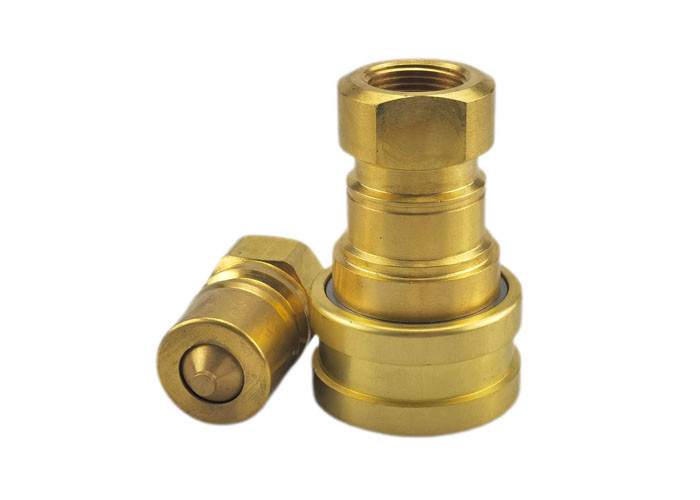

0.5'' Medium Pressure Pneumatic Brass Quick Coupler

Negotiation
MOQ
Negotiation
Price
0.5'' Medium Pressure Pneumatic Brass Quick Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Brass Hydraulic Quick Coupler
Material: Brass
Connection: Female/Male
Technics: CNC Machining
Size: 1/8' ~ 1'
Temperature: -20~120°C
Standard: ISO7241B
Certification: ISO9001
Highlight:

0.5in Brass Quick Coupler

,

IATF16949 Brass Quick Coupler

,

ISO9001 pneumatic quick connect coupling
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-3
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Medium-pressure High Performance Pneumatic And Hydraulic Brass Quick Coupling



CB-3 Series Quick Couplings are used across the spectrum of hydraulic applications. Primarily used with hydraulic fluid. CB-3 couplings are also used with chemicals, water, steam, and some gases.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

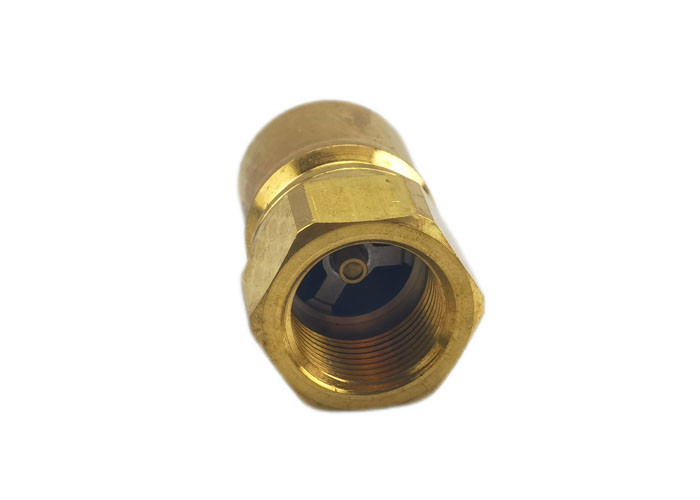

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

0.5'' Medium Pressure Pneumatic Brass Quick Coupler 0

Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1B-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1B-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2B-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2B-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3B-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3B-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4B-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4B-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6B-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6B-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8B-1FG 1-11 4.13 2.61 1.75
1" CB-S8B-1FN 1-110.5'' Medium Pressure Pneumatic Brass Quick Coupler 1 4.13 2.61 1.75

0.5'' Medium Pressure Pneumatic Brass Quick Coupler 2

Body Size PARTNO. Thread C D E HEX
1/8" CB-P1B-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1B-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2B-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2B-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3B-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3B-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4B-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4B-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6B-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6B-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8B-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8B-1FN 1-110.5'' Medium Pressure Pneumatic Brass Quick Coupler 1 2.85 1.88 0.97 1.63
