207 Bar Thread To Connect Valved Brass Quick Coupler

Negotiation
MOQ
Negotiation
Price
207 Bar Thread To Connect Valved Brass Quick Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass
Connection: Thread
Type: Coupling,Fittings
Pressure: 207 Bar
Temperature: -20~100°C
Head Code: Square
Application: Bulk Liquid Transfer
Name: Brass Quick Coupler
Highlight:

207 Bar Brass Quick Coupler

,

3002psi Brass Quick Coupler

,

IATF16949 brass quick connect hose fittings
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-2
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

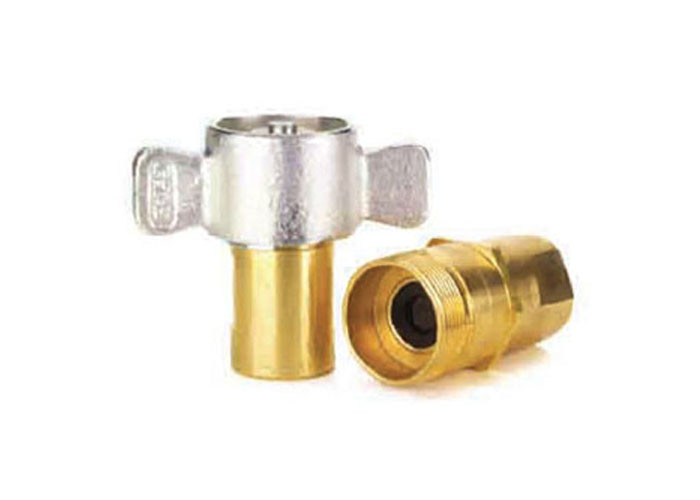

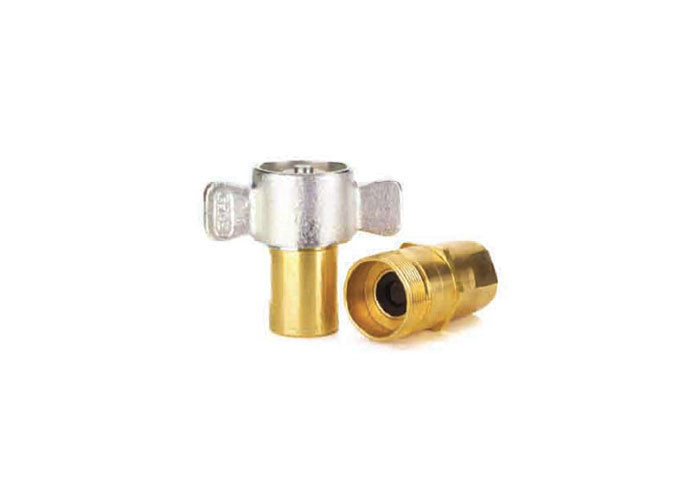

Thread to Connect Valved WITH Wing Nut Less Flange Compatible with 5100 Series Brass Quick Coupler



CB-3-A Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Applications & Markets • Hydraulics and fluid transfer • On-highway hydraulic wet lines • Dump and refuse vehicles • Bulk liquid transfer

Thread together latch provides connect under pressure capability and vibration resistance. The Series is not rated for continuous hydraulic impulse applications.





Features

  1. Steel flange available for accessible bulkhead mounting
  2. Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards
  3. Low air inclusion during connection maintains system performance
  4. Available with wing or hex nut configurations
  5. Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi

207 Bar Thread To Connect Valved Brass Quick Coupler 0

Body Size PARTNO. Thread A B HEX
1/8" CB-S1B-3FN-B 1/8-27 2.10 3.03 0.56
1/4" CB-S2B-3FN-B 1/4-18 2.40 3.44 0.76
3/8" CB-S3B-3FN-B 3/8-18 2.40 3.44 0.76
1/2" CB-S4B-3FN-B 1/2-14 3.07 4.13 1.16
3/4" CB-S6B-3FN-B 3/4-14 3.07 4.13 1.16
1" CB-S8B-3FN-B 1-11 1/2 3.68 4.38 1.44



207 Bar Thread To Connect Valved Brass Quick Coupler 1



Body Size PARTNO. Thread A B HEX
1/8" CB-P1B-3FN-A 1/8-27 1.88 0.90 0.69
1/4" CB-P2B-3FN-A 1/4-18 2.58 1.05 0.94
3/8" CB-P3B-3FN-A 3/8-18 2.58 1.05 0.94
1/2" CB-P4B-3FN-A 1/2-14 3.11 1.38 1.19
3/4" CB-P6B-3FN-A 3/4-14 3.11 1.38 1.19
1" CB-P8B-3FN-A 1-11 1/2 3.55 1.74 1.56





Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
