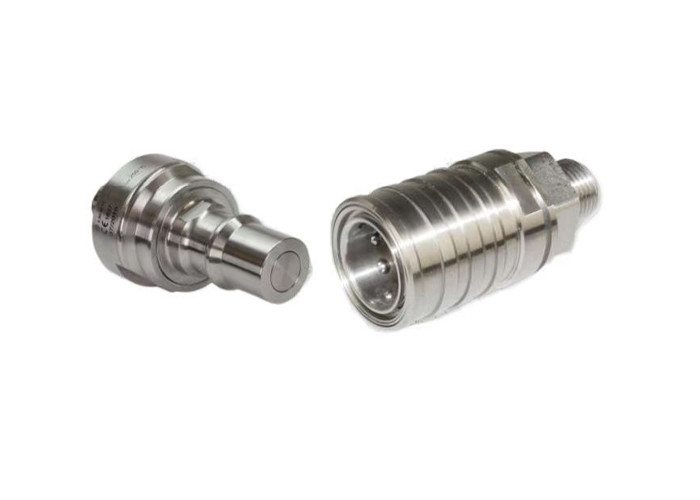

FFKM Aggressive Fluids Gases High Pressure Coupling For Chemical Industry

FFKM Aggressive Fluids Gases High Pressure Coupling For Chemical Industry

  • High Light

    Aggressive Fluids High Pressure Coupling

    ,

    Gases High Pressure Coupling FFKM

    ,

    Chemical Stainless Steel Coupler 12mm

  • Name
    Coupling
  • Nominal Bores
    6, 9, 12 And 16 Mm
  • Media
    Aggressive Fluids Or Gases
  • Seals
    FFKM
  • Material
    Stainless Steel
  • Springs
    Hastelloy
  • Application
    Agressive Fluids Or Gases
  • Working Pressure
    Up To 350 Bar / 5.075 Psi
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-2
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

FFKM Aggressive Fluids Gases High Pressure Coupling For Chemical Industry

For agressive fluids or gases in the chemical industry with high pressure Coupling



Description: The clean-break coupling is designed for agressive fluids or gases in the chemical industry with high pressure and high temperature. Depending on nominal bore and max. process temperatures (Tmax=250℃/482 F) the max. pressure gases goes up to 350 bar / 5.075 psi. All individual parts are perfectly matched and therefore this coupling series features easy handling combined with very high flow-rates, low pressure drop and very good clean-break characteristics. During coupling process only a minimum of the surrounding atmosphere is trapped into the system. Accordingly the volume set free when disconnecting is also minimal.



Features:

• Safe for the worker: absolutely squirt-free and only minimal leakage when disconnecting

• Good for your process: minimal air intake when connecting

• Robust and durable: high-quality stainless steel 1.4404 / 1.4462 / 1.4529

• Long service life: FFKM seals and springs made of Hastelloy

• Easy to clean and to maintain: high-quality surface finishing and easy-to-replace seals

• Efficiency: high flow-rates / low pressure drops





Nominal bore (mm) Value Leakage volume (ml)
6 1 0.05
9 3.2 0.1
12 4.5 0.19
16 8.0 0.2





FFKM Aggressive Fluids Gases High Pressure Coupling For Chemical Industry 0






Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
