| Brand Name: | carterberg |
| Model Number: | CB-2 |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000~20000 pc/month |

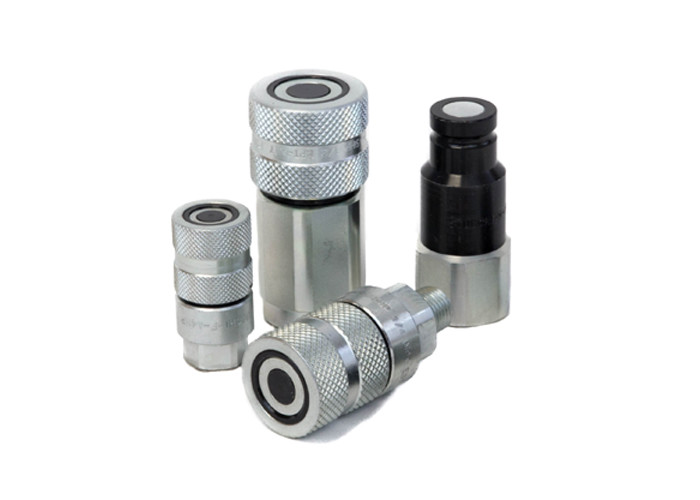

High Pressure Hydraulic Quick Release Coupling applications oil and gas industry
High pressure hydraulic quick release couplings are required in high pressure hydraulic applications such as for the oil and gas industry, mobile construction and industrial equipment. High pressure hydraulic couplers must maintain leak-free fluid control in demanding environments such as in construction equipment, hydraulic wrenches, emergency cutting tools, industrial machinery and many other applications which present high-pressure and vibration. Quick connect and quick disconnect in applications with 10,000 psi working pressure require durable construction with a higher burst pressure than standard quick couplers.
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/4" | 5000 | 3 | -20℃~+80℃ | NBR |
| 3/8" | 3000 | 6 | ||
| 1/2" | 3000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 3000 | 50 |
| PARTNO. | Thread | LS | φD | HS | A |
| CB-S2S-6FN | G1/4 NPT1/4 | 60 | 28 | S22 | 14 |
| CB-S3S-6FN | G3/8 NPT3/8 | 72 | 32 | S24 | 14 |
| CB-S3S-6FN-A | G1/2 NPT1/2 | 76 | 32 | S27 | 16 |
| CB-S4S-6FN | G1/2 NPT1/2 | 77 | 38 | S32 | 16 |
| CB-S4S-6FN-A | G3/4 NPT3/4 | 79 | 38 | S36 | 22 |
| CB-S6S-6FN | G3/4 NPT3/4 | 79 | 42 | S36 | 22 |
| CB-S8S-6FN | G1 NPT1 | 97 | 48 | S41 | 23.5 |
| PARTNO. | Thread | LP | φC | HP | A |
| CB-P2S-6FN | G1/4 NPT1/4 | 48 | 16 | S22 | 14 |
| CB-P3S-6FN | G3/8 NPT3/8 | 56 | 19.7 | S24 | 14 |
| CB-P3S-6FN-A | G1/2 NPT1/2 | 58 | 19.7 | S27 | 16 |
| CB-P4S-6FN | G1/2 NPT1/2 | 73 | 24.5 | S32 | 16 |
| CB-P4S-6FN-A | G3/4 NPT3/4 | 55 | 24.5 | S36 | 20 |
| CB-P6S-6FN | G3/4 NPT3/4 | 74 | 27 | S36 | 22 |
| CB-P8S-6FN | G1 NPT1 | 86 | 30 | S41 | 23.5 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
