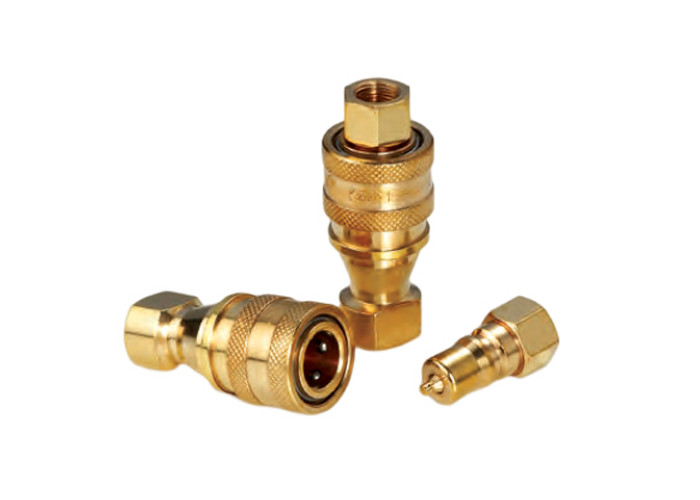

5000psi ISO7241B Quick Couplings For Hydraulic Machinery And Oil Equipment

5000psi ISO7241B Quick Couplings For Hydraulic Machinery And Oil Equipment

  • High Light

    Hydraulic Machinery Quick Couplings

    ,

    5000psi Quick Couplings

    ,

    ISO7241B Hydraulic Quick Coupler

  • Connection
    Threaded
  • Connector Size
    1/2''
  • Connector Style
    Push-to-Connect
  • Connector Type
    Quick Connect
  • Flow
    High
  • Flow Rating
    20 GPM
  • Material
    Steel
  • Name
    Hydraulic Quick Coupler
  • Pressure
    High
  • Pressure Rating
    3000 Psi
  • Size
    Standard
  • Temperature
    High
  • Temperature Rating
    200°F
  • Thread Size
    1/2 In
  • Thread Type
    NPT
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-13
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

5000psi ISO7241B Quick Couplings For Hydraulic Machinery And Oil Equipment

5000psi ISO7241B Quick Couplings for Hydraulic Machinery and Oil Equipment Open and Close Type Hydraulic Quick Couplings



where fluid coupling is used?



Fluid couplings, also known as hydraulic couplings, are used in many industries, including:
Automotive, Mining, Power generation, Material handling, Oil and gas, Marine, Textile, Industrial machines, Locomotives.
Fluid couplings are used in a variety of applications, including:
Belt conveyors, Bucket elevators, Ball mills, Crushers, Mixers, Slurry pumps, Compressors, Industrial fans, Diesel locomotives.
Fluid couplings are hydrodynamic mechanisms that use transmission fluid to transfer rotational force from one shaft to another. They can be used in extreme conditions, such as high engine vibration.



BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/4" 5000 3 -20℃~+80℃ NBR
3/8" 4000 6
1/2" 4000 12
3/4" 3000 28
1" 3000 50





Body Size PARTNO. LS Φ D HS A T
1/4" CB-S2B-1FG 58 28.5 19 13 G1/4
1/4" CB-S2B-1FN 58 28.5 19 13 NPT1/4
3/8" CB-S3B-1FG 65 35 22 14 G3/8
3/8" CB-S3B-1FN 65 35 22 14 NPT3/8
1/2" CB-S4B-1FG 74 44.5 28.5 18 G1/2
1/2" CB-S4B-1FN 74 44.5 28.5 18 NPT1/2
3/4" CB-S6B-1FG 92 54 36 22 G3/4
3/4" CB-S6B-1FN 92 54 36 22 NPT3/4
1" CB-S8B-1FG 105 65 41 23 G1
1" CB-S8B-1FN 105 65 41 23 NPT1



Body Size PARTNO. LP C HP A T
1/4" CB-P2B-1FG 35.5 22.8 19*6角 13 G1/4
1/4" CB-P2B-1FN 35.5 22.8 19*6角 13 NPT1/4
3/8" CB-P3B-1FG 40 25 22*6角 14 G3/8
3/8" CB-P3B-1FN 40 25 22*6角 14 NPT3/8
1/2" CB-P4B-1FG 46.5 28 27*6角 18 G1/2
1/2" CB-P4B-1FN 46.5 28 27*6角 18 NPT1/2
3/4" CB-P6B-1FG 56 36 36*6角 22 G3/4
3/4" CB-P6B-1FN 56 36 36*6角 22 NPT3/4
1" CB-P8B-1FG 65 45 41*6角 23 G1
1" CB-P8B-1FN 65 45 41*6角 23 NPT1
