TC Close Type Super High Pressure Hydraulic Quick Coupler

TC Close Type Super High Pressure Hydraulic Quick Coupler

  • High Light

    10000PSI Hydraulic Quick Coupler


    OEM High Pressure Hydraulic Quick Coupler


    3/8 High Pressure Quick Coupler

  • Used
    Railway Maintenance
  • Name
    Hydraulic Coupling
  • Pressure
  • Size
  • Material
  • Technics
  • Thread
  • Temperature
    -20℃ To +120℃
  • Place of Origin
    Shanghai, China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

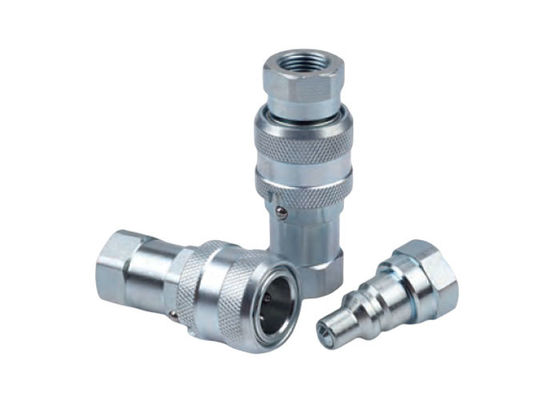

TC Close Type Super High Pressure Hydraulic Quick Coupler

TC close type Super high pressure hydraulic quick coupling(steel)


Applications: The TC series couplings are found in the construction, railway maintenance and house moving industries. Used on hydraulic jacking equipment, these couplers eliminate costly down time caused by improperly connected threaded types. For use where high pressure capability is required coupled with positive coupling action. Considerably faster to use than threaded types.




Body Size(in) 3/8
Rated Pressure(PSI) 10.000
Rated Flow(GPM) 6
Temperature Range(std seals) -20℃ to +120℃
tandard seal material NBR



TC Features:
1. Positive valve stop, the perch maintains valve alignment and provides metal to metal valve stop to ensure that the valves open fully, every time.
2. Precision machined valves with electrometric seal provide for positive shut-off upon disconnection.
3. Hardened nipples and sleeves and solid barstock construction make for a quality coupling with max-imum resistance to damage from hydraulic and mechanical shock.
4. Durable ball-locking mechanism assures reliable connection every time. A large number of locking balls distributes and work load evenly while providing alignment and swiveling action to reduce hose torque and prolong hose life. CAUTION: These products are not to be used as swivels; rotation under pressure will result in excessive and premature wear.
5. Sleeve locking mechanism prevents accidental disconnection when coupling is dragged along the ground
6. Compatible with PARKER TC Series


TC Close Type Super High Pressure Hydraulic Quick Coupler 0

CB-SP3S-TC NPT3/8 32 24 24 78.7 62.5 44.2


TC Close Type Super High Pressure Hydraulic Quick Coupler 1
