High Pressure Thread to Connect Flush Face for high pressure High Pressure Quick Coupler
Applications & Markets • Hydraulic fluid transfer • High impulse hydraulics • Oil field • Mining
Features

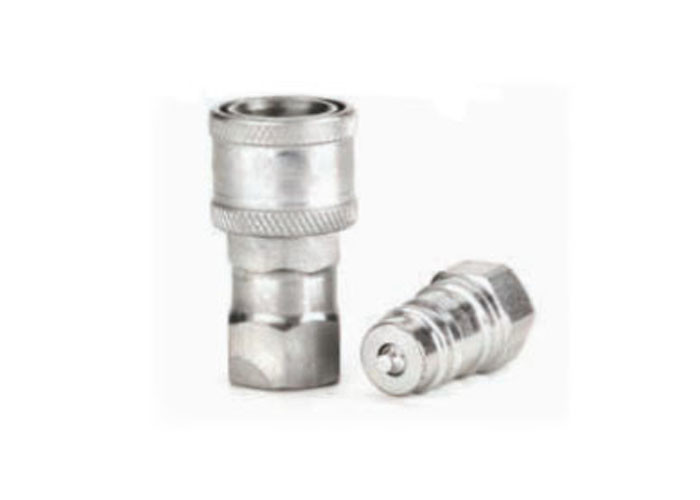

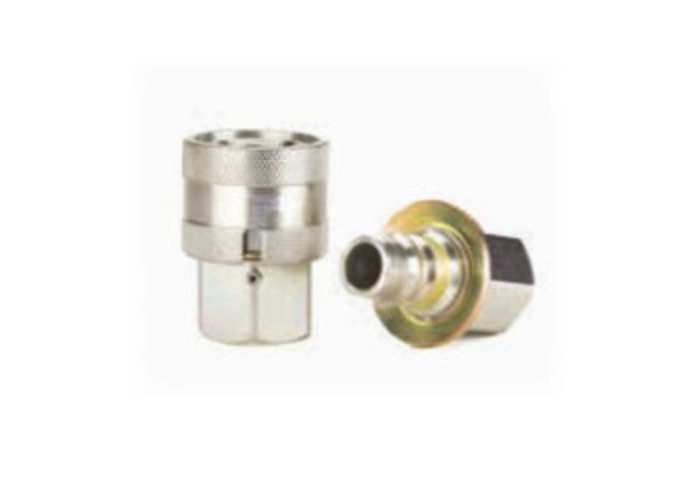

CB-2-B Series High Pressure Thread Together Flush Face Series is designed for high pressure and high impulse applications for hydraulic circuits. The Series design provides low connect and disconnect force in hydraulic circuits where trapped residual pressure must be addressed. The flush face design limits contamination and unwanted fluid loss. The Series is available in sizes 1/4” through 2” to best meet your specific size requirements.
| Body Size | PARTNO. | Thread | A | B | HEX |
| 3/8" | CB-S3S-2FN-B | 3/8-18 | 2.59 | 1.65 | 1.18 |
| 3/8" | CB-S3S-2FN-B | 1/2-14 | 2.79 | 1.65 | 1.06 |
| 1/2" | CB-S4S-2FN-B | 1/2-14 | 3.06 | 1.96 | 1.42 |
| 1/2" | CB-S4S-2FN-B | 3/4-14 | 3.06 | 1.96 | 1.42 |
| 3/4" | CB-S6S-2FN-B | 3/4-14 | 3.34 | 2.12 | 1.61 |
| 1" | CB-S8S-2FN-B | 1-11 1/2 | 3.93 | 2.31 | 1.81 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 3/8" | CB-S3S-2FN-B | 3/8-18 | 3.25 | 1.49 | 1.06 |
| 3/8" | CB-S3S-2FN-B | 1/2-14 | 3.35 | 1.49 | 1.06 |
| 1/2" | CB-S4S-2FN-B | 1/2-14 | 3.74 | 1.80 | 1.42 |
| 1/2" | CB-S4S-2FN-B | 3/4-14 | 3.83 | 1.80 | 1.42 |
| 3/4" | CB-S6S-2FN-B | 3/4-14 | 3.90 | 1.96 | 1.42 |
| 1" | CB-S8S-2FN-B | 1-11 1/2 | 4.47 | 2.16 | 1.81 |
