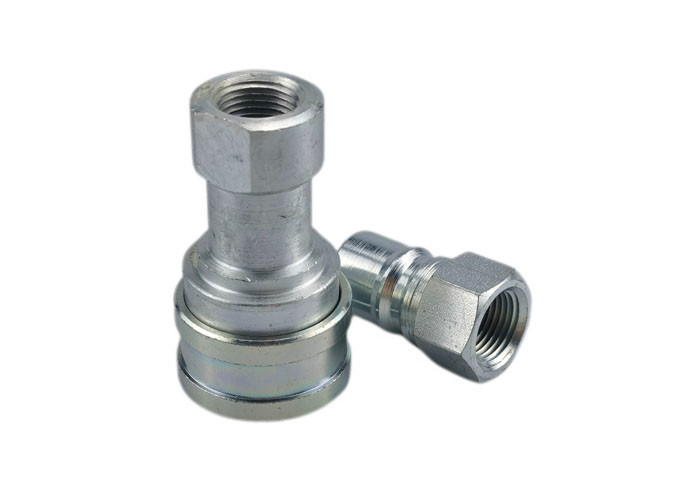

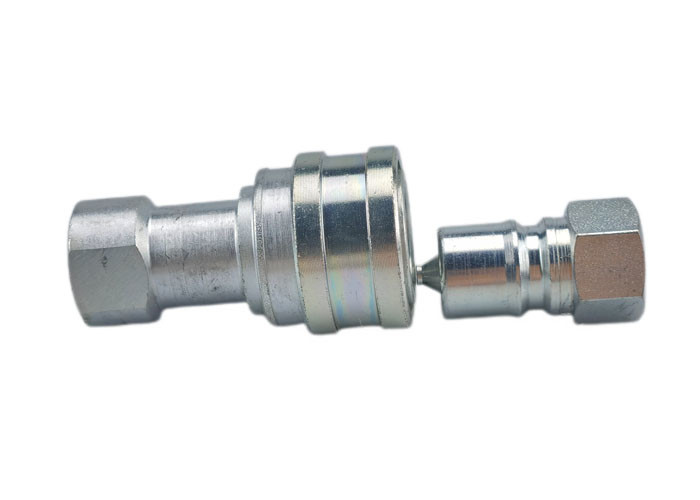

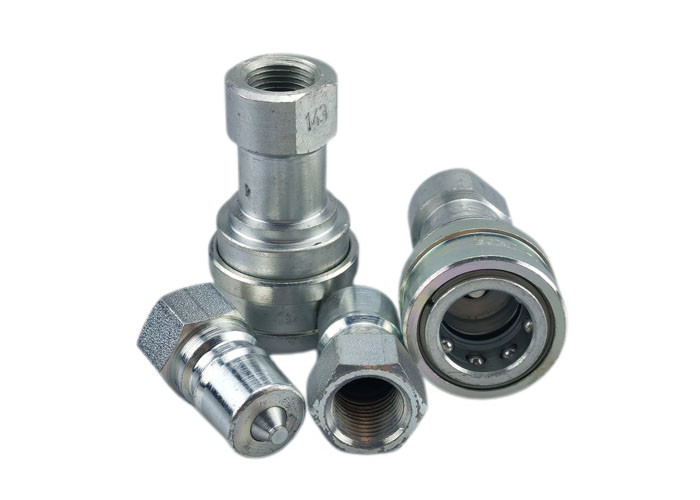

High Strength Steel 689 Bar High Pressure Quick Coupler

Negotiation
MOQ
Negotiation
Price
High Strength Steel 689 Bar High Pressure Quick Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Connection: Female/Male
Application: Hydraulic System
Product Name: High Pressure Quick Coupling
Temperature: -30~100°C
Pressure: 10000PSI
Size: 1/4",3/8
Material: High Strength Steel
Packing: Carton
Highlight:

689 Bar High Pressure Quick Coupler

,

Viton High Pressure Quick Coupler

,

IATF16949 high pressure quick release coupling
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-2
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Ultra Pressure 10000PSI hydraulic quick connect coupling High Pressure Quick Coupler



CB-2-A Series is a high pressure hydraulic quick connect coupling designed to operate at pressures up to 10,000 psi. Its ball lock mechanism makes it a true quick connect coupling, as opposed to thread-to-connect couplings that are typically used in high pressure hydraulics. Body size is 1/4".

Standard Materials

  • High strength steel bodies and valves
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Slim profile compared to threaded couplings
  3. High strength steel construction
  4. Poppet valves with metal-to-metal sealing
  5. 1/4" & 3/8" male & female NPTF end connections
  6. Standard sleeve lock

High Strength Steel 689 Bar High Pressure Quick Coupler 0

Body Size PARTNO. Thread A B Hex
1/4"

CB-S2S-2MN-A

CB-S2S-2FN-A

1/4-18

1/4-18

2.69

2.64

1.18

1.18

0.88

0.88
3/8"

CB-S3S-2MN-A

CB-S3S-2FN-A

3/8-18

3/8-18

2.69

2.69

1.18

1.18

0.88

0.88



High Strength Steel 689 Bar High Pressure Quick Coupler 1

Body Size PARTNO. Thread C D Hex
1/4"

CB-P2S-2MN-A

CB-P2S-2FN-A

1/4-18

1/4-18

2.59

2.54

0.97

0.97

0.88

0.88
3/8"

CB-P3S-2MN-A

CB-P3S-2FN-A

3/8-18

3/8-18

2.59

2.59

0.97

0.97

0.88

0.88
