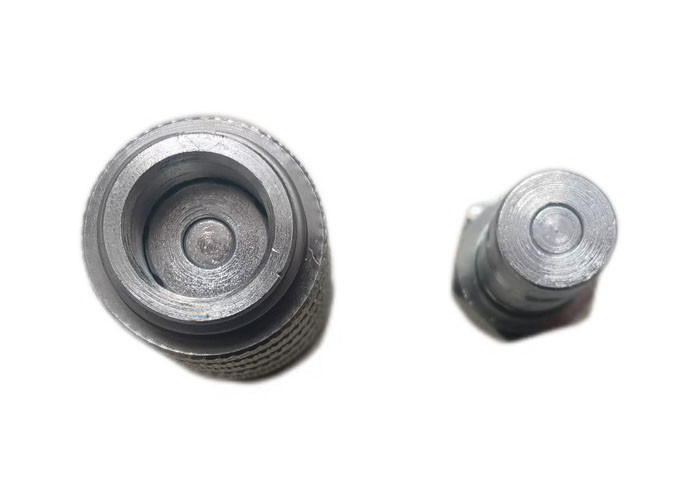

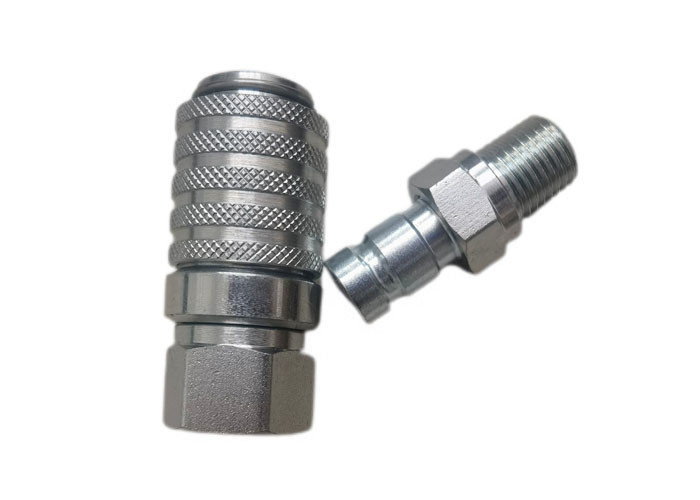

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard

Negotiation
MOQ
Negotiation
Price
PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Coupling
Application: Pneumatic And Hydraulic
Standard: NPT
Nominal: 1/4
Type: Coupling
Temperature: -20℃ ~ 80℃
Pressure: 42Mpa
Flow: 5
Highlight:

1/4 Diagnostic Hydraulic Quick Coupler

,

Hydraulic Quick Coupler 42Mpa

,

NPT Hydraulic Quick Coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-13
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

PD series Diagnostic Hydraulic Quick Couplings


Materials:

Coupling:Steel(zinc chromate plating)

Nipple:Hardened steel(zinc chromate plating)

Features:

1, Nipples meet or exceed SAEJ 1502 and ISO 15171-1 design and performance specification Technical features

2, Diagnostic couplings provide easily accessible test points for performance testing of hydraulic and pneumatic systems.

3, A safety sleeve lock prevents accidental disconnection. Push-to-connect operation allows one hand operation when connecting the coupling;

4, Flush-faced poppet for a minimal air inclusion when connecting ,minimal fluid loss during disconnection and for an easy cleaning.

5, NBR ( Nitrile )as standard.Other seal materials FKM (Viton TM),EPDM(Ethylene propylene)are available upon request.

lnterchange: Parker PD Series





Rated Pressure (Mpa)

Rated Flow (L/min)

Temperature range(std seals)

Standard seal material

42

5

-20℃~+80℃

NBR

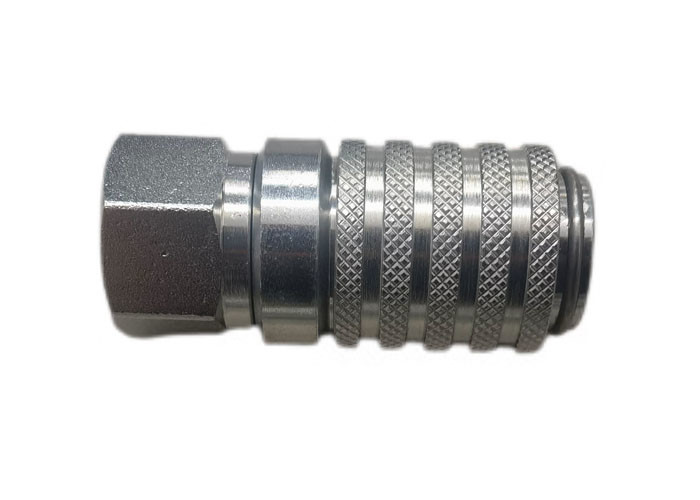

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard 0

PARTNO.

Thread

D1

L1

CH

CB-S1S-13FN

NPT1/8

24.5

42.5

21

CB-S2S-13FN

NPT1/4

24.5

54

21

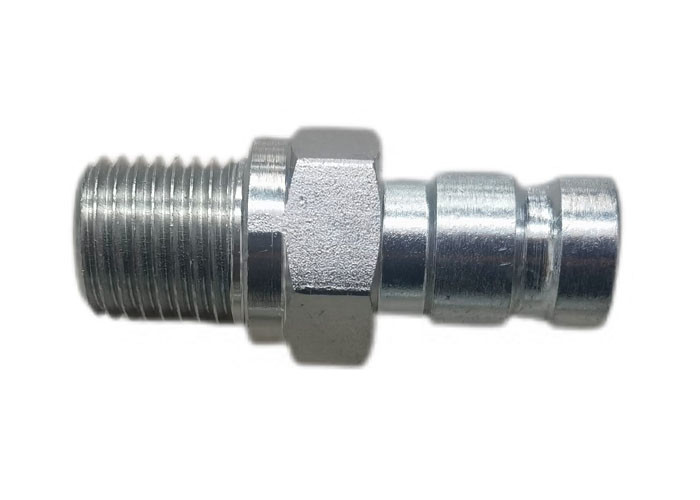

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa NPT Standard 1

PARTNO.

Thread

D1

L1

L2

CH

CB-P1S-13FN

NPT1/8

12.6

17.8

37.5

17

CB-P2S-13FN

NPT1/4

12.6

17.8

41.5

19


Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
