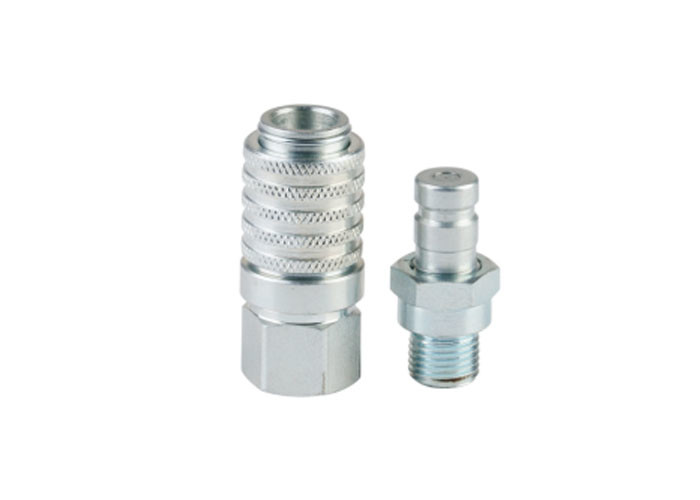

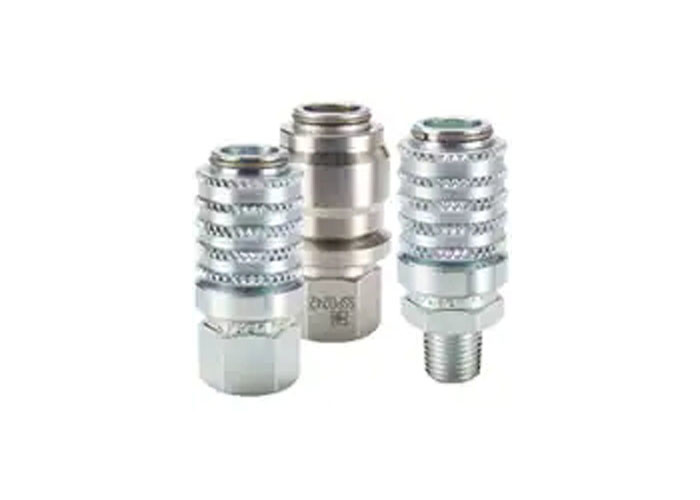

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa

Brand Name: carterberg
Model Number: CB-13
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Detail Information
Place of Origin:
Shanghai, China
Certification:
IATF16949
Product Name:
Hydraulic Coupling
Application:
Pneumatic Tools
Standard:
BSP
Nominal:
1/4
Type:
Coupling
Pressure:
42Mpa
Temperature:
-20℃ ~ 80℃
Flow:
5
Packaging Details:
carton
Supply Ability:
5000~20000 pc/month
Highlight:

1/4 Diagnostic Hydraulic Quick Coupler

,

Diagnostic Hydraulic Quick Coupler

,

42Mpa Hydraulic Quick Coupler

Product Description

PD series Diagnostic Hydraulic Quick Couplings



are all hydraulic quick connect fittings the same?



Materials:

Coupling:Steel(zinc chromate plating)

Nipple:Hardened steel(zinc chromate plating)

Features:

1, Nipples meet or exceed SAEJ 1502 and ISO 15171-1 design and performance specification Technical features

2, Diagnostic couplings provide easily accessible test points for performance testing of hydraulic and pneumatic systems.

3, A safety sleeve lock prevents accidental disconnection. Push-to-connect operation allows one hand operation when connecting the coupling;

4, Flush-faced poppet for a minimal air inclusion when connecting ,minimal fluid loss during disconnection and for an easy cleaning.

5, NBR ( Nitrile )as standard.Other seal materials FKM (Viton TM),EPDM(Ethylene propylene)are available upon request.

lnterchange: Parker PD Series





Rated Pressure (Mpa) Rated Flow (L/min) Temperature range(std seals) Standard seal material
42 5 -20℃~+80℃ NBR



PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa 0

PARTNO. Thread D1 L1 CH
CB-S1S-13FN NPT1/8 24.5 42.5 21
CB-S2S-13FN NPT1/4 24.5 54 21

PD Series 1/4 Diagnostic Hydraulic Quick Coupler 42Mpa 1

PARTNO. Thread D1 L1 L2 CH
CB-P1S-13FN NPT1/8 12.6 17.8 37.5 17
CB-P2S-13FN NPT1/4 12.6 17.8 41.5 19
