1/8'' CB-1 Series Stainless Steel 316 Close Type Hydraulic Quick Coupling

1/8'' CB-1 Series Stainless Steel 316 Close Type Hydraulic Quick Coupling

  • High Light

    BSP Hydraulic Quick Coupler

    ,

    IATF16949 Hydraulic Quick Coupler

    ,

    NPT hydraulic quick connect couplings

  • Thread
    NPT/BSP
  • Type
    Hydraulic
  • Material
    Stainless Steel
  • Standard
    IATF16949
  • Size
    From 1/8 To 1
  • Product Name
    Hydraulic Quick Coupler
  • Pressure
    0 - 15 Bar
  • Oem
    Avaliable
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-1
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

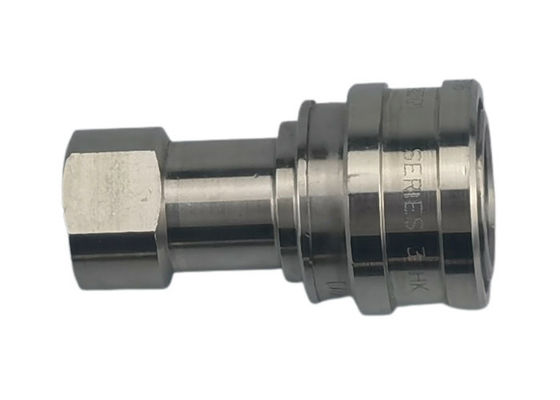

1/8'' CB-1 Series Stainless Steel 316 Close Type Hydraulic Quick Coupling

1/8'' CB-1 Series stainless steel 316 close type hydraulic quick coupling



how do hydraulic quick couplers work?



Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.1/8'' CB-1 Series Stainless Steel 316 Close Type Hydraulic Quick Coupling 0

CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM



  1. Body Size PARTNO. Thread A B Across Flats
    1/8" CB-S1S-1FG 1/8-27 1.91 0.98 0.56
    1/8" CB-S1S-1FN 1/8-27 1.91 0.98 0.56
    1/4" CB-S2S-1FG 1/4-19 2.26 1.17 0.75
    1/4" CB-S2S-1FN 1/4-18 2.26 1.17 0.75
    3/8" CB-S3S-1FG 3/8-19 2.56 1.42 0.88
    3/8" CB-S3S-1FN 3/8-18 2.56 1.42 0.88
    1/2" CB-S4S-1FG 1/2-14 2.96 1.86 1.13
    1/2" CB-S4S-1FN 1/2-14 2.96 1.86 1.13
    3/4" CB-S6S-1FG 3/4-14 3.48 2.22 1.31
    3/4" CB-S6S-1FN 3/4-14 3.48 2.22 1.31
    1" CB-S8S-1FG 1-11 4.13 2.61 1.75
    1" CB-S8S-1FN 1-11 4.13 2.61 1.75
    1/8'' CB-1 Series Stainless Steel 316 Close Type Hydraulic Quick Coupling 1
    Body Size PARTNO. Thread C D E HEX
    1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
    1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
    1/4" CB-P2S-1FG 1/4-19 1.52 0.87 0.56 0.75
    1/4" CB-P2S-1FN 1/4-18 1.52 0.87 0.56 0.75
    3/8" CB-P3S-1FG 3/8-19 1.76 1.01 0.61 0.88
    3/8" CB-P3S-1FN 3/8-18 1.76 1.01 0.61 0.88
    1/2" CB-P4S-1FG 1/2-14 2.03 1.30 0.76 1.13
    1/2" CB-P4S-1FN 1/2-14 2.03 1.30 0.76 1.13
    3/4" CB-P6S-1FG 3/4-14 2.36 1.52 0.71 1.31
    3/4" CB-P6S-1FN 3/4-14 2.36 1.52 0.71 1.31
    1" CB-P8S-1FG 1-11 2.85 1.88 0.97 1.63
    1" CB-P8S-1FN 1-11 2.85 1.88 0.97 1.63
