ISO7241-B Open And Close Quick Coupler Hydraulic Fittings

Negotiation
MOQ
Negotiation
Price
ISO7241-B Open And Close Quick Coupler Hydraulic Fittings
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Hydraulic Quick Coupler
Material: Steel
Application: Hydraulic
Standard: ISO7241-B
Thread: G / NPT
Seal: NBR/Viton/EPDM
Dimensions: 1/8''-1''
Interchange With: Parker 60 Series/Eaton HK Series
Highlight:

ISO7241-B Quick Coupler Hydraulic Fittings

,

NPT Quick Coupler Hydraulic Fittings

,

iso b quick connect
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-1
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

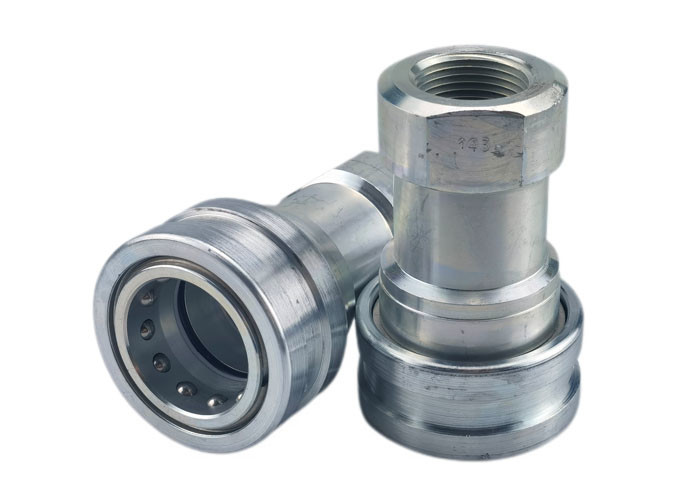

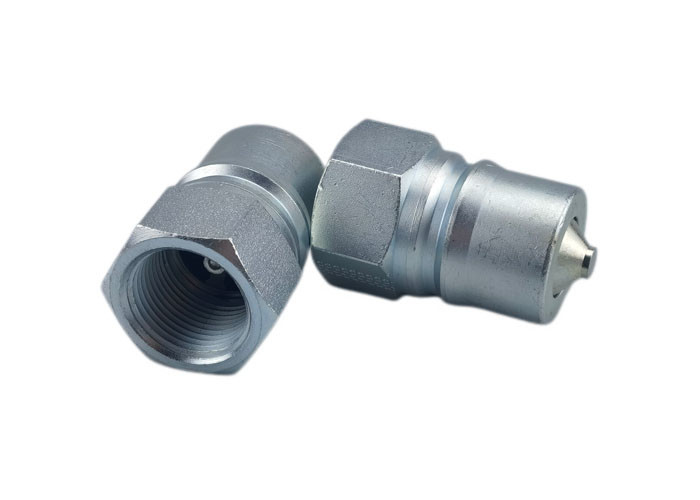

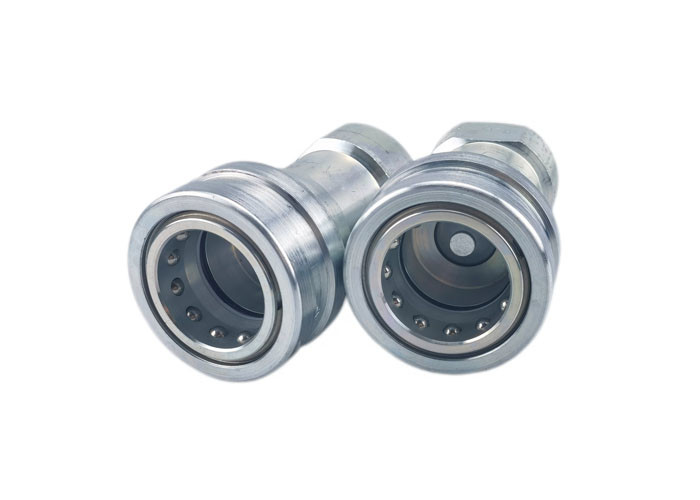

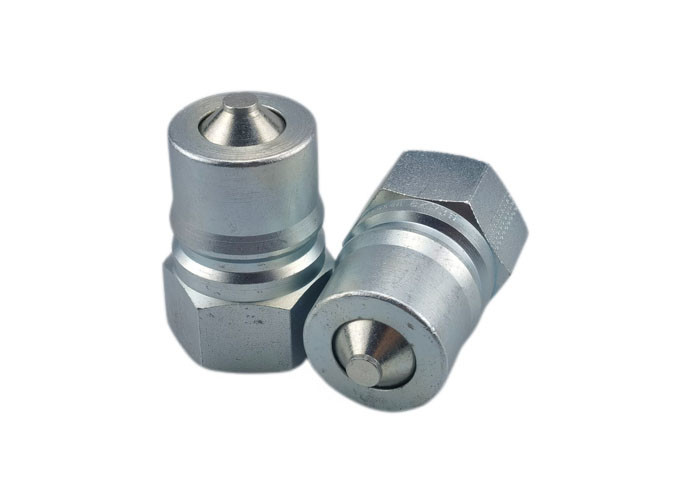

Open and Close Type Steel Hydraulic Quick Coupling



The CB-1 Series couplings are designed for general purpose hydraulic service. Some are suitable for use with various liquids, chemicals, steam, gases and vacuum. CB-1 couplings conform to the dimensional requirements of ISO 7241-B. Body sizes range from 1/8" to 1".



Standard Materials

  • Brass, zinc-plated steel, stainless steel

  • Seals: NBR, Viton, EPDM



Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.

  2. Critical parts are hardened for durability.

  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

Rated Pressure

BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/8" 4000 275 NBR
1/4" 5000 345
3/8" 3700 255
1/2" 5000 345
3/4" 4000 275
1" 4000 275

ISO7241-B Open And Close Quick Coupler Hydraulic Fittings 0

Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1S-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1S-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2S-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2S-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3S-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3S-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4S-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4S-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6S-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6S-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8S-1FG 1-11 4.13 2.61 1.75
1" CB-S8S-1FN 1-11 4.13 2.61 1.75

ISO7241-B Open And Close Quick Coupler Hydraulic Fittings 1

Body Size PARTNO. Thread C D E HEX
1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1S-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2S-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2S-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3S-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3S-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4S-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4S-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6S-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6S-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8S-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8S-1FN 1-11 2.85 1.88 0.97 1.63

Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
