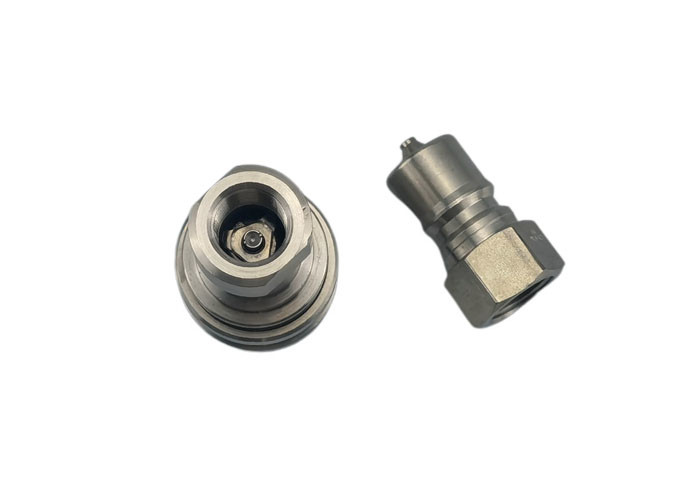

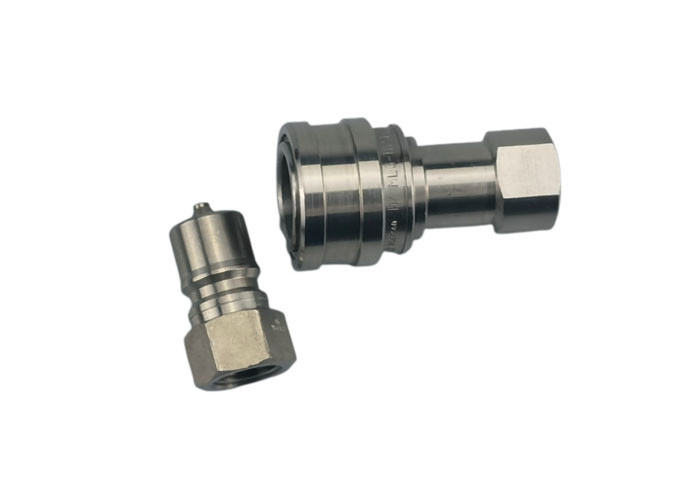

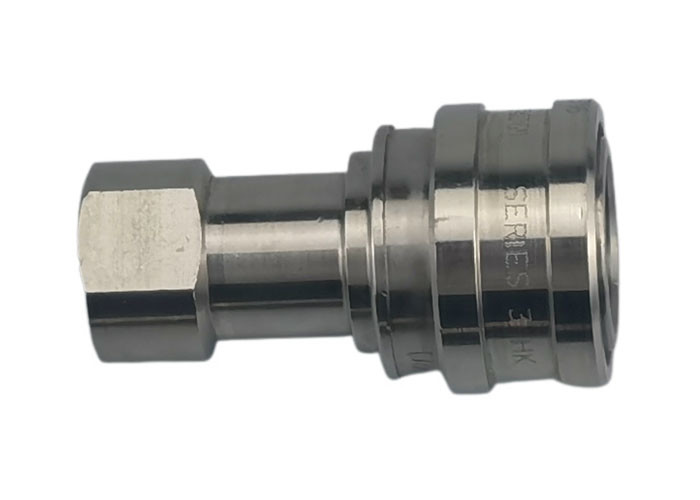

SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings

Negotiation
MOQ
Negotiation
Price
SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Hydraulic
Material: Stainless Steel
Product Name: Hydraulic Quick Coupler
Standard: IATF16949
Thread: NPT/BSP
Size: From 1/8 To 1
Pressure: 0 - 15 Bar
Oem: Avaliable
Highlight:

SS316 1 Inch Hydraulic Quick Coupler

,

IATF16949 1 Inch Hydraulic Quick Coupler

,

BSP hydraulic hose quick disconnect fittings
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-1
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

 hydraulic quick disconnect couplings stainless steel 316 close type hydraulic quick coupling



quick coupling interchange



Features

  1. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
  2. Critical parts are hardened for durability.
  3. Compatible with PARKER 60 Series, FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.


CB-SPL-1FG/ CB-SPM-1FG are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.

Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 0



Body Size PARTNO. Thread A B Across Flats
1/8" CB-S1L-1FG/CB-S1M-1FG 1/8-27 1.91 0.98 0.56
1/8" CB-S1L-1FN/CB-S1M-1FN 1/8-27 1.91 0.98 0.56
1/4" CB-S2L-1FG/CB-S2M-1FG 1/4-19 2.26 1.17 0.75
1/4" CB-S2L-1FN/CB-S2M-1FN 1/4-18 2.26 1.17 0.75
3/8" CB-S3L-1FG/CB-S3M-1FG 3/8-19 2.56 1.42 0.88
3/8" CB-S3L-1FN/CB-S3M-1FN 3/8-18 2.56 1.42 0.88
1/2" CB-S4L-1FG/CB-S4M-1FG 1/2-14 2.96 1.86 1.13
1/2" CB-S4L-1FN/CB-S4M-1FN 1/2-14 2.96 1.86 1.13
3/4" CB-S6L-1FG/CB-S6M-1FG 3/4-14 3.48 2.22 1.31
3/4" CB-S6L-1FN/CB-S6M-1FN 3/4-14 3.48 2.22 1.31
1" CB-S8L-1FG/CB-S8M-1FG 1-11 4.13 2.61 1.75
1" CB-S8L-1FN/CB-S8M-1FN 1-11SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 1 4.13 2.61 1.75

SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 2




Body Size PARTNO. Thread C D E HEX
1/8" CB-P1L-1FG/ CB-P1M-1FG 1/8-27 1.26 0.65 0.44 0.56
1/8" CB-P1L-1FG/ CB-P1M-1FG 1/8-27 1.26 0.65 0.44 0.56
1/4" CB-P2L-1FG/ CB-P2M-1FG 1/4-19 1.52 0.87 0.56 0.75
1/4" CB-P2L-1FN/ CB-P2M-1FN 1/4-18 1.52 0.87 0.56 0.75
3/8" CB-P3L-1FG/ CB-P3M-1FG 3/8-19 1.76 1.01 0.61 0.88
3/8" CB-P3L-1FN/ CB-P3M-1FN 3/8-18 1.76 1.01 0.61 0.88
1/2" CB-P4L-1FG/ CB-P4M-1FG 1/2-14 2.03 1.30 0.76 1.13
1/2" CB-P4L-1FN/ CB-P4M-1FN 1/2-14 2.03 1.30 0.76 1.13
3/4" CB-P6L-1FG/ CB-P6M-1FG 3/4-14 2.36 1.52 0.71 1.31
3/4" CB-P6L-1FN/ CB-P6M-1FN 3/4-14 2.36 1.52 0.71 1.31
1" CB-P8L-1FG/ CB-P8M-1FG 1-11 2.85 1.88 0.97 1.63
1" CB-P8L-1FN/ CB-P8M-1FN 1-11SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 1 2.85 1.88 0.97 1.63


SS316 1 Inch Hydraulic Quick Coupler , Hydraulic Hose Quick Disconnect Fittings 4
