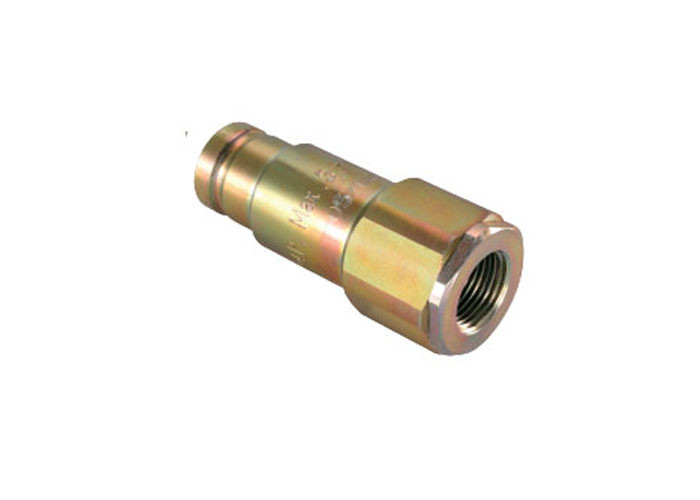

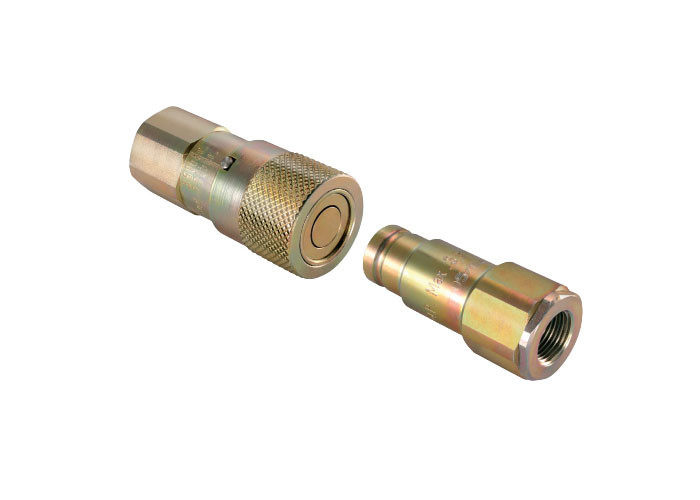

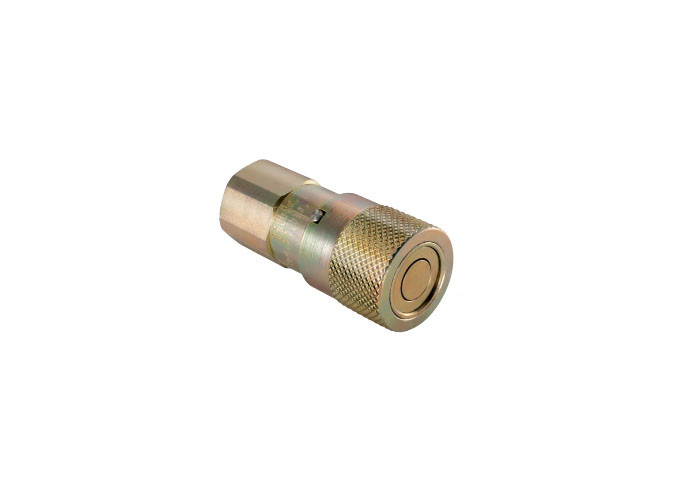

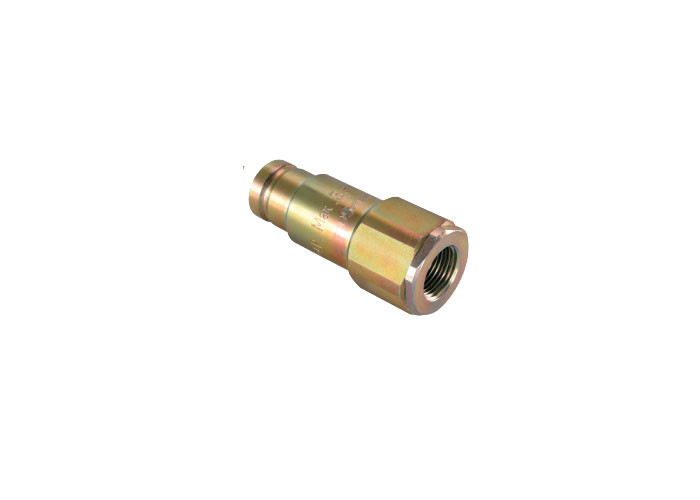

Hydraulic System 0.75'' Threaded Flat Face Couplers

G1/2 Compatible with Hansen QA29000 Series Flat Face Coupling, flat face hydraulic quick couplers

CB-6-A Series is used for quick change of hydraulic tools in construction , railway maintenance and mining industries. The ease of cleaning makes them ideal for use in these types of hostile environments. Sleeve locking mechanism is engaged by rotating sleeve after connection. It prevents accidental disconnection when the coupling is dragged along the ground. Sleeve mechanism is designed to help prevent dirt from entering the internal mechanism and thus avoid the faulty operation during connecting or disconnecting.

CB-6-A Series coupling is a flat face dry break or minimum spill hydraulic coupling. Body sizes are 1/4", 3/8", 3/4" and 1".

Applications

Standard Materials

• zinc-plated steel
• Seals: NBR, Viton, EPDM

Features

1. Ball lock
2. Push-to-connect
3. Minimal fluid loss when disconnecting
4. Minimal air inclusion when connecting
5. NPTF and BSPP threads available
6. Standard sleeve lock
7. Compatible with Hansen QA29000 Series
