DC / DH Swivel Ball Joint Rod End Bearing Connecting Products Type Wear Resistance

DC / DH Swivel Ball Joint Rod End Bearing Connecting Products Type Wear Resistance

Brand Name: PHIDIX
Model Number: DC / DH
MOQ: 10 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Features:
Self-locking And Surface Hardened For Wear Resistance
Name:
Connecting Products Type DC / DH Rotary Swivel Joint End Rod Bearings
Material:
Low Carbon Steel , Zinc Plated
Range Of Temperatures:
-60°F — 250°F (-51°C — 121°C)
Applications:
Motion Transfer Applications
Package:
Wood Case /carton/ Bubble Film
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

stainless steel swivel joints

,

swivel ball joint

Product Description



Connecting Products Type DC / DH Rotary Swivel Joint End Rod Bearings



【 Product Description 】

DC/DH Swivels were developed specifically for control applications where infinite adjustment is desired along the length of a connecting rod. They are intended for low load applications and offer in-line misalignments that are suited primarily for push applications. By using a Buna N rubber disc in the assembly, smooth and vibration-free operation is realized. A wide range of sizes and styles are available to match your application. DC Model offers 5/16" hardened self-locking screw.
The DC/DH Control Swivel Series is just one of many motion control devices found within our broad line of rod ends, spherical bearings, ball joints and swivels.



【 Applications 】
Numerous low load mechanical motion transfer applications where infinite adjustment is desired, including:
• HVAC
• Linear controls
• Light industrial applications
  【 Material 】
Ball Joint Head & Base
• Low Carbon Steel
• Zinc Plated, Clear Chromate Treated
• Buna N Rubber Disc (provides vibration-free operation)
Self Locking Screw
• Low Carbon Steel, Heat Treated
• Zinc Plated, Clear Chromate Treated

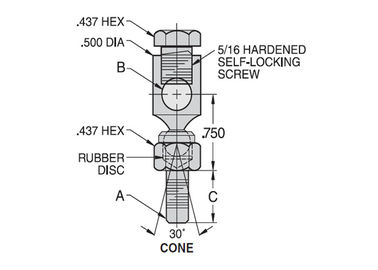

【 DC/DH Control Swivels 】

DC / DH Swivel Ball Joint Rod End Bearing Connecting Products Type Wear Resistance 0

DC / DH Swivel Ball Joint Rod End Bearing Connecting Products Type Wear Resistance 1
