Control Swivels Type DH Rotary Swivel Joint Gear Shift Cable Parts For Light Industrial

10 Piece/Pieces
MOQ
Negotiation
Price
Control Swivels Type DH Rotary Swivel Joint Gear Shift Cable Parts For Light Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Special Set Screws (self-locking And Surface Hardened For Wear Resistance) Provide Increased Holding Strength
Name: Stainless Steel Swivel Joints
Head Size: .375" Square
Applications: Light Industrial Applications
Range Of Temperatures: -60°F — 250°F (-51°C — 121°C)
Material: Low Carbon Steel , Zinc Plated
Highlight:

stainless steel swivel joints

,

threaded rod swivel joint

Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: DH
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 888 Piece/Pieces per Month
Product Description

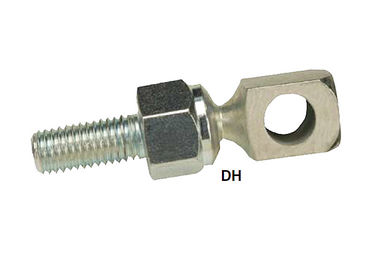

Control Swivels Type DH Rotary Swivel Joint Gear Shift Cable Parts






Product Description

DH Swivels were developed specifically for control applications where infinite adjustment is desired along the length of a connecting rod. They are intended for low load applications and offer in-line misalignments that are suited primarily for push applications. By using a Buna N rubber disc in the assembly, smooth and vibration-free operation is realized. A wide range of sizes and styles are available to match your application. DC Model offers 5/16" hardened self-locking screw.
The DH Control Swivel Series is just one of many motion control devices found within our broad line of rod ends, spherical bearings, ball joints and swivels.





Features
• Suited to low load applications where infinite adjustment is desired along the entire length of the connecting rod
• Can be used with either 1/4" or 5/16" diameter control rods
Head size:DH — .375" square
• Special set screws (self-locking and surface hardened for wear resistance) provide increased holding strength
• Integral nut and lock washer optionally available
Can be used in the wide range of temperatures: -60°F — 250°F (-51°C — 121°C)
• Custom assemblies can be built to your specifications
DH does not meet J490 specs





Self Locking Screw

•Low Carbon Steel,Heat Treated

•Zinc Plated, ClearChromate Treated

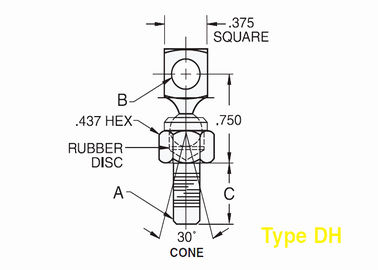

Technical Parameters

Control Swivels Type DH Rotary Swivel Joint Gear Shift Cable Parts For Light Industrial 0



DC/DH Chart

Control Swivels Type DH Rotary Swivel Joint Gear Shift Cable Parts For Light Industrial 1

Chart Notes:

1. Swivels can be used with either 1/4" or 5/16" diameter control rods
2. DH Swivel Joint is available with an integral nut and lock washer to ease assembly.Specify by adding"N" to suffix. Example: DC1005FN





Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX





FAQ

Q: What is the brand of the Control Cables?

A: The brand of the Control Cables is PHIDIX.

Q: What is the model number of the Control Cables?

A: The model number of the Control Cables is PHIDIX.

Q: Where is the Control Cables manufactured?

A: The Control Cables is manufactured in Shanghai.

Q: What are the specifications of the Control Cables?

A: Please contact us for the specifications of the Control Cables.
