Brand Name: | PHIDIX |
Model Number: | DC / DH |
MOQ: | 10 Piece/Pieces |
Price: | Negotiation |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | 888 Piece/Pieces per Month |

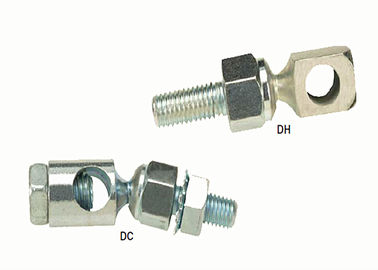

Type DC / DH Rotary Swivel Joint Connecting Products Swivels Rotary
【 Product Description 】
DC/DH Swivels were developed specifically for control applications where infinite adjustment is desired along the length of a connecting rod. They are intended for low load applications and offer in-line misalignments that are suited primarily for push applications. By using a Buna N rubber disc in the assembly, smooth and vibration-free operation is realized. A wide range of sizes and styles are available to match your application. DC Model offers 5/16" hardened self-locking screw.
The DC/DH Control Swivel Series is just one of many motion control devices found within our broad line of rod ends, spherical bearings, ball joints and swivels.
【 Applications 】 Numerous low load mechanical motion transfer applications where infinite adjustment is desired, including: • HVAC • Linear controls • Light industrial applications | 【 Material 】 Ball Joint Head & Base • Low Carbon Steel • Zinc Plated, Clear Chromate Treated • Buna N Rubber Disc (provides vibration-free operation) Self Locking Screw • Low Carbon Steel, Heat Treated • Zinc Plated, Clear Chromate Treated |

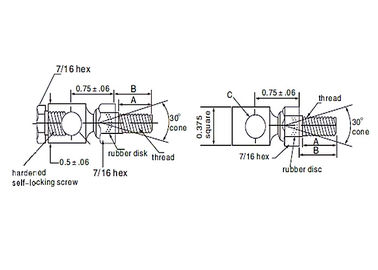

【 DC/DH Control Swivels 】
Part No. | Thread | A | B | C |
DC-3F-312-320 | 10-32 | 0.250 | 0.312 | 0.320 |
DC-4F-437-320 | 1/4-28 | 0.328 | 0.437 | 0.320 |
DC-4F-562-320 | 1/4-28 | 0.500 | 0.562 | 0.320 |
DC-4C-437-320 | 1/4-20 | 0.328 | 0.437 | 0.320 |
DC-4C-562-320 | 1/4-20 | 0.453 | 0.562 | 0.320 |
DC-5F-625-320 | 5/16-24 | 0.516 | 0.625 | 0.320 |
DC-5F-750-320 | 5/16-24 | 0.641 | 0.750 | 0.320 |
DH-4C-437-257 | 1/4-20 | 0.328 | 0.437 | 0.257 |
DC-4F-562-257 | 1/4-28 | 0.500 | 0.562 | 0.257 |
