| Brand Name: | PHIDIX |
| Model Number: | VGS 918 |
| MOQ: | 1 Piece/Pieces |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 888 Piece/Pieces per Month |

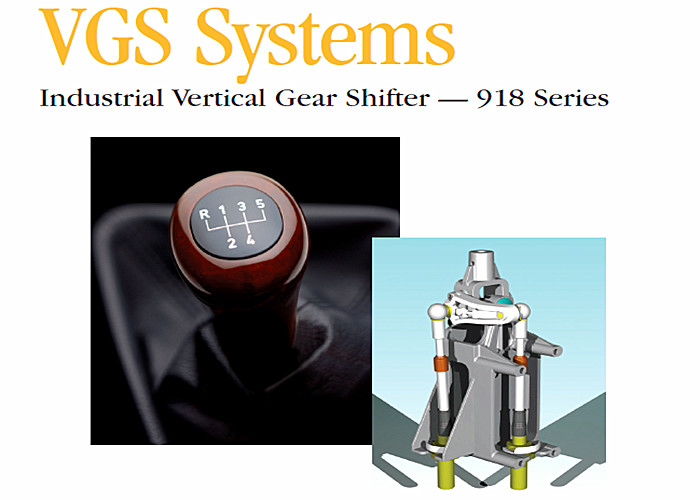

Manual Transmission Systems VGS Systems Industrial Vertical Gear Shifter — 918 Series
Product Description
The transportation industry has for many years searched for areliable shift system to replace the cumbersome and maintenance-prone rod linkages commonly used in cab over trucks and rearengine buses. As the need has increased, vehicles become morerefined to include the complexities of floating cabs, curb noiserestrictions and specialty vehicles of all types.
We has developed a systems approachthat now makes remote shifting easier for both the vehicle builderand the operator.
Based on the proven quality and performance of lowfriction control cables, this system provides a maintenance-freecost-effective approach to remote manual transmission shifting.
We stands ready to solve your mostchallenging shifting problems with a full line of cab units andtransmission connecting hardware to suit most applications.
Features
• Easy installation,adjusiment free
• Maintenance-free life
• Ends gear jump out
• Clean precise shifts
• No knob-to-cab relativemovement in floating cabs
• No action required to tilt cab
• Vibration from drive train isnot transmitted
• Reduced cab noise levels
• Low cost
• Installation design tocustomer requirements
• Flexible capability withdifferent cable end fittings
Applications
• Dash or center console mounted shifter
• Small commercial vehicles
• Servo assisted transmission — bus & coach applications
• Light plant/agricultural vehicles
• Low/medium duty cable applications
Other Related Products
• HGS Systems — 923 Series
• HGS Systems — 925 Series
Specifications
Technical Parameters
Technical Data
• Recommended handle lengths: 160mm to 220mm (6-¼" - 8-¼" approx.)
• Normal working load @ knob = 3kg (6.6 lb.) to 5kg (11lb.)
• Accidental overload @ knob = 100kg (220lb.)
• Operating temperatures: -40°C to 120°C (-40°F to 248°F)
• Weight: 1.1kg (2.4lb.)
----------------------------------------------------------------

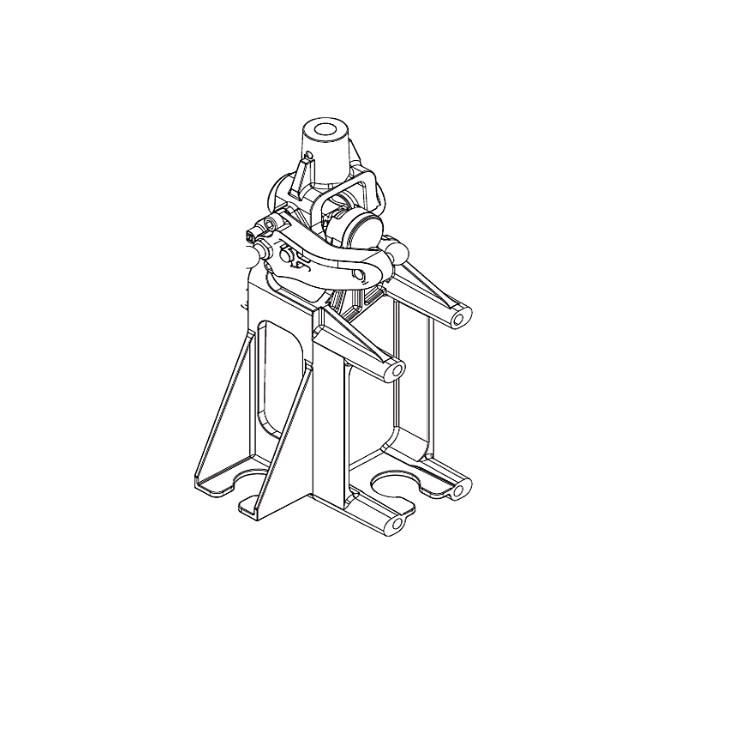

3D CAD Models available upon request.
Material
Pressure Die-Cast Aluminum
Options:
• Fully Sealed Unit Available
• Optional Gaiter Available
• Different End Fittings Available
Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
FAQ
Q: What is the brand of the Control Cables?
A: The brand of the Control Cables is PHIDIX.
Q: What is the model number of the Control Cables?
A: The model number of the Control Cables is PHIDIX.
Q: Where is the Control Cables manufactured?
A: The Control Cables is manufactured in Shanghai.
Q: What are the specifications of the Control Cables?
A: Please contact us for the specifications of the Control Cables.
