Industrial Horizontal Manual Transmission Shifter HGS System 923 Series

1 Piece/Pieces
MOQ
Negotiation
Price
Industrial Horizontal Manual Transmission Shifter HGS System 923 Series
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Easy Installation,adjustment Free
Name: Manual Gear Shift
Material: Aluminum And Plastic
Model Number: 923 Series
Application: Truck / Bus / Special Vehicle
Type: Transmission Control
Highlight:

custom manual shifter

,

car gear shift

Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: HGS923
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Product Description



Manual Transmission Systems HGS Systems Industrial Horizontal Gear Shifter — 923 Series



【 Product Description 】

The transportation industry has for many years searched for a reliable shift system to replace the cumbersome and maintenance-prone rod linkages commonly used in cab over trucks and rear engine buses. As the need has increased, vehicles become more refined to include the complexities of floating cabs,curb noise restrictions and specialty vehicles of all types.
We have  a systems approach that now makes remote shifting easier for both the vehicle builder and the operator.
Based on the proven quality and performance of  low friction control cables, this system provides a maintenance-free, cost-effective approach to remote manual transmission shifting.
We stand ready to solve your most challenging shifting problems with a full line of cab units and transmission connecting hardware to suit most applications.



【 Applications 】
• Floor mounted shifter
• Bus, coach & truck applications
• Servo & non-servo assisted transmissions
• Heavy duty plant/ agricultural vehicles
• Heavy/medium duty cable applications
【 Other Related Products 】
• VGS Systems — 918 Series
• HGS Systems — 925 Series



【 Technical Data
• Recommended handle lengths: 610mm to 760mm (24" - 30" approx.)
• Normal working load @ knob = 3kg (6.6 lb.) to 5kg (11lb.)
• Accidental overload @ knob = 100kg (220lb.)
• Operating temperatures: -40°C to 120°C (-40°F to 248°F)
• Weight: 3.2kg (7.0lb.)
   3D CAD Models available upon request.

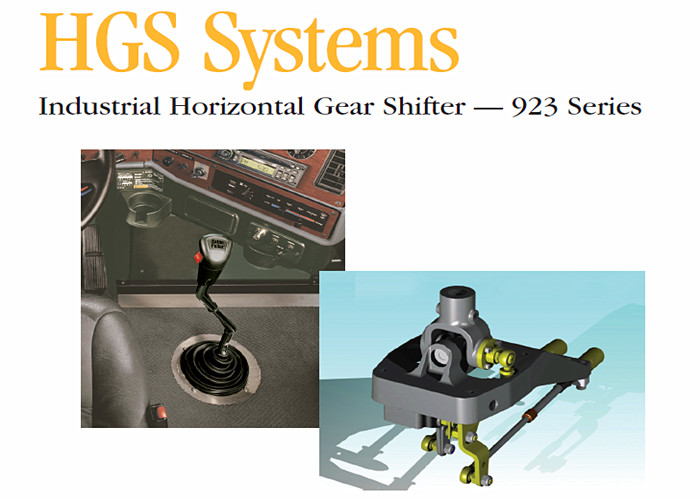

Industrial Horizontal Manual Transmission Shifter HGS System 923 Series 0

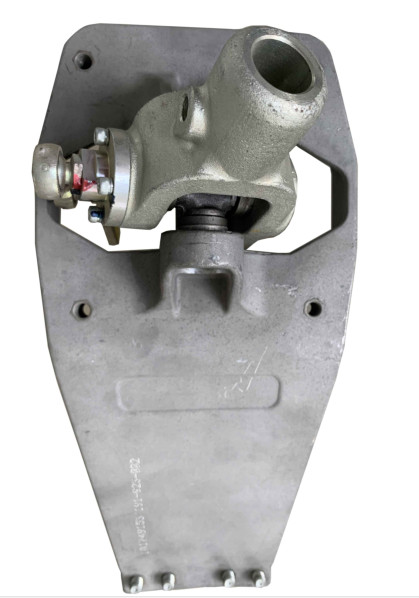

Industrial Horizontal Manual Transmission Shifter HGS System 923 Series 1

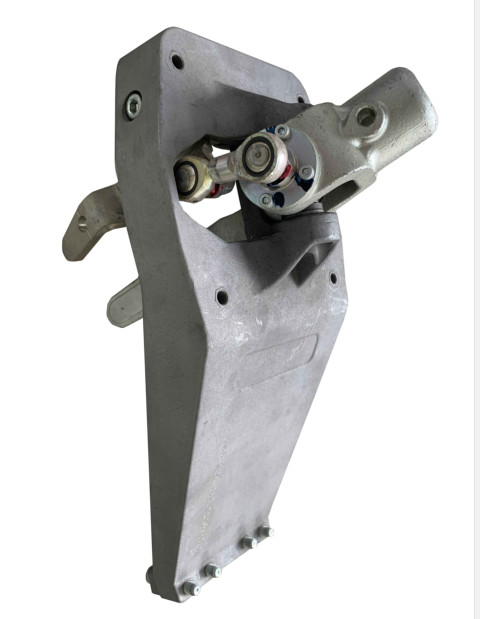

Industrial Horizontal Manual Transmission Shifter HGS System 923 Series 2

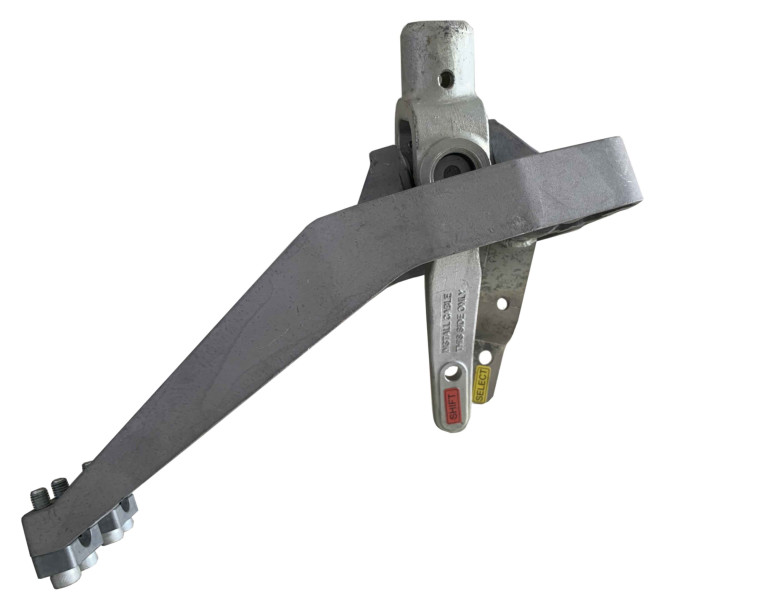

Industrial Horizontal Manual Transmission Shifter HGS System 923 Series 3
