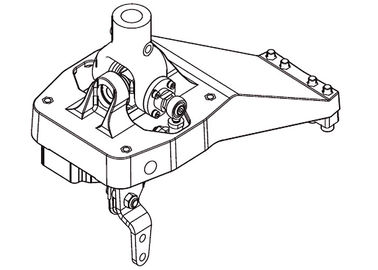

Aluminum / Plastic Manual Transmission Shifter 923 Series Transmission Control Valve

Aluminum / Plastic Manual Transmission Shifter 923 Series Transmission Control Valve

Brand Name: PHIDIX
Model Number: HGS923
MOQ: 1 Piece/Pieces
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Name:
Manual Transmission System Gear Shifter 923 Series Transmission Control Valve
Recommended Handle Lengths:
610mm To 760mm
Operating Temperatures:
-40°C To 120°C (-40°F To 248°F)
Model Number:
923 Series
Material:
Pressure Die-Cast Aluminum
Application:
Truck / Bus / Special Vehicle
Packaging Details:
carton or wood case
Supply Ability:
888 Piece/Pieces per Month
Highlight:

manual gear shift

,

car gear shift

Product Description



Manual Transmission System Gear Shifter 923 Series Transmission Control Valve





Product Description

The series cab units are horizontal system (HGS) and vertical system (VGS) with pull and push control cables. Applicable to the special needs of different customers together with the control cables.

The horizontal gear shifter of the 923 series is designed to provide a reliable shift system and replace the rod linkages. The rod linkages are often demanding in terms of maintenance and prone to malfunctions. These linkages are often used in trucks and buses with the motor positioned in the back of the vehicle. This new gear shifter provides easy remote shifting both to vehicles and their operators.

The entire system is based on our low friction control cables and it provides a cost effective and maintenance free manual remote gear shifting. We are able to solve the most demanding shifting demands you have. It features the entire palette of cab units which can be connected to all sorts of hardware in order to suit the designed application.





Features

• Easy installation,adjustment free
• Maintenance-free life
• Ends gear jump out
• Clean precise shifts
• No knob-to-cab relative movement in floating cabs
• No action required to tilt cab
• Vibration from drive train is not transmitted
• Reduced cab noise levels
• Low cost
• Installation design to customer requirements
• Flexible capability with different cable end fittings





Applications

• Center console mounted shifter

• Servo & non-servo assisted transmissions

• Bus, coach & truck applications

• Heavy/medium plant/agricultural vehicles

• Heavy/medium duty cable applications





Specifications

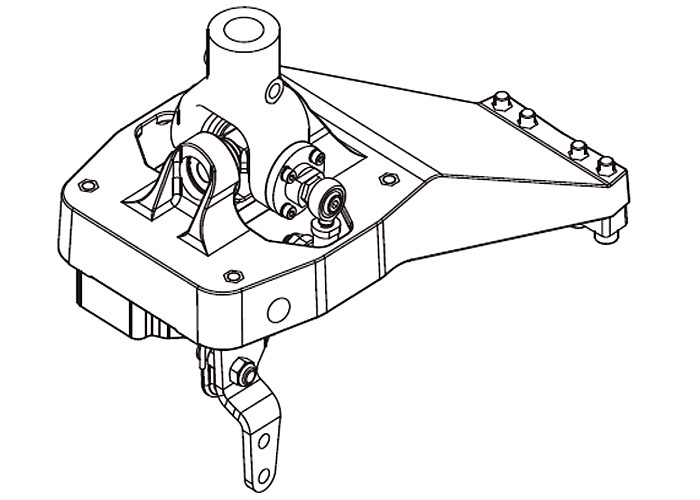

Aluminum / Plastic Manual Transmission Shifter 923 Series Transmission Control Valve 0





Material

Housing
Pressure Die-cast Aluminum
Yoke
Investment Cast Steel
Options
• Fully Sealed Unit Available
• Gaiter Available
• Different End Fittings Available
• Right & Left Hand Configurations
• With or Without Bias Spring
• Adjustable Bias Spring Position
• Variable Ratio Between 4:1 to 5:1

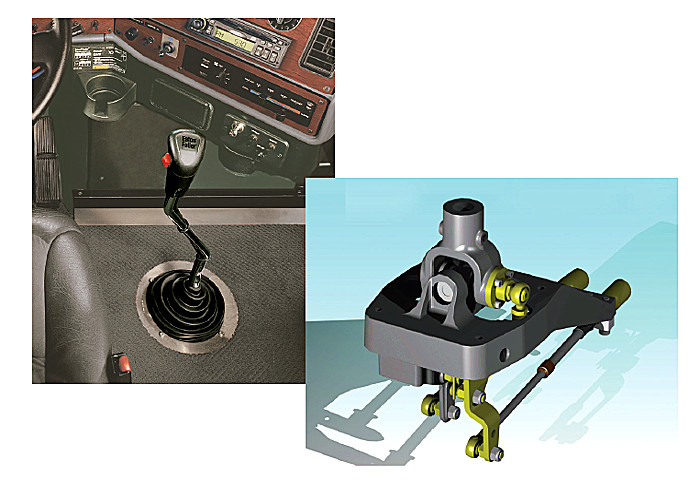

Real Picture



Aluminum / Plastic Manual Transmission Shifter 923 Series Transmission Control Valve 1







Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
