Product Description
0.375" square-head swivel joints for heavy-duty applications. Buna N rubber absorbs shocks and aligns rods in non-J490 systems. Compatible with spherical bearings for low-load, maintenance-free operation. Ideal for compact push-pull mechanisms.
Technical Parameters
| Product Name | DH Control Swivels |
| Specification | Control Swivels |
| Material | Ball Joint Head and Base – • Low carbon steel • Zinc plated, clear chromate treated • Buna N rubber disc Self-locking screw – • Low carbon steel, heat treated • Zinc placed, clear chromate treated |
| Features |
• Suited to low load applications where infinite adjustment is desired along the entire length of the connecting rod • Can be used with either 1/4" or 5/16" diameter control rods• Head size: DH — .375" square • Special set screws (self-locking and surface hardened for wear resistance) provide increased holding strength • Integral nut and lock washer optionally available • Can be used in the wide range of temperatures:-60°F — 250°F (-51°C — 121°C) • Custom assemblies can be built to your specifications • DH does not meet J490 specs |
| Brochure | Free samples are available if all sizes are the same as what we have available, if not, please contact me for a cost effective solution |
| Belivery Time | 7-40 working days |
| Applications | Numerous low load mechanical motion transfer applications where infinite adjustment is desired, including: • HVAC • Linear controls • Light industrial applications |
| Documentation | DC-DH-Control-Swivels.pdf |

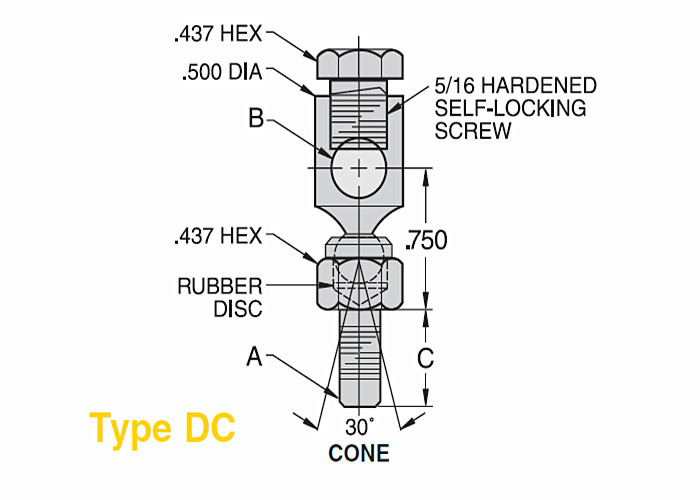

Chart Notes:
1. Swivels can be used with either 1/4" or 5/16" diameter control rods

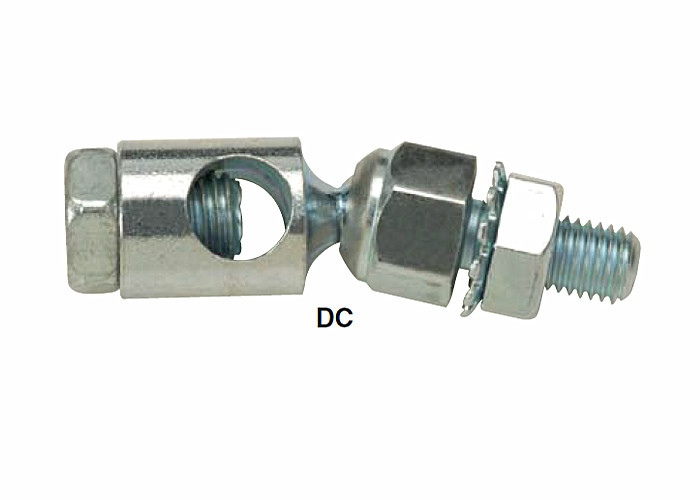

2. DH Swivel Joint is available with an integral nut and lock washer to ease assembly. Specify by adding"N" to suffix. Example: DC1005FN
