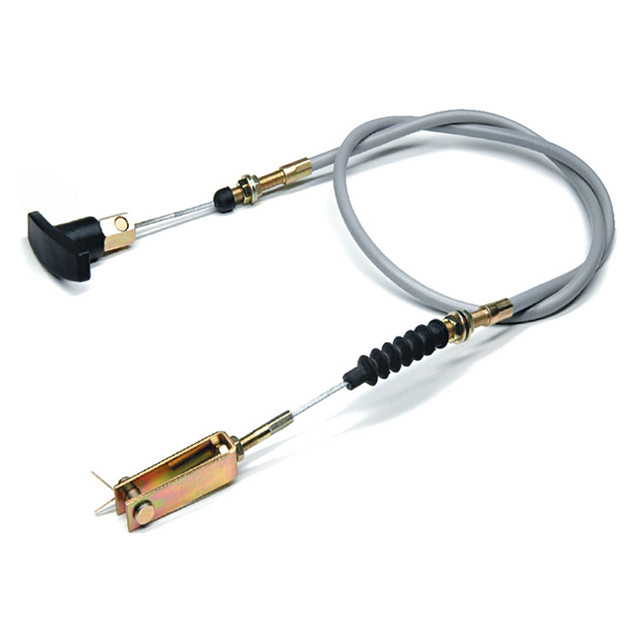

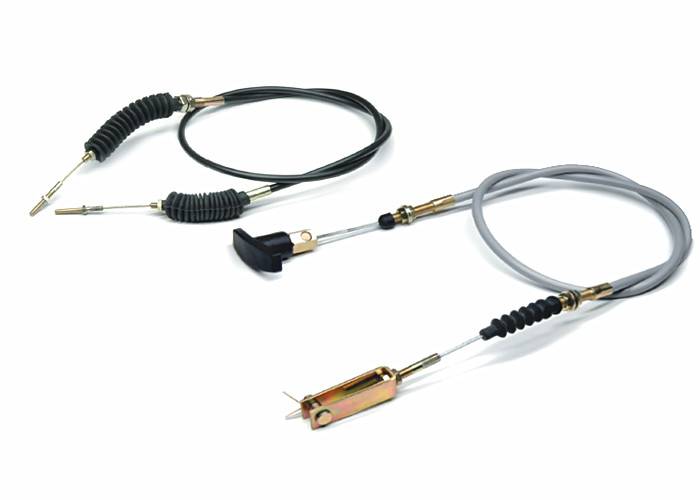

High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable

High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable

Products - Control Cable Assembly
  • High Light

    push pull cable assemblies

    ,

    push pull cable parts

  • Features
    Multi-strand , High - Tensile
  • Name
    Push Pull Cable Assemblies
  • Applications
    Hand Brake Cable / Engine Stop Cable
  • Combinations W / Loads
    0kg — 1000kg
  • Material
    Plated Steel Standard , Optional Stainless Steel
  • Type
    Transmission Control
  • HS Code
    87084050/87084020
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable

  • High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable
  • High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable
Get Price Contact Now



OEM China Precision Machining Plated Steel Standard Flexible Drive Shaft Control Cable Assembly



【 Product Description 】

Commercial cost effective product range for pull only applications.
This series offers a wide range of sizes and combinations, for applications with loads from 0kg to 1000kg. The inner cable is a multi-strand, high-tensile steel cable, tinned or galvanized for corrosion resistance. Armored strands and solid wires are also available. The outer is a flexible conduit comprising one or two high-tensile steel wires, wound spirally to give maximum compression strength. All sizes are available covered with either polypropylene or PVC for protection, or uncovered. Some sizes can be fitted with high density polypropylene liner for extra smooth low-friction operation.



【 Features 】
• Multi-strand, high-tensile,steel cable
• Polypropylene, PVC or uncoated
• High density polypropylene liner  available
• Can fit a variety of accessory components, available in both UNF and metric thread

   options
• Wide range of sizes combinations w/loads 0kg — 1000kg
• Armored strands and solid wires  available



【 Other Related Products 】
• Push-Pull 4B



【 Pull- Only T-Flex 】

HB .375 Headed Bush
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 0
EP End Plain
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 1
HB .500 Headed Bush
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 2
EC End Capped
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 3
SP Sleeve Plain
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 4
RB Reverse Bush (Die Cast)
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 5
SS Sleeve Screwed
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 6
D Dashboard
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 7
Knobs (Motif,Tee, Plain)
High Tensile Flexible Drive Shaft Cable , Universal Control Cables Engine Stop Cable 8
All line art dimensions are represented in inches
