High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly

Brand Name: PHIDIX
Model Number: Customized
MOQ: 1 piece
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece / Pieces per Month
Detail Information
Place of Origin:
China
Certification:
IATF16949
Features:
Multi-strand , High - Tensile
Name:
Flex Control Cable
Applications:
Clutch Cable / Throttle Cable
Wide Range Of Sizes Combinations W/Loads:
0kg — 1000kg
Material:
Plated Steel Standard , Optional Stainless Steel
Type:
Transmission Control
HS Code:
87084050/87084020
Packaging Details:
carton or wood case
Supply Ability:
888 Piece / Pieces per Month
Highlight:

push pull control cable

,

gear shift control cable

Product Description

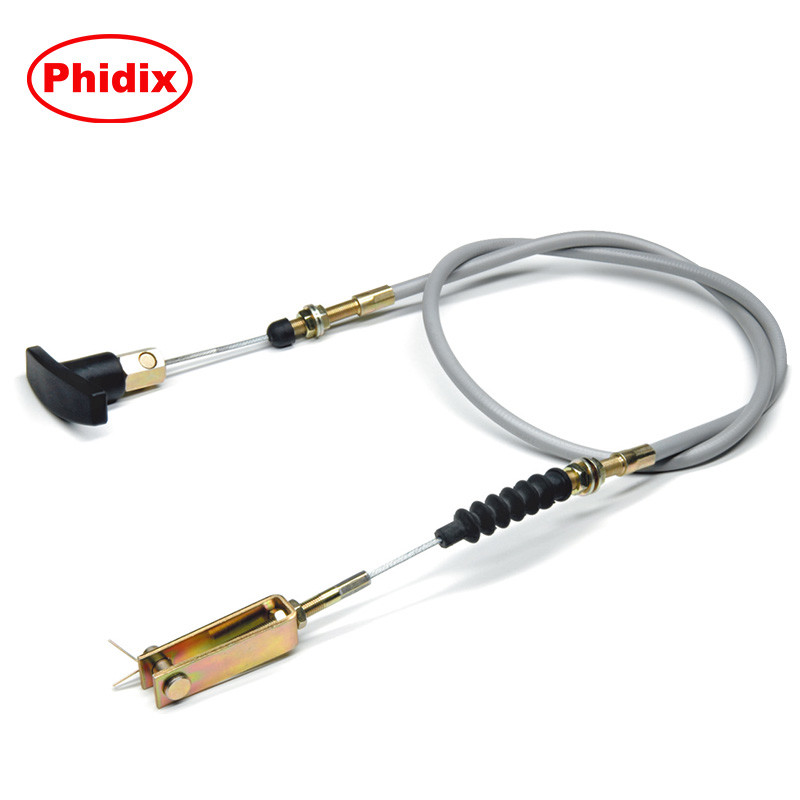

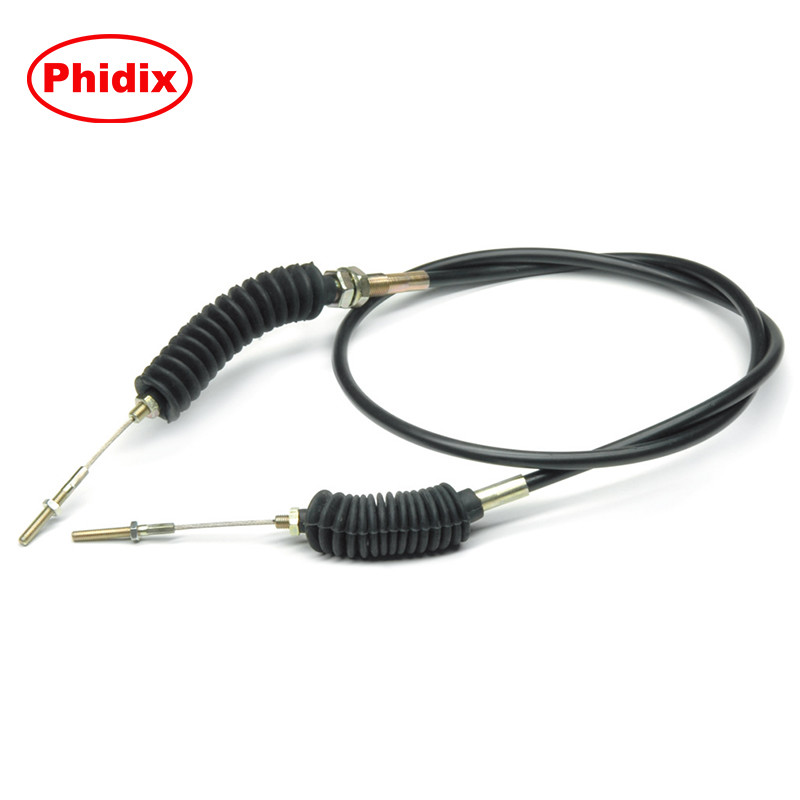

Mechanical Control Cable Pull - Only T - Flex Industrial Control Cable Assembly Speed Changing Cable






Product Description

Commercial cost effective product range for pull only applications.

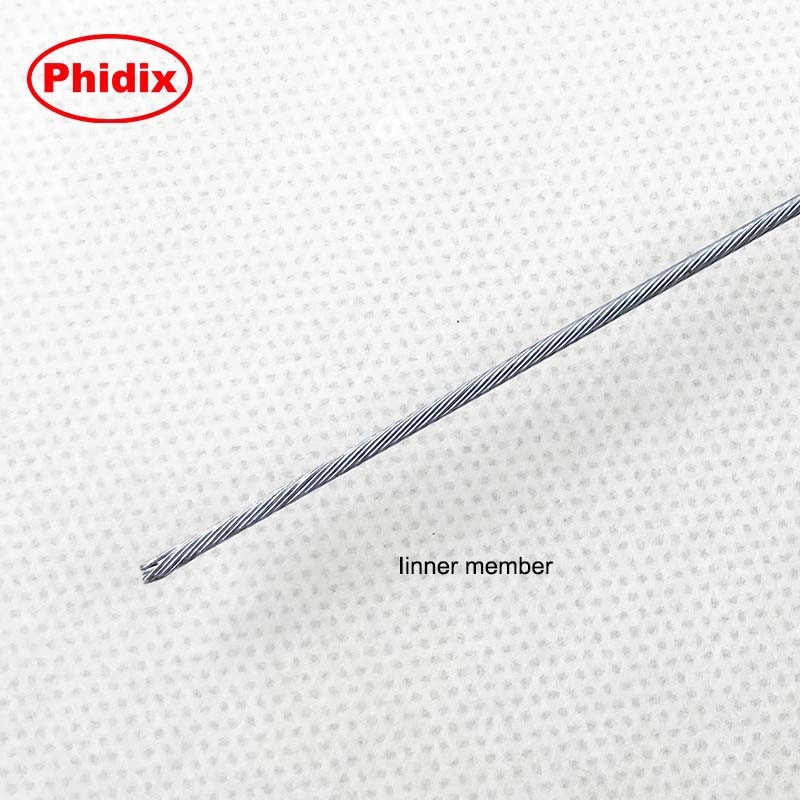

This series offers a wide range of sizes and combinations, for applications with loads from 0kg to 1000kg. The inner cable is a multi-strand, high-tensile steel cable, tinned or galvanized for corrosion resistance. Armored strands and solid wires are also available. The outer is a flexible conduit comprising one or two high-tensile steel wires, wound spirally to give maximum compression strength. All sizes are available covered with either polypropylene or PVC for protection, or uncovered. Some sizes can be fitted with high density polypropylene liner for extra smooth low-friction operation.





Features

• Multistrand, high-tensilesteel cable

• Polypropylene, PVcor uncoaled

• High density polypropylene liner available

• Can fit a variety of accessory components, available in both UNF and metric thread options

• Wide range of sizes combinations wioads 0kg-1000kg

• Arnored strands and solidWres avalalle

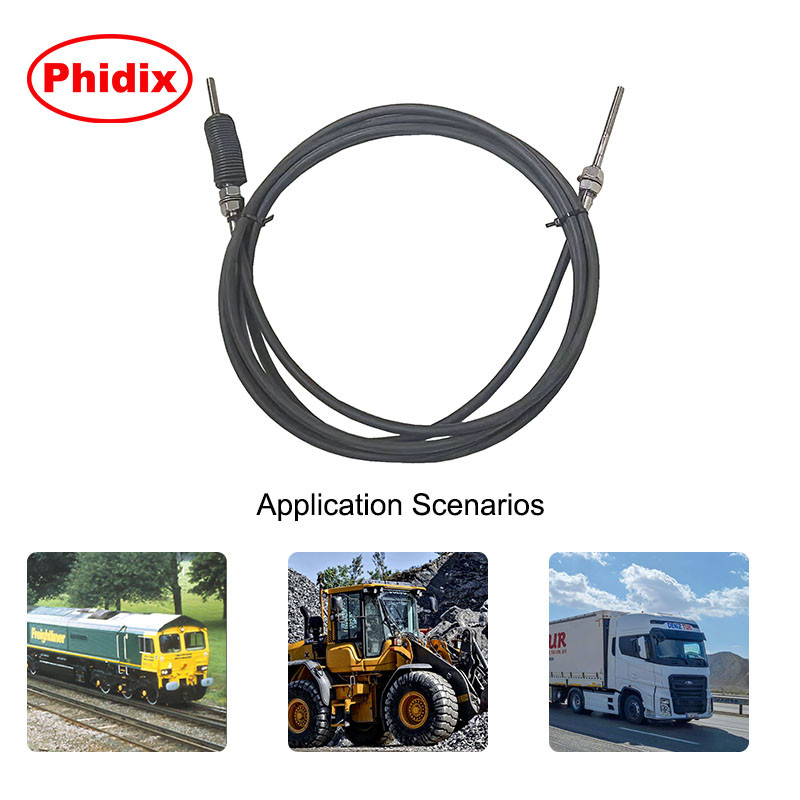

Applications

• Clutch cable
• Throttle cable
• Hand brake cable
• Engine stop cable





Technical Parameters

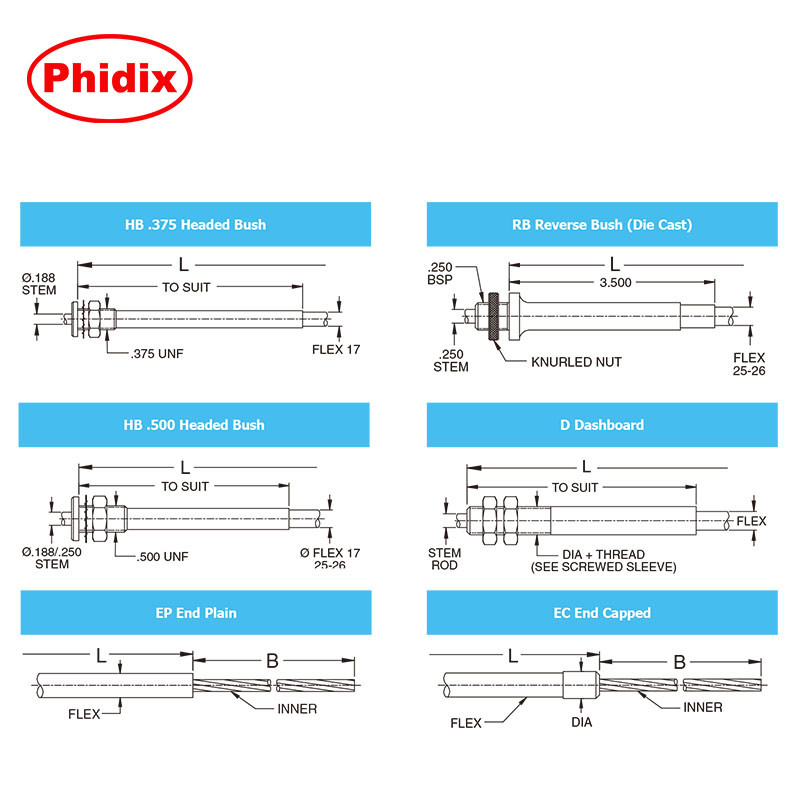

HB .375 Headed Bush

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 0



EP End Plain

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 1



HB .500 Headed Bush

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 2



EC End Capped

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 3

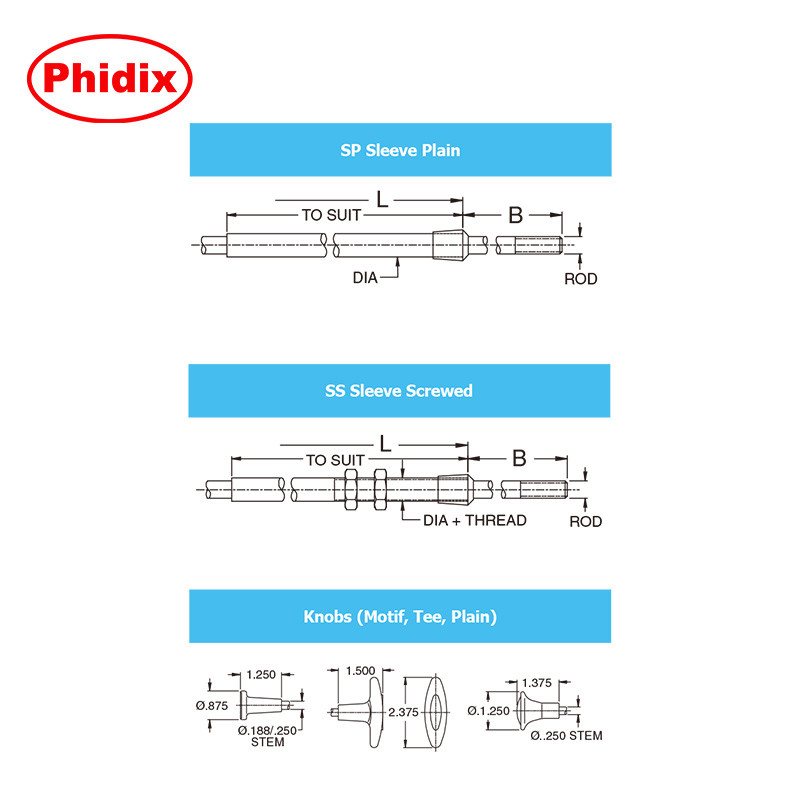

SP Sleeve Plain

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 4



RB Reverse Bush (Die Cast)

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 5



SS Sleeve Screwed

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 6



D Dashboard

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 7



Knobs (Motif,Tee, Plain)

High Tensile Industrial Control Cables , Pull - Only T - Flex Control Cable Assembly 8

All line art dimensions are represented in inches





Material

• Plated Steel Standard, Optional Stainless Steel
• Pull Only Twin-V High Compression Load Conduit ,Lined and Unlined





Linkages

All kinds of connecting products, including ball joints, ball bearings, and all kinds of connections, widely used in truck, passenger car, construction machinery and other kinds of motion control system, such as engine control, electronic equipment and all kinds of program control mechanism. Metric inch optional, high precision, long service life.





Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX

Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX





FAQ

Q: What is the brand of the Control Cables?

A: The brand of the Control Cables is PHIDIX.

Q: What is the model number of the Control Cables?

A: The model number of the Control Cables is PHIDIX.

Q: Where is the Control Cables manufactured?

A: The Control Cables is manufactured in Shanghai.

Q: What are the specifications of the Control Cables?

A: Please contact us for the specifications of the Control Cables.
