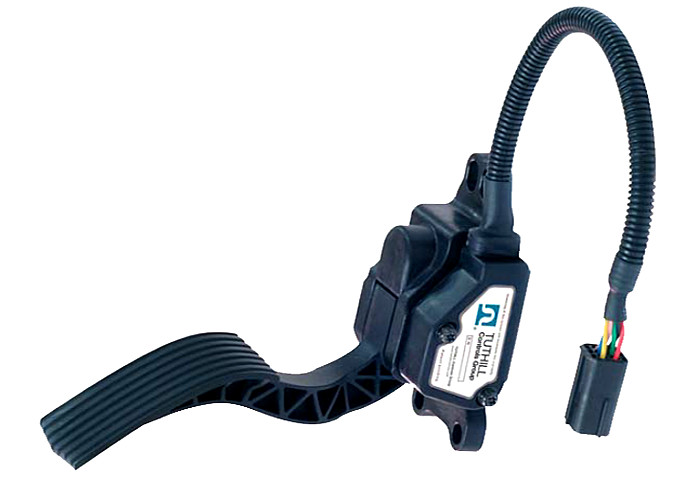

Professional Electronic Accelerator Pedal TCS4 Series For Farm Equipment

Professional Electronic Accelerator Pedal TCS4 Series For Farm Equipment

  • High Light

    electronic throttle pedal

    ,

    foot accelerator pedal

  • Features
    Unique Non-contact Sensor / Simple And Robust / Small Angular Movement To Give Full Range Of Output
  • Name
    Suspended Pedal Model TCS4 Series Electronic Suspended Industrial Pedal Foot Control
  • Linearity
    <1%
  • Signal Correlation
    <2%
  • Applications
    Trucks / Buses / Construction Equipment / Farm Equipment / Material Handling Equipment
  • Normal Operating Temperature
    -40°C To +85°C
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    TCS4
  • Minimum Order Quantity
    1 Piece/Pieces
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

Professional Electronic Accelerator Pedal TCS4 Series For Farm Equipment


Suspended Pedal Model TCS4 Series Electronic Suspended Industrial Pedal Foot Control

【 Product Description 】
The electronic foot pedals are designed primarily for the control of modern diesel and gasoline powered vehicles having sophisticated electronic managements systems. The versatility of their design also makes them well suited for controlling electric vehicles and modern hydraulic systems.
The electronic accelerator pedals are based around a unique non-contact angular displacement sensor. This innovative sensor design has resulted in development of simple and reliable pedal assemblies that can be easily incorporated into virtually any type of vehicle. The sensor is available with a wide range of different signal outputs and is compatible with most electronic engine management systems in use today.



【 Applications 】
• Trucks
• Buses
• Construction Equipment
• Farm Equipment
• Material Handling
   Equipment

【 Features 】
• Unique non-contact sensor
• Simple and robust
• Small angular movement to give full range of output
• Compatible with all popular electronic engine management
   systems
• Designed to meet specific customer requirements

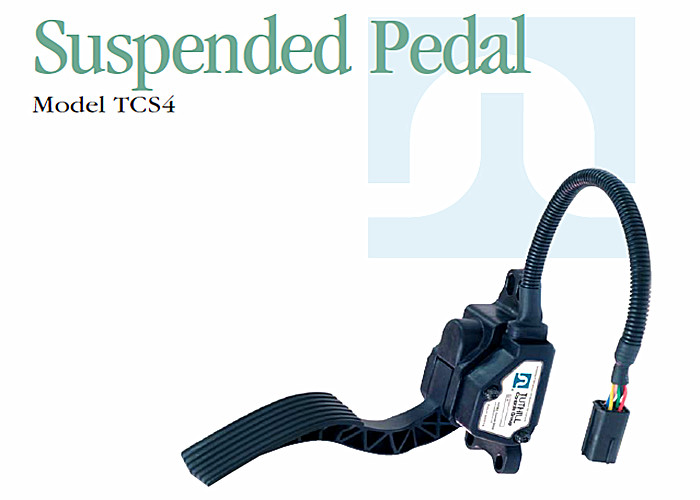

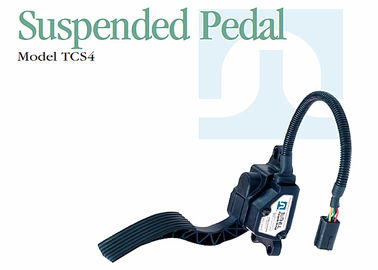

【 Model TCS4 】
Professional Electronic Accelerator Pedal TCS4 Series For Farm Equipment 0


【 Durability & Environmental Performance 】

Normal Operating Temperature -40° C to +85° C
Life Cycles >10,000,000 Full Cycles >80,000,000 Dither Cycles
Vibration 20 Hours 20 to 200 Hz in each axis: 1G axial, 5G horizontal, 8G vertical
High Temperature +120° C for 96 Hours
Low Temperature -40° C for 96 Hours
Salt Spray 96 Hours (5%NaCl)
Humidity 200 Hours @ 95% RH
Combined Cycle 200 Hours
Water Ingress IP67
Pressure Wash 10 mins 125° C @ 150 BAR Pressure
EMI ISO11452-2,5@150V/M 95/54/EC
EM Emissions CISPR25


【 Electrical Characteristics 】

Input Voltages 5v+/-10%, 12/24v, 24/48v, 72/80v
Linearity <1%
Signal Correlation <2%
Current Requirements From 10mA
Signal Outputs As required, contact factory


All dimensions are in millimeters
