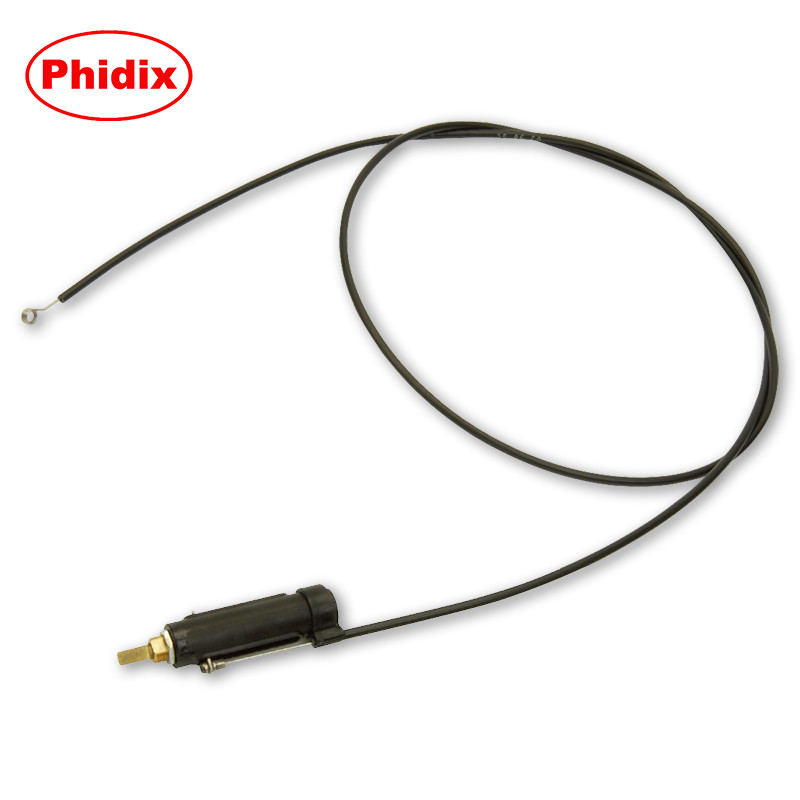

Phidix Industrial Vent Control Cable – Rotary-to-Linear, Non-Locking Assembly
In compact mechanical systems where space is limited but reliable actuation is essential—such as HVAC vent controls or heater valve operation—Phidix’s non-locking rotary control cable assembly provides a clean, mechanical solution. Designed to convert a 270° manual rotation into 1.5" of linear push-pull travel, it is ideal for vent actuation in industrial vehicles, off-road equipment, and specialty machinery.
This unit combines stainless steel inner wire, brass shafting, and high-performance plastics, delivering consistent performance even in environments with vibration, temperature fluctuation, or dust.
Key Features
| Feature |
Description |
| 270° Input Rotation |
Converts into up to 1.5" linear push-pull travel |
| Non-Locking Mechanism |
Automatically returns or allows spring reset—ideal for momentary vent actuation |
| Compact Installation |
7/16-28 UNEF thread with flats for panel or bracket mounting |

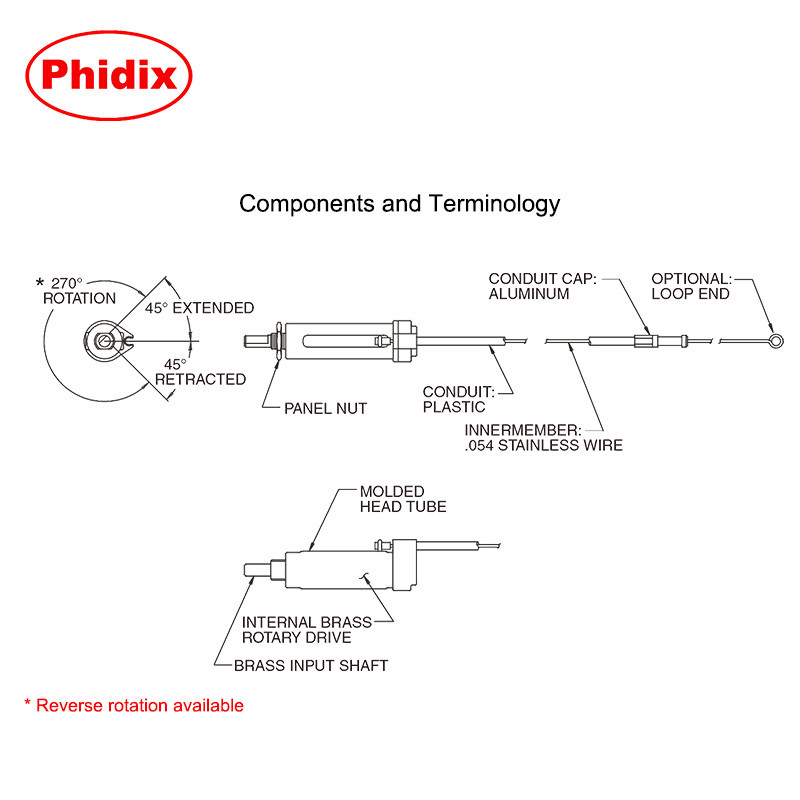

| Rugged Materials |

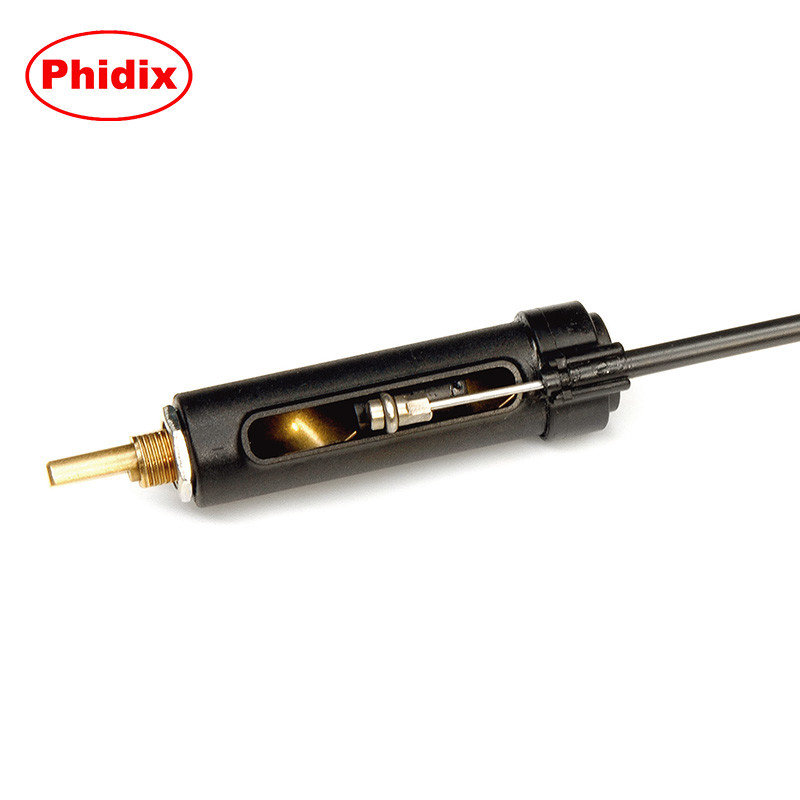

Brass input shaft, high-performance plastic housing, SS inner wire |
| Custom Output Ends |
Straight wire or loop end available |

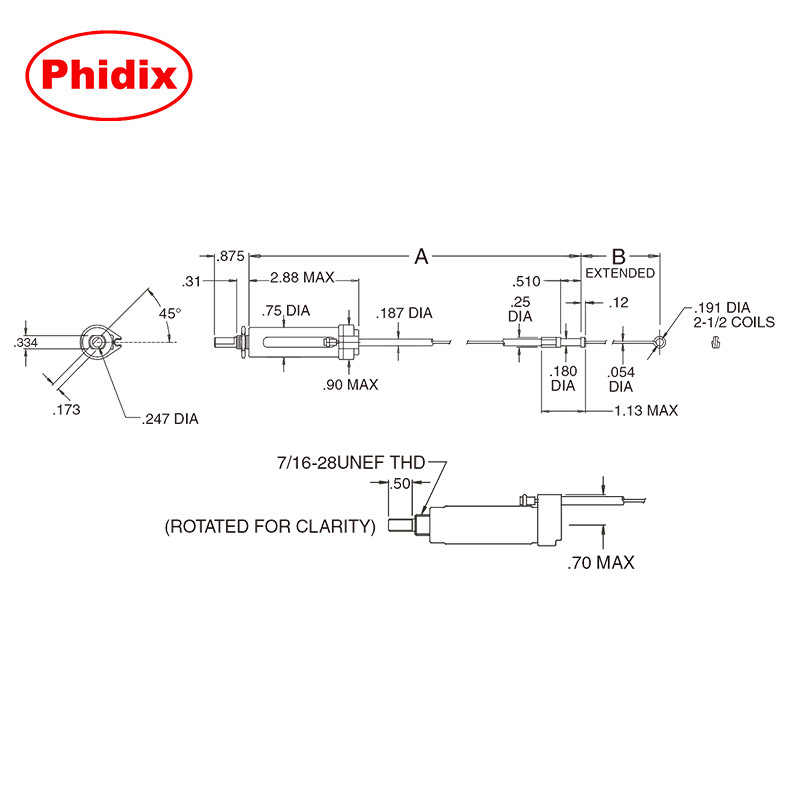

Technical Specifications
| Parameter |
Value |
| Travel |
1.5 in (38 mm) |
| Input Rotation |
270° |
| Torque Efficiency |
4 in·lb max to move 5 lb load |
| Operating Temperature |
-25°F to 160°F (-32°C to 71°C) |
| Shaft |
1/4" diameter with flat |
| Mounting Thread |
7/16-28 UNEF |

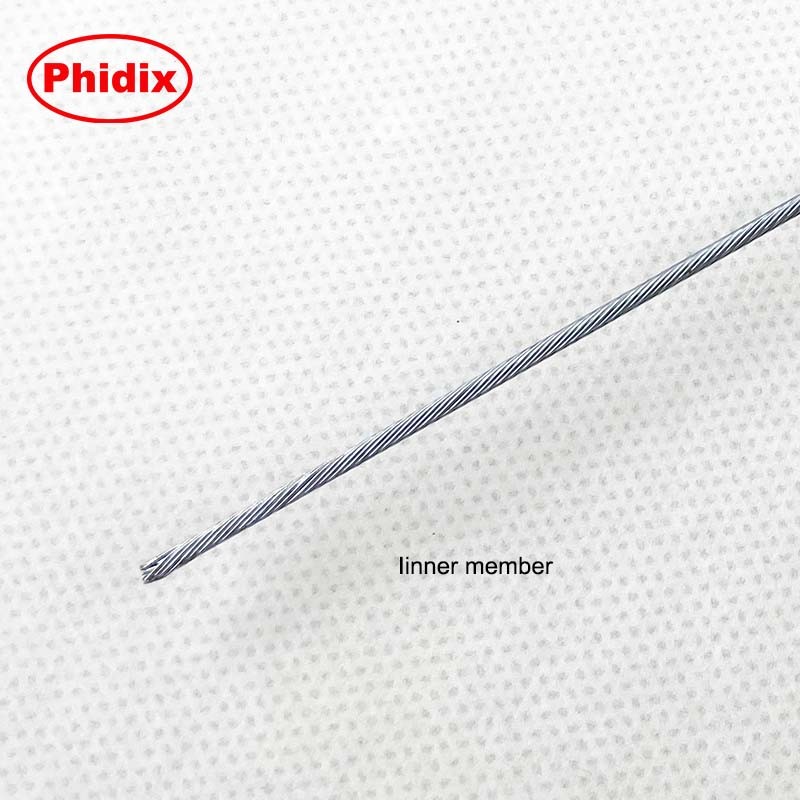

| Inner Wire |
0.054" stainless steel |
| Conduit |
High-performance plastic |
| Output End |
Straight or loop, customizable |

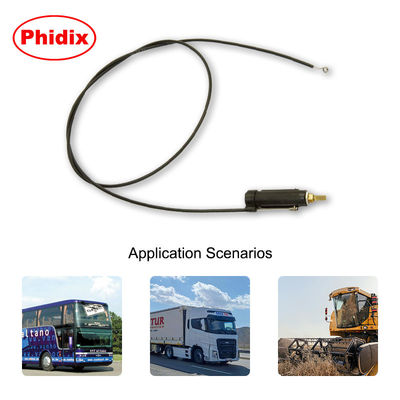

Where It Works Best
Phidix rotary control cables are used in industries where compact, manual control over ventilation or heating systems is required. Applications include:
• HVAC vent flap control for construction or off-road equipment
• Heater valve control in agricultural or mining machinery
• Dashboard air diverter switches for utility vehicles
• Louver and damper actuation in industrial enclosures
OEM-Ready Customization
As a custom cable specialist, Phidix Motion Controls offers tailored options including:
• Output types (loop, straight, threaded)
• Actuation direction (CW/CCW to extend)
• Cable length, shaft length, knob compatibility
• Dust caps, mounting methods, conduit colors
Need a rotary cable assembly tailored to your system? Phidix engineers can support your drawing, trial, and production needs.
Benefits at a Glance
• Converts rotary input to linear output without electronics
• Rugged design for mobile and industrial environments
• Fully configurable for heater and HVAC applications
• Reliable Phidix engineering and consistent OEM support
FAQ
Q1: Is this cable suitable for outdoor/off-road use?
Yes. The plastic conduit and stainless steel wire resist moisture, dust, and corrosion.
Q2: Can I specify actuation direction?
Yes. Choose clockwise or counterclockwise rotation for the “extend” motion.
Q3: Can this be mounted on panels?
Yes. The head features a 7/16-28 UNEF threaded body with two flats for secure mounting.
Q4: Does Phidix support custom lengths and terminations?
Absolutely. We specialize in OEM and custom assemblies with short lead times.
Ready to Integrate? Talk to Phidix.
From construction vehicle HVAC control to agricultural heater systems, Phidix’s rotary-to-linear control cable offers a mechanical solution that’s compact, reliable, and fully customizable.
→Speak with a Phidix Engineer
