Twist Locking Control Cable Head , Plated Carbon Steel Locking Push Pull Cable Head

Plated Carbon Steel Corrosion- Proof Mechanical Control Cable Heads Twist Lock Industrial Push-Pull Control Head

【 Product Description 】

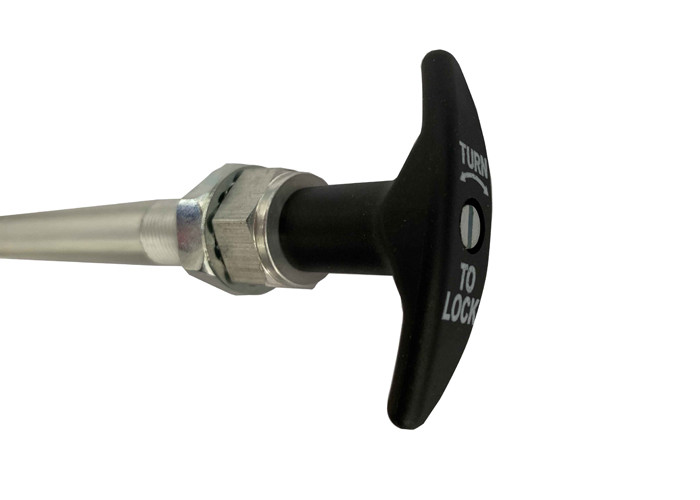

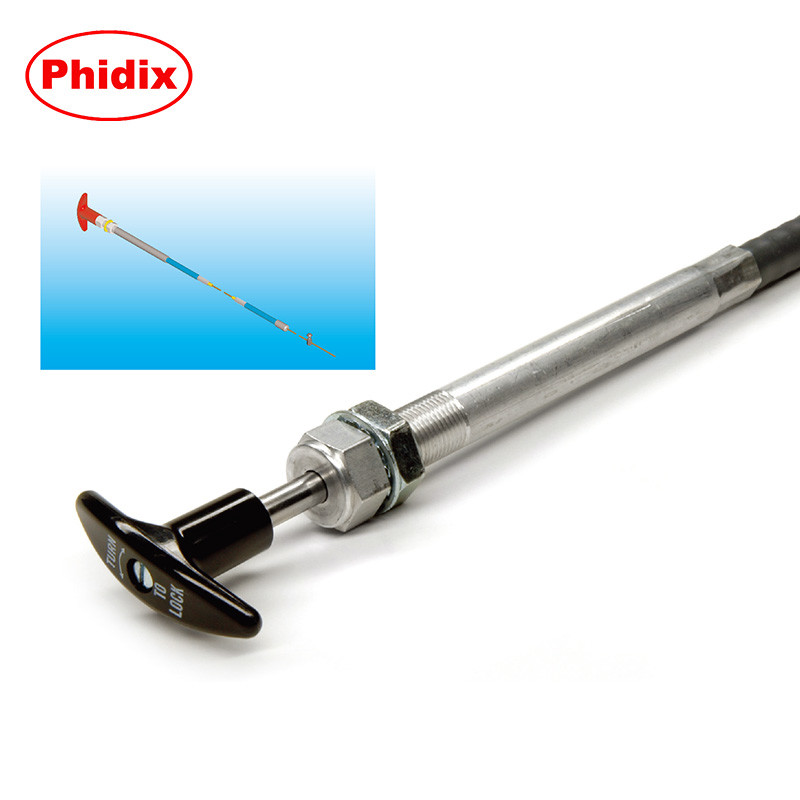

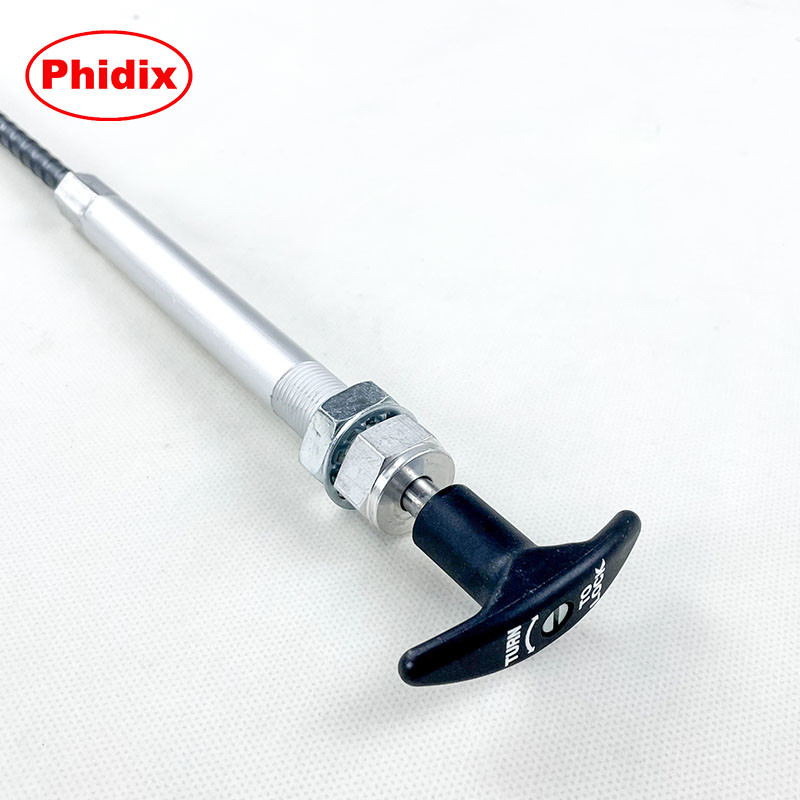

The Twist Lock Control Heads feature a plated carbon steel Control Heads having a reliable protection against corrosion. This tool consists of a single movable part attributed by a simple but durable construction. The device has a T handle that is capable of travelling the full length of the control and will locked at its maximum distance. This T handle can carry loads having weight of 100 lb or 44 g in just a 1/8 turn in either direction.
Moreover, this Twist Lock Control Heads is available in various of selection to provide application necessities.

【 Twist Lock 】

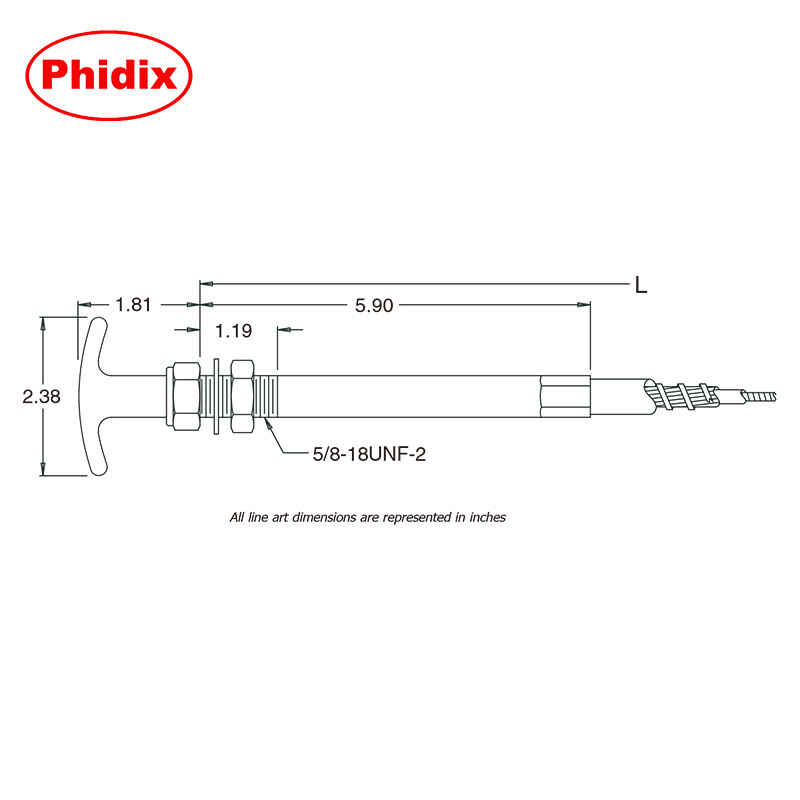

All line art dimensions are represented in inches

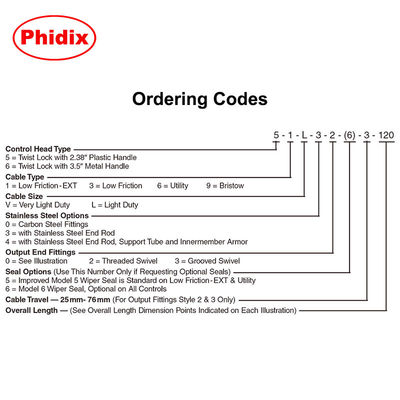

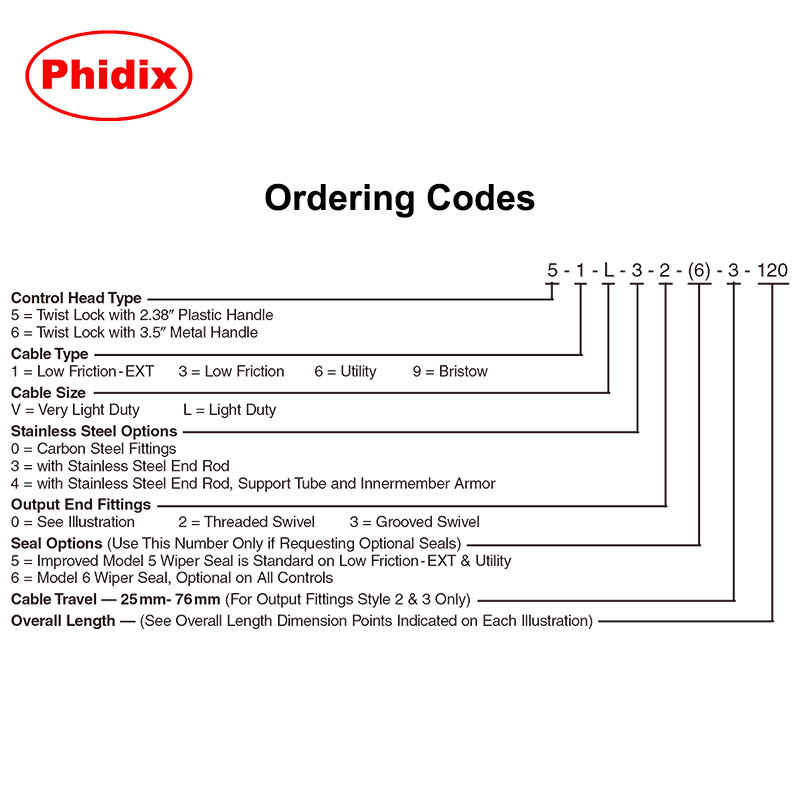

【 Ordering Codes 】

Control Head Type —— 5
5 = Twist Lock with 2.38 Plastic Handle
6 = Twist Lock with 3.5 Metal Handle

Cable Type —— 1
1 = Low Friction-EXT     3 = Low Friction      6 = Utility        9 = Bristow

Cable Size —— L
V = Very Light Duty      L = Light Duty

Stainless Steel Options —— 3
0 = Carbon Steel Fittings
3 = with Stainless Steel End Rod
4 = with Stainless Steel End Rod, Support Tube and Innermember Armor

Output End Fittings —— 2
0 = See Illustration 2 = Threaded Swivel 3 = Grooved Swivel

Seal Options —— (6)

(Use This Number Only if Requesting Optional Seals)
5 = Improved Model 5 Wiper Seal is Standard on Low Friction-EXT & Utility
6 = Model 6 Wiper Seal, Optional on All Controls

Cable Travel — 25mm- 76mm —— 3

(For Output Fittings Style 2 & 3 Only)

Overall Length —— 120

(See Overall Length Dimension Points Indicated on Each Illustration)
