Twist-to-Lock Control with Reliable Position Holding

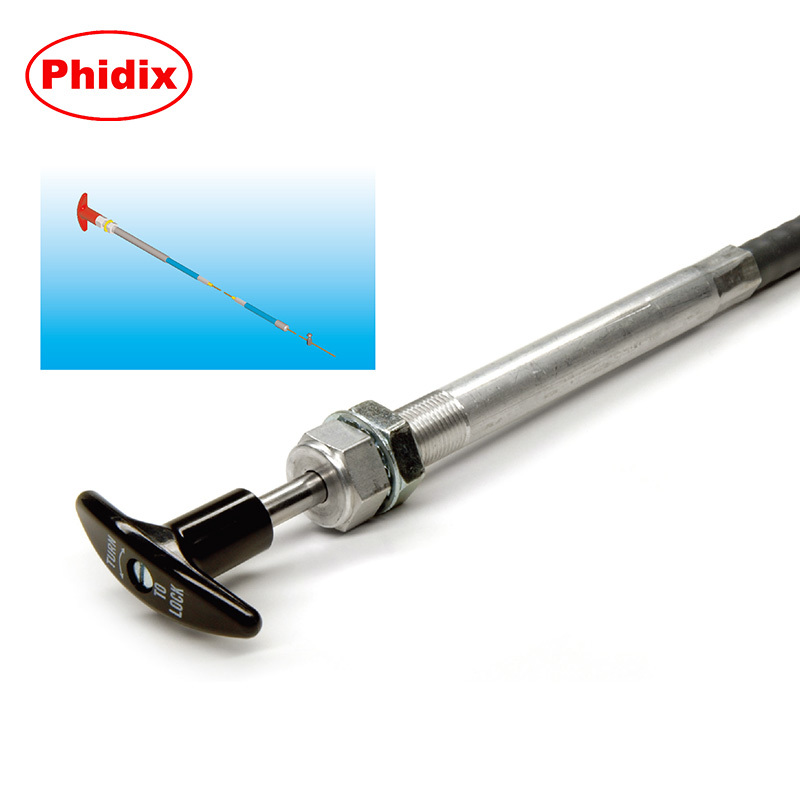

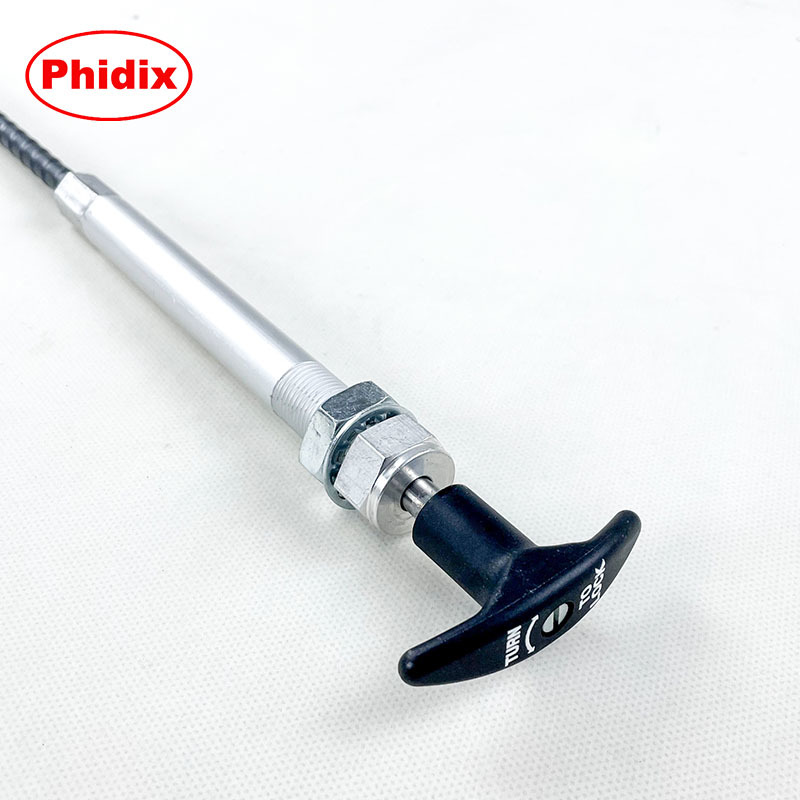

The Phidix Twist-Lock Push-Pull Control Cable series is engineered for applications requiring secure mechanical locking of the control position. Through a simple quarter-turn twist of the T-handle, the cable locks in place, maintaining its position even in high-vibration environments.
This structure is especially suited for throttle/choke control, PTO systems, engine shut-off mechanisms, and valve operations in sectors like heavy-duty trucks, construction machinery, agricultural vehicles, and marine engines.
Whether you need full cable assemblies or customized knob, core, or output-end configurations, Phidix offers flexible manufacturing that meets your specific installation and durability needs.
Key Features
• Twist-to-Lock Mechanism – Locks cable position with a quarter-turn twist, preventing unintended movement from vibration or shock.
• Secure Manual Holding – Ideal for applications where a fixed actuator position must be manually maintained.
• Modular Configuration – Available with various shaft sleeves (green/black), knob colors (black/red), core types (wire rope or standard core), and output ends (threaded/U-fork).
• Rugged Construction – Designed for demanding industrial and vehicle environments; vibration-resistant and corrosion-tolerant.
• OEM Ready – Built to support automotive standards such as IATF 16949; customizable for bulk/serial applications.
Typical Applications
| Application | Function |
| PTO (Power Take-Off) Systems | Lock the position of PTO engagement control |
| Engine Shutdown Cables | Ensure secure disengagement and position hold |
| Manual Throttle/Choke Control | Maintain fixed RPM or startup choke position |
| Valve Positioning | Lock fluid flow or hydraulic valve settings |
| Parking Brake Mechanisms | Prevent rollback in heavy vehicles |
| Remote Control Panels (Cabin/Box) | Lockable input for operator-actuated systems |
Why it matters: In environments with vibration, slope, or continuous mechanical load, non-locking cables may slip. Twist-lock solutions ensure safety and consistent operation.
Structural Options
To meet the diverse needs of OEMs and integrators, Phidix offers multiple structural configurations under the Twist-Lock family:
| Variant | Distinctive Feature | Page Link |
| U-Fork Output Structure | Simplified attachment to linkages or levers | U-Fork Version |
| Wire Rope Inner Core | Higher flexibility for routing | Wire Rope Version |
| Green Standard Shaft Sleeve | Visual OEM identification, corrosion resistant | Green Shaft Version |
| Black Standard Shaft Sleeve | Universal control cable structure | Universal Version |
Looking for red handle or heat-resistant options? Phidix supports visual-coded and material-specialized builds. Contact us for custom solutions.
Technical Specifications
| Parameter | Value/Option |
| Locking Type | Manual Twist-to-Lock (T-handle) |
| Handle Styles | Black T-handle, Red T-handle (optional) |
| Shaft Sleeve Options | Black / Green ABS, optional custom colors |
| Inner Core | Standard core / Flexible wire rope |

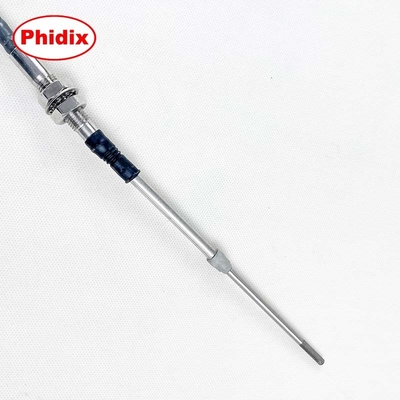

| Output End | Threaded rod, U-fork, grooved pin |
| Stroke Range | Standard 2"–3", customizable |
| Cable Types | EXT, UTL, Bristow |
| Assembly Length | 600 mm – 2500 mm or custom |
| Rated Load | Up to 100 lbs hold capacity |
| Environmental Rating | Outdoor / Vibration / Corrosive Tolerant |
Ordering Guidance
When specifying a Phidix Twist-Lock Cable Assembly, please confirm the following:
• Cable Length (L) – Total assembly length
• Stroke (S) – Actuation range required
• Core Type – Standard or wire rope
• Handle Type – Black/Red T-handle
• Shaft Sleeve Color – Green or Black
• Output End Style – U-fork, threaded, etc.
Need help choosing? Refer to our configuration pages or send us your drawing – we’ll match it.
Why Choose Phidix?
• Engineering Flexibility – We support unique configurations and small-batch customization.
• Automotive-Grade Manufacturing – Built under IATF 16949 guidelines.
• Rapid Prototyping Available – Short lead times for new applications.
• OEM Partnership Support – Serial labeling, packaging, and inventory programs.Backed by 15+ years of control cable engineering and ISO-certified manufacturing.
