| Brand Name: | PHIDIX |
| Model Number: | DC / DH |
| MOQ: | 10 Piece/Pieces |
| Price: | Negotiation |
| Payment Terms: | L/C,D/A,D/P,T/T |
| Supply Ability: | 888 Piece/Pieces per Month |
Product Description

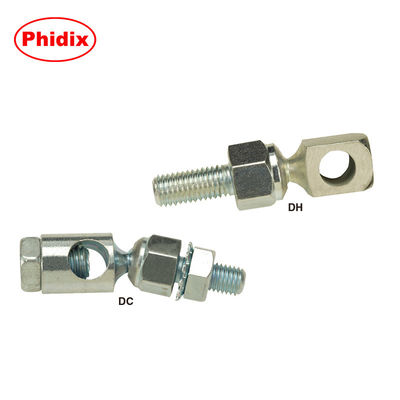

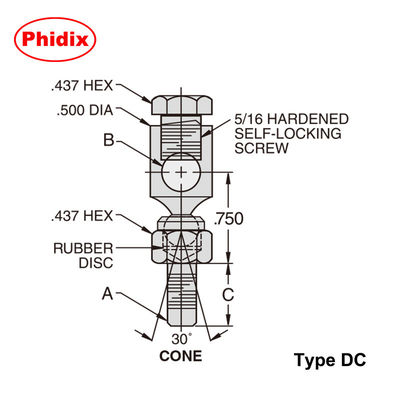

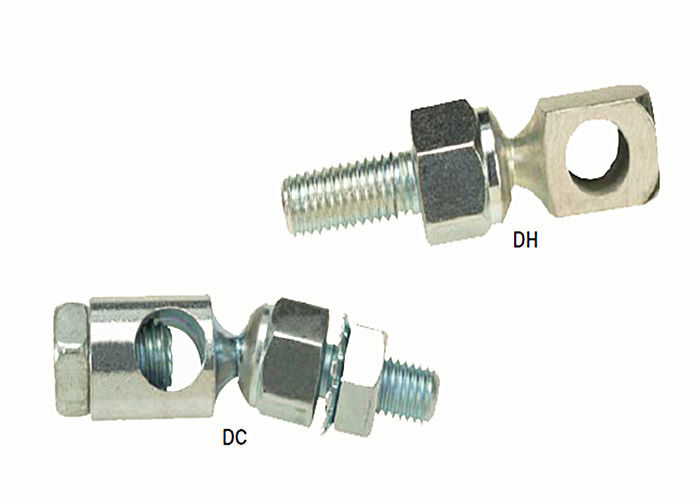

DC/DH Swivels provide infinite positional adjustment along connecting rods, ideal for precision control in low-load push systems. The Buna N rubber disc ensures vibration-damped operation and compensates for axial misalignment, enhancing durability in repetitive motion applications. Featuring a 5/16" hardened self-locking screw (DC Model), these swivels maintain secure positioning without secondary fastening. Available in multiple sizes and configurations, they integrate seamlessly with rod ends, spherical bearings, and ball joints for complete motion control solutions. Designed for industrial automation, this series prioritizes smooth operation and minimal maintenance in push-pull mechanisms.
Technical Parameters
| Product Name | DC/DH Control Swivels |
| Specification | Control Swivels |
| Material | Ball Joint Head and Base – • Low carbon steel • Zinc plated, clear chromate treated • Buna N rubber disc Self-locking screw – • Low carbon steel, heat treated • Zinc placed, clear chromate treated |
| Features |

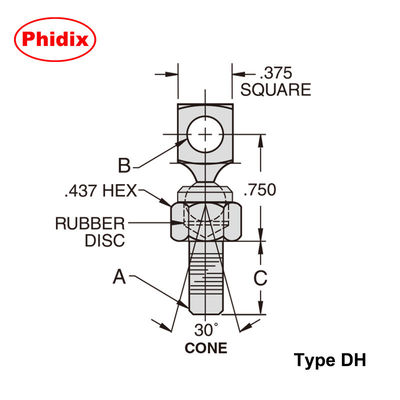

• Suited to low load applications where infinite adjustment is desired along the entire length of the connecting rod • Can be used with either 1/4" or 5/16" diameter control rods• Head size: DC — .500" round DH — .375" square • Special set screws (self-locking and surface hardened for wear resistance) provide increased holding strength • Integral nut and lock washer optionally available • Can be used in the wide range of temperatures:-60°F — 250°F (-51°C — 121°C) • Custom assemblies can be built to your specifications • DC style meets SAE specification J490(DC: Type DC, Style 1;DH does not meet J490 specs) |
| Brochure | Free samples are available if all sizes are the same as what we have available, if not, please contact me for a cost effective solution |
| Belivery Time | 7-40 working days |

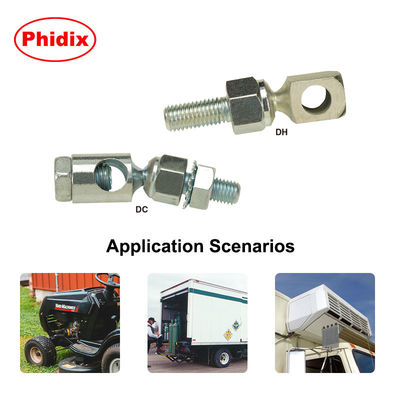

| Applications | Numerous low load mechanical motion transfer applications where infinite adjustment is desired, including: • HVAC • Linear controls • Light industrial applications |
| Documentation | DC-DH-Control-Swivels.pdf |
Chart Notes:
1. Swivels can be used with either 1/4" or 5/16" diameter control rods
2. DH Swivel Joint is available with an integral nut and lock washer to ease assembly. Specify by adding"N" to suffix. Example: DC1005FN
OEM/ODM
Production Process
Packing and Shipping
A.Packing
Usually according to the specific size of the product to arrange the packaging, small goods are packed in cardboard boxes, large goods are packed in cardboard boxes + wooden pallets, or one-piece paper pallets, if you have special needs, please contact us, we will try our best to serve you!
|
cardboard boxes (small goods) |
cardboard boxes+wooden pallets (large goods) |
one-piece paper pallets (large goods) |
|
|
|
B.Shipping
We have cooperated with the world's major logistics companies, you can choose the logistics mode that suits your needs, so that the goods can arrive within the specified time.
| Logistic Company | |
|
|
|
|
| Mode of Transportation | Land, sea and air transportation | ||||
C.Payment Methods
|
|
|
|
|
E-Checking |
Note:If you need another payment method, please contact us.
About us
Your Professional Control Cable Manufacturer!
Phidix Motion Controls (PMC) started the business in 2004,CMC Provides a diverse range of high-end drive control products and engineered solutions. The product line includes various sizes of control flex shafts, cab units and a range of standard parts for a wide range of high-end industrial customer markets.
| Why choose us | |
|
Patent Certificate |
Reasonable Prices |
|
The company's products have passed the IATF16949 patent certificate, which ensures the quality of the products. |
High quality + factory price + fast response+reliable service is what we try our best to provide for you. |
|
Rapid Delivery |
ODM/OEM |
|
We have all the styles you need in stock and can deliver on short notice. |
When you make a request, our engineers provide you with a faster and better solution based on your needs. |
FAQ
Q: How do you design control cables?
A: We must first understand your application and must consider many factors, such as length, outside diameter, working input force, maximum input force, travel, housing material, requirements for the wire rope, material of the terminal fittings (carbon steel or stainless steel), etc.
Q: How do I place my order?
A: We produce according to the specifications, drawings or samples provided by the customer.
Q: Is the quality of your product good? How can I trust you?
A: We are a professional manufacturer of wire assemblies with more than 10 years of production experience in China. We have been providing first-class service and quality products to make our customers successful. Please contact our sales department and let us know what we can do for you, trust us, we won't let you down.
Q: What is the lead time for my order?
A: This depends a lot on the size of your order. Usually 15 days. If you need it urgently, we will do our best to fulfill your request.
