Name: Twist Lock Push-Pull Control Cable–Position Locking Mechanical Remote Control Cable Assembly
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: Customized
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Handle Type:: Ergonomic Twist Lock T-Handle

Conduit Material:: Galvanized Armored Steel With Anti-Wear Protective Coating

Control Type:: Bidirectional Push-Pull Linear Control

Stroke Length:: Customized Stroke Travel Range

Cable Length:: Fully Customizable Per Application Demands

Locking Function:: 1/8 Turn Standard Locking, Custom Rotation Angle Available

Applications:: Construction Machinery, Commercial Vehicles, Agricultural Equipment, Marine Facilities, Etc

Mounting Type:: Threaded Bulkhead Fixed Mount, Flange Optional

Conduit Color:: Standard Black, Grey, Custom Green, Red And Other Colors

Operating Temperature:: -45°C To +125°C Extreme Temperature Resistance

Maximum Load:: Customized Based On Working Conditions

Optional Materials:: 304/316 Stainless Steel Inner Core, Anti-Corrosion Nylon Coated Conduit

Control Type: Push-Pull

Handle Type: Twist Lock Handle

Locking Function: 1/8 Turn Or Customized

Mounting Type: Threaded Bulkhead Mount

Conduit Material: Armored Steel With Protective Coating

Cable Length: Customizable

Stroke Length: Customizable

Maximum Load: Application-Dependent

Operating Temperature: -40°C To +120°C

Optional Materials: Stainless Steel Core, Corrosion-Resistant Conduit

Conduit Color: Grey, Black, Green

Applications: Commercial Trucks, Passenger Buses, Agricultural Machinery, Marine Vessels, Etc

Highlight:

Twist Lock control cable assembly

Push-Pull mechanical control cable

Position locking remote control cable

Basic Infomation

Place of Origin: Shanghai, China (Mainland)

Brand Name: PHIDIX

Certification: IATF16949, ISO9001

Model Number: Customized

Payment & Shipping Terms

Packaging Details: carton or wood case

Delivery Time: 7-40 work days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 888 Piece/Pieces per Month

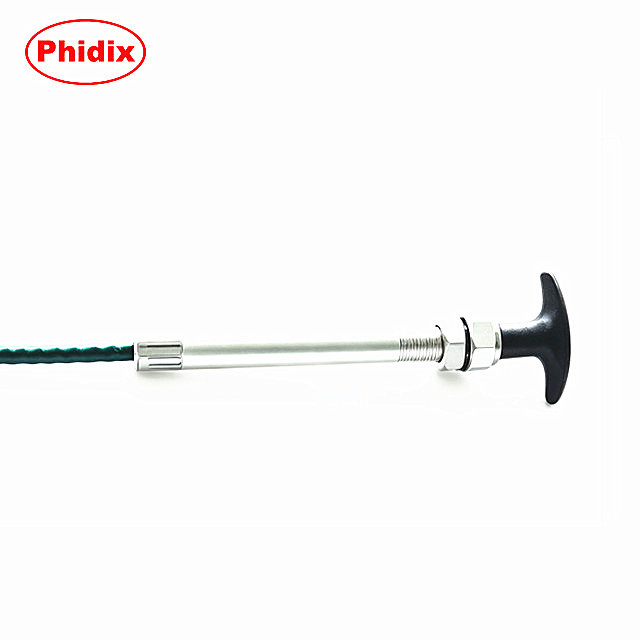

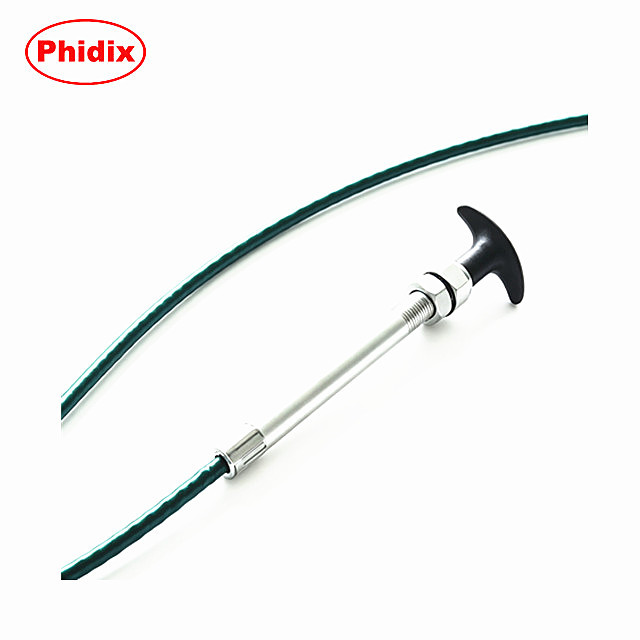

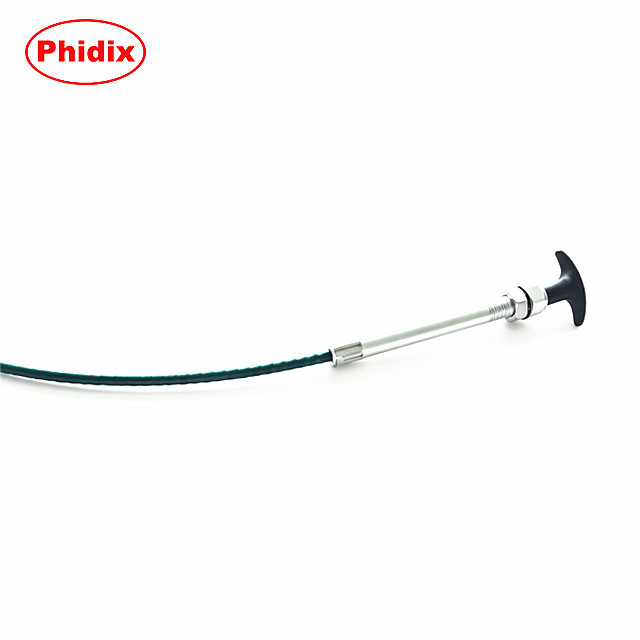

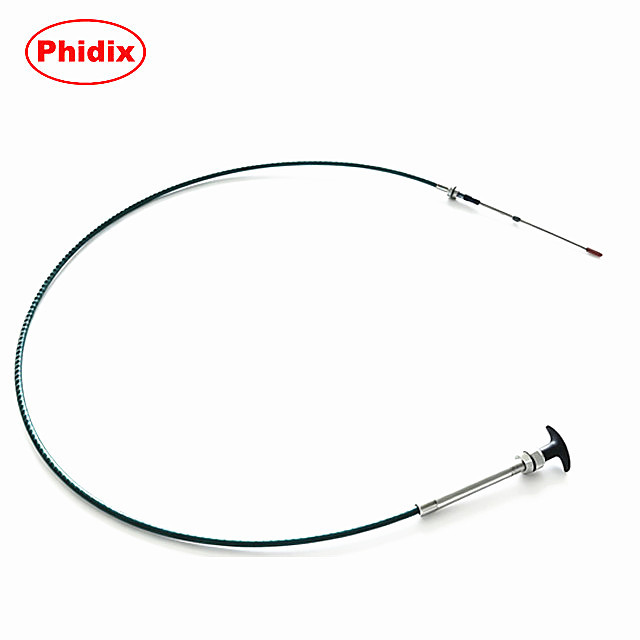

Gallery

Twist Lock Push-Pull Control Cable–Position Locking Mechanical Remote Control Cable Assembly

Product Description

Twist Lock Push-Pull Control Cable Assembly

The Phidix Twist Lock Push-Pull Control Cable is a high-reliability mechanical remote control solution engineered for precision positioning and fixed-position locking operation. This cable assembly integrates an ergonomic twist lock handle and heavy-duty threaded bulkhead mounting structure, enabling flexible manual push-pull linear adjustment and instant position locking.

Key Features

Secure Twist-Lock Mechanism: Locks the cable securely at required operating positions
Smooth Push-Pull Operation: Responsive linear motion with low backlash and consistent control feel
Threaded Bulkhead Mount: Stable and secure installation through control panels and equipment housings
Heavy-Duty Construction: Armored steel conduit and high-strength inner core for excellent durability
Flexible Routing: Accommodates complex routing paths and confined installation areas
Customizable Configuration: Tailored cable length, stroke, end fittings, locking angle, and materials
Wide Temperature Range: Suitable for demanding environments from -40°C to +120°C

Applications

Construction machinery and engineering equipment remote control systems
Commercial trucks, passenger buses and special modified vehicle control assemblies
Agricultural machinery, forestry equipment and field operation mechanical control units
Marine vessels, yacht equipment and offshore platform control systems
Industrial automated machinery, production line equipment and precision transmission mechanisms
Power generation units, energy equipment and power system control modules
Special engineering vehicles and customized defense mechanical devices

Working Principle

The Phidix Twist Lock Push-Pull Control Cable enables remote linear mechanical transmission through coordinated movement of the internal high-strength steel core and flexible armored outer conduit. In the unlocked state, operators can freely push or pull the twist lock handle to drive the inner cable core for linear displacement, precisely adjusting connected mechanical mechanisms. After reaching the target position, rotating the handle by 1/8 turn (customizable angle) activates the built-in precision locking mechanism to securely fix the cable core position. Reverse rotation quickly unlocks the cable for repeated position adjustments, providing flexible one-key locking and release operation.

Product Image
