Professional Control Cable With PTO Handle For Heavy Equipment And Utility Vehicles

Professional Control Cable With PTO Handle For Heavy Equipment And Utility Vehicles

【 Product Description 】

The control cable with PTO (Power Take-Off) Handle is a robust mechanical control system designed for precise and reliable remote operation of power-driven equipment. It combines a durable push-pull control cable with an ergonomically designed PTO engagement handle, enabling operators to smoothly engage or disengage mechanical power from the engine to auxiliary equipment.This cable assembly is engineered for high-performance environments such as agricultural, industrial, and construction machinery, offering dependable performance, corrosion resistance, and long service life even in harsh conditions.

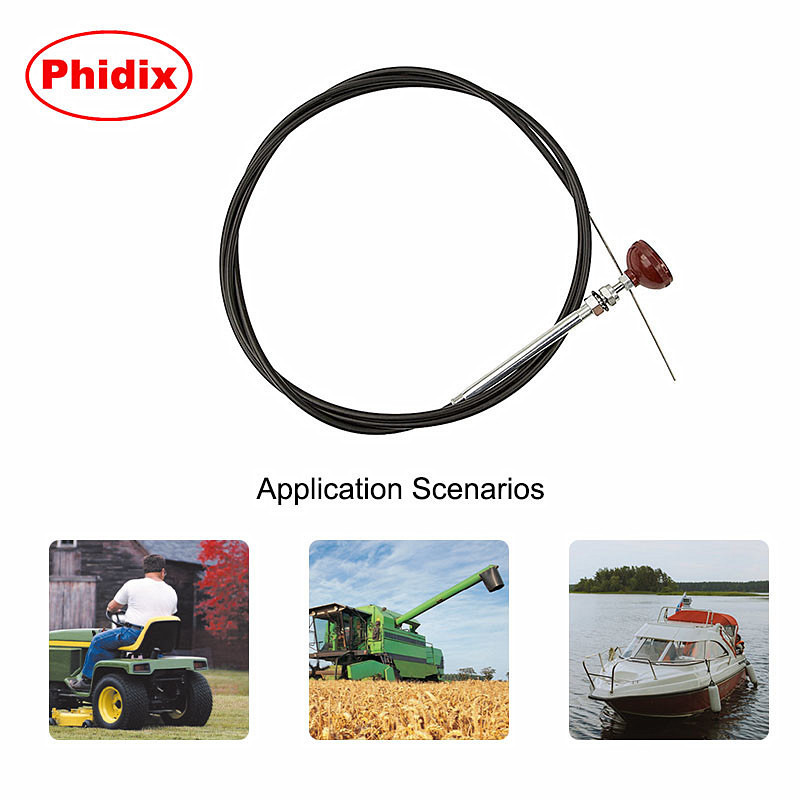

【 Applications 】

• Agricultural machinery: PTO engagement in tractors, harvesters, mowers, and balers

• Construction equipment: controlling auxiliary drives, hydraulic pumps, or attachments

• Industrial machinery: activating remote mechanical systems or safety locks

• Marine systems: PTO control for engine-driven pumps and auxiliary devices

• Utility vehicles: operating winches, generators, and power tools

【 Features 】

• Integrated PTO handle and control cable assembly for precise actuation

• Smooth and reliable operation under high load conditions

• High-tensile inner wire for maximum control accuracy

• Corrosion-resistant materials ideal for outdoor and marine use

• Wide range of lengths, mounting types, and handle options

• Ergonomic design for operator comfort and safety

【 Advantages 】

• Reliable Performance: stable and accurate power transfer control

• Durability: designed for long-term use in harsh environments

• Safety: allows remote and secure PTO engagement

• Versatility: compatible with a wide range of industrial and agricultural machinery

• Customizable: available in multiple configurations and lengths to meet user requirements

• Low Maintenance: smooth operation with minimal servicing needs

【 Working Principle 】

The control cable with PTO handle operates by converting the operator’s manual movement into mechanical actuation via a flexible push-pull cable. When the PTO handle is pulled or pushed, the inner wire transmits motion through the protective casing to the PTO clutch or valve. This movement engages or disengages the power output from the engine to external machinery (such as hydraulic pumps or implements). The flexible design allows the cable to route easily around obstacles, enabling safe and remote operation without sacrificing control accuracy.

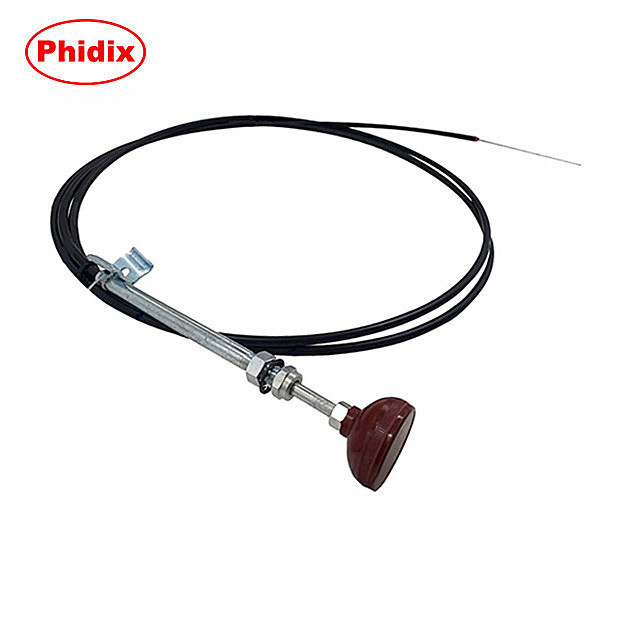

【 Real Picture 】
