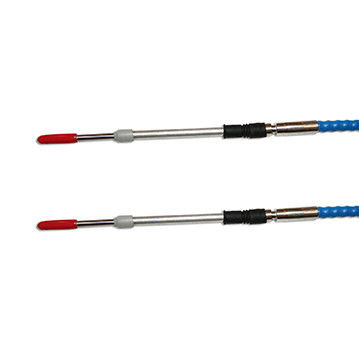

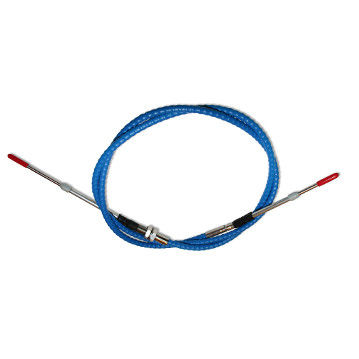

Blue Max™ High-Performance Control Cable
For Tight Routing, High Load, and Harsh Environments
Engineered for the most demanding applications, the Blue Max™ push-pull control cable delivers exceptional performance in routing-limited, high-temperature, and corrosive environments. With its ultra-flexible 4" minimum bend radius and low-friction PTFE lining, it enables smooth and reliable motion control where traditional cables fail.
Whether you're integrating into off-highway machinery, marine controls, or military-grade equipment, Blue Max™ ensures consistent motion, reduced backlash, and maximum service life — even under heavy load and extreme routing complexity.
Key Features at a Glance
| Feature |
Description |
| Min. Bend Radius |
4" (100mm) – Allows tight, multi-plane routing |
| Travel Capacity |
3" (76mm) push-pull stroke |
| Low-Friction Liner |
PTFE – For smoother actuation & reduced wear |
| Outer Jacket |
LDPE or Nylon 12 – For abrasion, UV & chemical resistance |
| Temperature Range |
-65°F to +300°F (-54°C to +149°C) |
| End Fittings |
Fully customizable – Swaged, threaded, clevis, bulkhead, etc. |
| Core Options |
Solid wire or 1x19/7x7 strands available per load/flex need |
| Jacket Color |
Signature Blue or Black (standard); other colors available on request |
| Branding |
Phidix logo embossed for authenticity |
When to Choose Blue Max™
Blue Max™ is not your typical control cable. It’s built for motion systems that:
• Require tight-radius bends without compromising stroke
• Operate in harsh conditions (heat, cold, vibration, fluids)
• Face high-duty cycles with thousands of repeated motions
• Demand ultra-low friction to prevent hand fatigue or actuation lag
Ideal industries:
Construction machinery, marine throttle systems, rail vehicles, mining equipment, emergency vehicle controls, and aerospace ground systems.
Cable Core:
The Blue Max™ control cable uses a stainless steel stranded core matched to its 3" stroke and 4" bend radius. The core slides within a PTFE liner, ensuring low-friction and extended service life under tight routing conditions.
Depending on application load and motion type, other strand constructions (e.g., solid wire or multi-strand) may be offered as part of OEM customization.
Conduit Construction:
• Inner tube: PTFE
• Reinforcement: steel wire or monocoil wrap
• Outer jacket: LDPE or Nylon, heat/chemical/UV-resistant
All interfaces swaged or threaded per spec, tested for stroke consistency, linear resistance, and end load capacity.
Custom Options for OEM Systems
We support full customization for:
• Travel length
• Cable housing length
• End termination types (threaded, clevis, trunnion, ball-joint)
• Mounting styles (bulkhead, panel)
• Stroke force optimization (by strand and liner selection)
For OEM developers, we offer 3D models, installation drawings, and engineering consultation — just send us your system schematic.
Phidix Quality Standards
Blue Max™ is manufactured under strict IATF 16949 and ISO 9001 standards. Each batch undergoes:
• Load stroke testing (0–3") under rated tension
• Friction & hysteresis coefficient check
• Salt spray test (up to 720h for marine use)
• Bend endurance simulation (10,000+ cycles)
Related Pages You Might Need
• Custom Control Cable Design for OEMs
• Push-Pull Inner Wire Core Options
• PTFE-Lined Cable Structures Explained
• Application Guide: Marine Throttle Systems
Ask Our Engineers
Not sure if Blue Max™ is the right cable for your system?
Send us your cable routing layout, load profile, and environment—we’ll help you validate selection and recommend best-matched specs.
