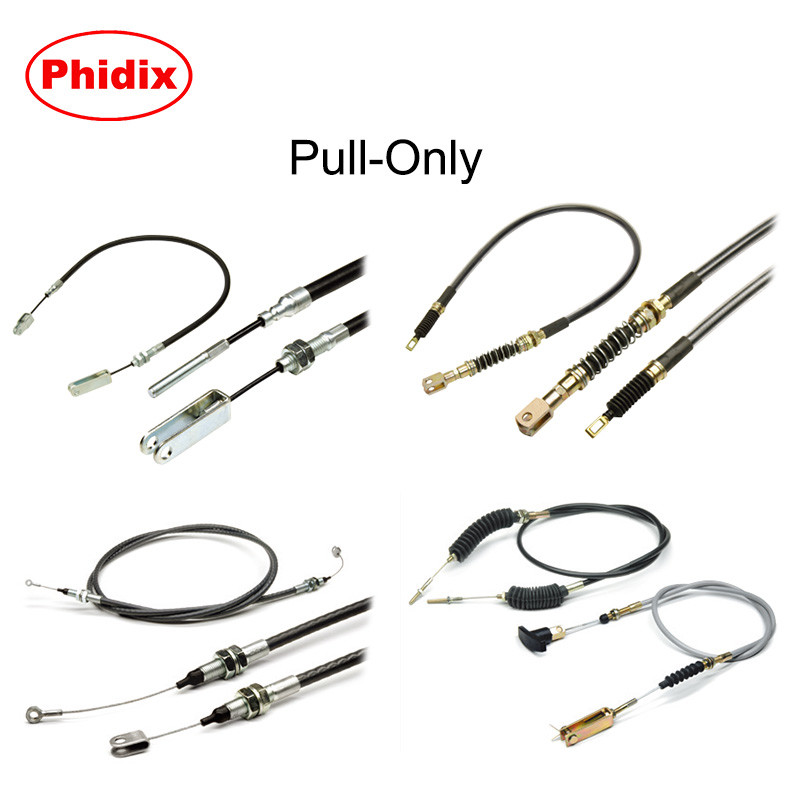

Phidix offers a complete line of pull-only mechanical control cables designed for high-precision, single-direction force transmission. Whether you're building a heavy-duty brake system, throttle control, or clutch actuation, our pull-only series provides the reliability, customization, and durability required across industries such as commercial vehicles, construction machinery, and industrial equipment.
| Series | Typical Applications | Max Load | Conduit Type | Inner Cable Type | Customizable Length | Compatible End Fittings |
| T-Flex | Clutch / Throttle / Brake / Stop Cable | Up to 1000 kg | Steel + PP/PVC cover | Multi-strand tinned steel | Yes | Clevis / Knob / Eye End |
| Tension | Seat release / Choke / Blade / Window | Medium load | Brass cap + sealed | Lubed for life | Yes | Threaded / Grooved / Special |
| Brake (1500/3000) | Parking brakes / Emergency brake systems | 1500 lb / 3000 lb | Plastic liner + steel | 1x19 or 1x37 strand steel | Yes | Strap clevis / Eye end |
| Clutch | Vehicle clutches (manual) / Off-road control | Medium load | Nylon-wrapped conduit | 7×7 galvanized wire | Yes | Ball / Clevis / Threaded end |
| Model Series | Core Cable Size | Bend Radius | Stroke Range | Backlash | Temperature Rang |
| T-Flex | 0.125" / 0.187" | ~4–5 inches | Customizable | ≤ 2 mm | -40°C ~ +105°C |
| Tension | Standard / Custom | ~3 inches | Standard (75mm+) | ≤ 2 mm | -30°C ~ +100°C |
| Brake 1500 | 0.125", 1x19 strand | 5 inches | Typical 6" | ≤ 1.5 mm | -40°C ~ +105°C |
| Brake 3000 | 0.187", 1x37 strand | 7 inches | Typical 6" | ≤ 1.5 mm | -40°C ~ +105°C |
| Clutch | Galvanized steel | ≤ 150 mm radius | 75mm and above | ≤ 1.5 mm | -30°C ~ +100°C |
| Use Case | Recommended Series | Notes |
| High load brake system (commercial) | Brake 3000 Series | For vehicles needing >2500 lb holding force |
| Compact throttle or stop cable | T-Flex | High flexibility & routing freedom |
| Interior latch / seat / window release | Tension | Economical, sealed, and pre-lubed |
| Manual clutch operation | Clutch Series | Designed for minimal backlash and accurate engagement |
Common End Fittings Used in Phidix Pull-Only Cable Assemblies
