Name: Tanker Control Shaft Specifications
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: BGTLL-X
Price: 500.00 USD
Availability: InStock

Tanker Control Shaft Specifications

10 piece

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Series: Stainless Steel Control Shafts

Material: 304/316 Stainless Steel, PTFE Film

Operating Force: Up To 500 Nm

Minimum Bend Radius: 3"

Stroke: ≤75MM

Temperature Range: -40°C ~ +120°C (-104°F ~ +248°F)

Highlight:

Tanker Control Shaft

Stainless Steel Tanker Control Shaft

Basic Infomation

Place of Origin: Shang Hai

Brand Name: Phidix

Certification: IATF16949

Model Number: BGTLL-X

Payment & Shipping Terms

Packaging Details: carton or wood case

Delivery Time: 7 - 40 work days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 800 pcs per month

Gallery

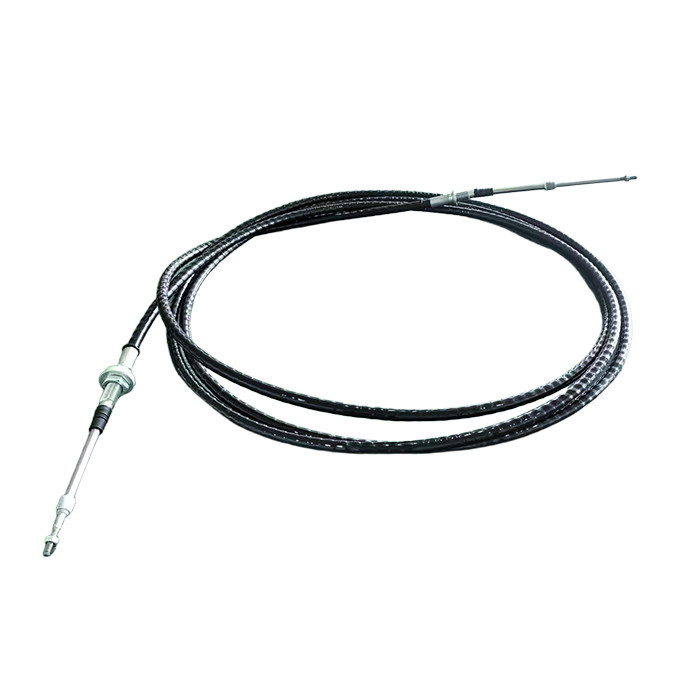

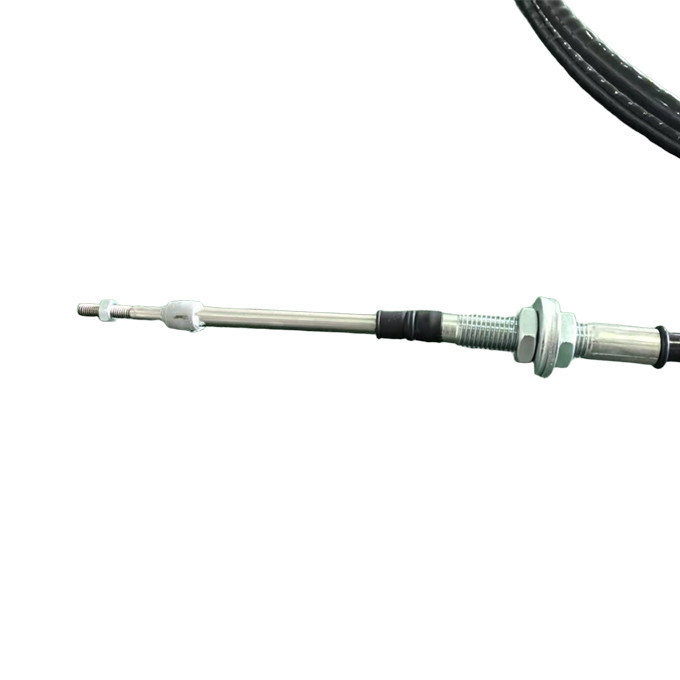

Tanker Control Shaft Specifications

Product Description

Technical Specifications – Stainless Steel Control Shaft for Tanker Systems (BGTLL-X)

The Phidix BGTLL-X stainless steel control shaft is specially designed for tanker trucks requiring safe and precise mechanical actuation. With 304/316 stainless steel construction, PTFE-coated components, and greasable end fittings, this shaft provides long-lasting performance in demanding environments—fuel, chemical, cryogenic, or sanitary.

Built for flexible routing, heavy-duty force transmission, and quick-connect maintenance, it’s ideal for OEM or retrofit configurations.

Key Specifications

Parameter	Specification
Model	BGTLL-X
Operating Force	Up to 500 Nm
Stroke Length	≥ 75 mm
Standard Shaft Length	3–6 m (extended available)
Minimum Bend Radius	3"
Backlash	≤ 2 mm
Material	304/316 stainless steel, PTFE film
Temperature Range	-40°C ~ +120°C (-104°F ~ +248°F)

Core Performance Advantages

• Corrosion Resistance – Ideal for fuels, chemicals, and food-grade use

• Minimal Backlash – Accurate valve/metering system control

• High Durability – Built for highway vibration and chemical washdown

• Easy Maintenance – Greasable fittings and fast disassembly

• Product Overview – Tanker Control Shaft →

• Applications in Tanker Vehicles →

• Contact Phidix for Custom Engineering Support →

Need Help Matching Shaft to Your System?

Submit your tanker layout, valve configuration, or load specs—our team will build a fully matched solution based on BGTLL-X structure and fittings.

Request Drawing or Quote →
